#91015692

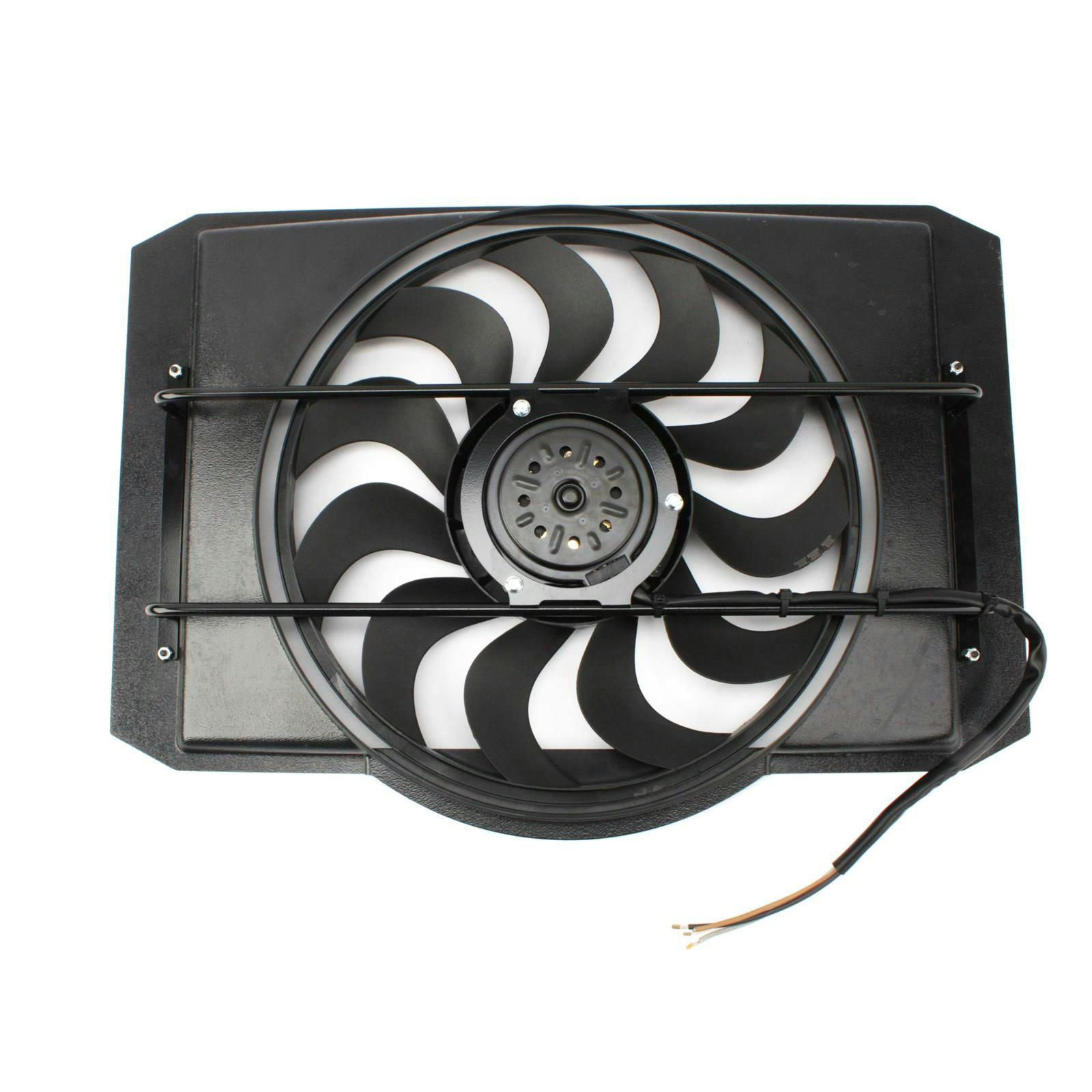

Cooling Components CCI-1790 Cooling Machine Electric Fan, Style 90
- This fan measures 26" wide x 16" high
- Constructed of high-impact ABS material
- Requires the use of a 70 amp or larger relay
$529.20
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Single Fan Quantity, Pull Fan Flow Type
- This fan measures 26" wide x 16" high
- Constructed of high-impact ABS material
- Requires the use of a 70 amp or larger relay
- Can be easily reduced in size to 23-5/8" wide x 15-1/4" high
- It saves horsepower by lowering the engine operating temperature
Key Specs
| Fan Diameter | 16 Inch |
| Maximum Fan CFM | 2500 CFM |
| Fan Flow Type | Pull |
| Rotation | Counterclockwise/Reverse |
| Blade Material | Plastic |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyCooling Components CCI-1790 Details
Cooling Components CCI-1790 Details
At one time or another we all have had a car overheat. The Ultimate Cooling Machine fan/shroud combos are just the ticket to avoid having it happen again. These 2500 CFM pull-type fans measure 2-5/8" deep at the motor, 2-3/8" at the mounting brackets and 1-1/2" at the high impact shroud.
- 26.00" wide x 16.00" high
- Can be easily reduced in size to 23-5/8" wide x 15-1/4" high
- 12 volt operation
- Lower engine operating temperatures
- Saves horsepower
- Better fuel mileage
- Constructed of high-impact ABS material
- Requires the use of a 70 amp or larger relay
- Relay and fan control sold separately
Learn more about the importance of using a fan shroud in our tech article, Fan Shrouds - A Critical Cooling System Component.
IMPORTANT:
All warranties and returns must be directed to Cooling Components, LLC as noted in the manufacturer's return policy found here:
Due to the manufacturer's policy, fans MAY NOT be returned to Speedway Motors and MUST be returned to Cooling Components, LLC in order to receive full credit.
Charts
Guides & Documents
Warranty Information
Click for details
Warranty Information
Click for details
Cooling Components CCI-1790 Specifications
Cooling Components CCI-1790 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | CCI-1790 |
| Brand | Cooling Components |
| Fan Diameter | 16 Inch |
| Maximum Fan CFM | 2500 CFM |
| Fan Flow Type | Pull |
| Rotation | Counterclockwise/Reverse |
| Blade Material | Plastic |
| Overall Width | 26.00" |
| Overall Height | 16.00" |
| Overall Thickness | 2.625" |
| Depth | 2.625" |
| GENERAL | |
| Fan Quantity | Single |
| Blade Style | Curved |
| Blade Count | 11-blade |
| Blade Finish | Natural |
| Blade Color | Black |
| Hub Material | Plastic |
| Hub Finish | Natural |
| Hub Color | Black |
| Voltage | 12 volts |
| Material Thickness | .17" |
| Hardware Included | Yes |
| Sold in Quantity | Each |
Ratings & Reviews
5
5 Reviews
Customers highly recommend Cooling Components fans due to their top-tier quality and high CFM rating of 2500 in a compact design, able to fit into tight spaces, notably between the radiator and water pump. These fans are recognized for being quiet and effective, even in challenging conditions like slow cruising on hot days. Users find these fans to be worth their price, significantly outperforming cheaper competitors in both performance and quality. They are especially appreciated for maintaining optimal engine temperature in various vehicle models, in spite of limited installation spaces. The fan also boasts a superior quality feel.
Ratings & Reviews
5
5 Reviews
Customers highly recommend Cooling Components fans due to their top-tier quality and high CFM rating of 2500 in a compact design, able to fit into tight spaces, notably between the radiator and water pump. These fans are recognized for being quiet and effective, even in challenging conditions like slow cruising on hot days. Users find these fans to be worth their price, significantly outperforming cheaper competitors in both performance and quality. They are especially appreciated for maintaining optimal engine temperature in various vehicle models, in spite of limited installation spaces. The fan also boasts a superior quality feel.
5
5 reviews
5
5
4
0
3
0
2
0
1
0
Filter by Ratings
Excellent Fan
5.0
7 years ago
Kevin W.
Lincoln, NE
Verified
Cooling Components fans are top of the line and high quality. This fan is very compact for the CFM rating of 2500 allowing fitment into tight spacing between radiator and water pump. Make sure to add a 70 amp relay to handle the amperage needed for fan start up.
Great product
5.0
7 years ago
Ken
Pa.
Verified
Good looking quiet works great
Would Recommend
Looks like it shouls be the right part
5.0
8 years ago
ZL1TPI
Quebec, Canada
Verified
I didn't install the item for now but I do know Cooling Components..... This is the third kit I will be installing... This car is Under construction so I can't tell for now but I'm confident of the quality... There are cheaper unit on the market but you have for what you pay for.... Recommended++++
Would Recommend
I can idle for hours!
5.0
11 years ago
dlove63
Pa
Verified
This fan not only cools my engine very well, but it fit into a very tight space that no other fan would fit. I struggled to find a fan and shroud I could make work, and I'm glad I found this setup.
Would Recommend
This fan kit really does the job!
5.0
12 years ago
Raggarkungen
Norway
Easily keeps my '65 Bonneville (389 V8) cool even when cruisin' at "walking speed" for hours on hot summer days - and nights. And it's not noisy at all. Super quality feel.
Would Recommend
Showing 5 of 5 reviews
