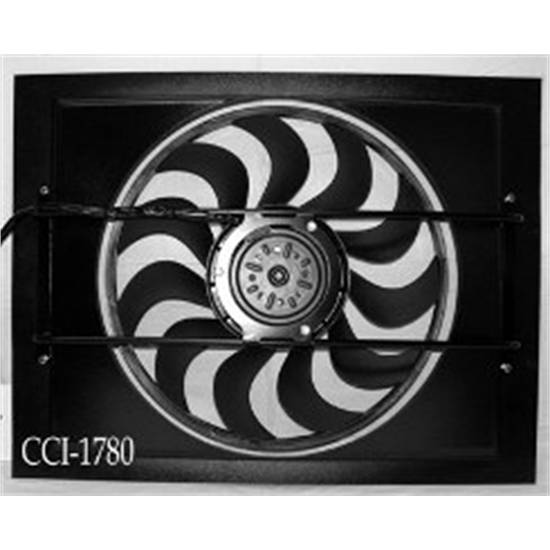

Cooling Components CCI-1780 Cooling Machine Electric Fan, Style 80
Cooling Components CCI-1780 Cooling Machine Electric Fan, Style 80
Chevy, Oldsmobile, Pontiac, Ford, Buick, Cadillac, Dodge, Electric Cooling Fan Type
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Cooling Components CCI-1780 Cooling Machine Electric Fan, Style 80
X
Part # 91015682
$375.00
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- It measures 26" wide x 20" high
- These pull-type fans have a 2500 CFM flow range
- Designed to be easily reduced in size to 23-1/4" wide x 18-1/2" high
- Will lower engine operating temperatures and provides better fuel mileage
- Works on a conventional 12V system and is constructed of high-impact ABS material
Details
Cooling Fan Type:
Electric
Fan Quantity:
Single
Fan Diameter:
16 Inch
Maximum Fan CFM:
2500 CFM
Fan Flow Type:
Pull
Rotation:
Counterclockwise/Reverse
Blade Style:
Curved
Blade Count:
11-blade
Blade Material:
Plastic
Blade Finish:
Natural
Blade Color:
Black
Hub Material:
Plastic
Hub Finish:
Natural
Hub Color:
Black
Voltage:
12 volts
Overall Width:
26.00"
Overall Height:
20.00"
Material Thickness:
.16"
Depth:
2.630"
Hardware Included:
Yes
MFG. Part #:
CCI-1780
Sold in Quantity:
Each
Info
At one time or another we all have had a car overheat. The Ultimate Cooling Machine fan/shroud combos are just the ticket to avoid having it happen again. These 2500 CFM pull-type fans measure 2-5/8" deep at the motor, 2-3/8" at the mounting brackets and 1-1/2" at the high impact shroud.
- 26" wide x 20" high
- Can be easily reduced in size to 23-1/4" wide x 18-1/2" high
- 12 volt operation
- Lower engine operating temperatures
- Saves horsepower
- Better fuel mileage
- Constructed of high-impact ABS material
- Requires the use of a 70 amp or larger relay
- Relay and fan control sold separately
Fan Vehicle Application Chart (GIF)
Learn more about the importance of using a fan shroud in our tech article, Fan Shrouds - A Critical Cooling System Component.
IMPORTANT:
All warranties and returns must be directed to Cooling Components, LLC as noted in the manufacturer's return policy found here: Cooling Components Return Policy (PDF)
Due to the manufacturer's policy, fans MAY NOT be returned to Speedway Motors and MUST be returned to Cooling Components, LLC in order to receive full credit.
Notes
- This fan has two speeds. It has two positive wires going to the motor, one is gray and one is white. If both recieve 12 volts, the fan will be on high speed. If only one recieves 12 volts, the fan will be on low speed. The black wire is ground.
- These fans draw 60+ amps on initial startup and have an operating amperage draw of 16-22 amps. Due to the high amperage these fans pull on initial startup, we highly recommend using 70 amp fan relays 910-51000 or 910-50051.
*Relay and fan control sold seperately.
