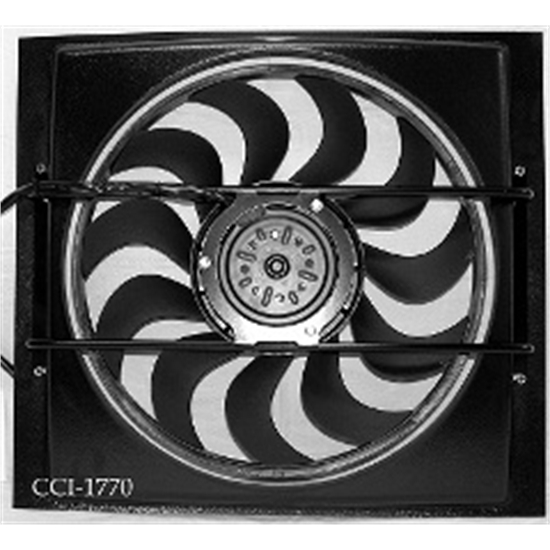

Cooling Components CCI-1770 Cooling Machine Electric Fan, Style 70

#91015672

Cooling Components CCI-1770 Cooling Machine Electric Fan, Style 70

Name: Cooling Components CCI-1770 Cooling Machine Electric Fan, Style 70
Brand: Cooling Components
SKU: 91015672
Price: 513 USD
Availability: InStock
Rating: 4.9 (10 reviews)

10 Reviews

5 Questions

Features common 12 volt operation
It is constructed of high-impact ABS material
Saves horsepower while increasing fuel mileage

Shroud Dimension (Width x Height):

20-7/16" x 20-1/2" (Style 70)

18-1/2" x 20-1/4" (Style 30)20" x 19" (Style 20)24-7/16" x 19" (Style 40)23-1/4" x 18-1/2" (Style 80)17-1/2" x 22-1/4" (Style 50)23-5/8" x 15-1/4" (Style 90)

$513.00

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Single Fan Quantity, Pull Fan Flow Type

Features common 12 volt operation
It is constructed of high-impact ABS material
Saves horsepower while increasing fuel mileage
Specifically built to lower engine operating temperatures
Measures 20.44" wide x 20.5" high but can be easily reduced in size to 19.88" wide x 18.5" high

See more details

Key Specs

Fan Diameter	16 Inch
Maximum Fan CFM	2500 CFM
Fan Flow Type	Pull
Rotation	Counterclockwise/Reverse
Blade Material	Plastic

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Electric Fans Installation Instructions (91015672)

How to Choose the Best Electric Radiator Fan | Size & Setup Guide

Installation Tips

This fan has two speeds. It has two positive wires going to the motor, one is gray and one is white. If both recieve 12 volts, the fan will be on high speed. If only one recieves 12 volts, the fan will be on low speed. The black wire is ground.
These fans draw 60+ amps on initial startup and have an operating amperage draw of 16-22 amps. Due to the high amperage these fans pull on initial startup, we highly recommend using 70 amp fan relays 910-51000 or 910-50051.

*Relay and fan control sold seperately.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Cooling Components CCI-1770 Details

At one time or another we all have had a car overheat. The Ultimate Cooling Machine fan/shroud combos are just the ticket to avoid having it happen again. These 2500 CFM pull-type fans measure 2-5/8" deep at the motor, 2-3/8" at the mounting brackets and 1-1/2" at the high impact shroud.

20.50" wide x 20.50" high
Can be easily reduced in size to 20.00" wide x 18.5" high
12 volt operation
Lower engine operating temperatures
Saves horsepower
Better fuel mileage
Constructed of high-impact ABS material
Requires the use of a 70 amp or larger relay
Relay and fan control sold separately

Learn more about the importance of using a fan shroud in our tech article, Fan Shrouds - A Critical Cooling System Component.

IMPORTANT:

All warranties and returns must be directed to Cooling Components, LLC as noted in the manufacturer's return policy found here:

Due to the manufacturer's policy, fans MAY NOT be returned to Speedway Motors and MUST be returned to Cooling Components, LLC in order to receive full credit.

Charts

Installation and Wiring Instructions (PDF)

Fan Vehicle Application Chart (GIF)

Cooling Components Return Policy (PDF)

Guides & Documents

Electric Fans Installation Instructions (91015672)

Electric Fans Technical Information (91015672)

Electric Fans Warranty (91015672)

How to Choose the Best Electric Radiator Fan | Size & Setup Guide

Warranty Information

Speedway Motors cannot facilitate the return of defective Cooling Components products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Cooling Components at 1-901-336

Cooling Components CCI-1770 Specifications

KEY SPECS
MFG. Part #	CCI-1770
Brand	Cooling Components
Fan Diameter	16 Inch
Maximum Fan CFM	2500 CFM
Fan Flow Type	Pull
Rotation	Counterclockwise/Reverse
Blade Material	Plastic
Overall Width	20.50"
Overall Height	20.50"
Overall Thickness	2.625"
Depth	2.625"

GENERAL
Fan Quantity	Single
Blade Style	Curved
Blade Count	11-blade
Blade Finish	Natural
Blade Color	Black
Hub Material	Plastic
Hub Finish	Natural
Hub Color	Black
Voltage	12 volts
Material Thickness	.15"
Minimum Height	18.50"
Minimum Width	19.88"
Hardware Included	Yes
Sold in Quantity	Each

Ratings & Reviews

4.9

10 Reviews

Overall Assessment

Customers repeatedly highlight the fan's easy installation, even in customized vehicles like street rods. Its powerful airflow receives frequent applaud, contributing to excellent cooling capability which is particularly noted in city traffic conditions. This attribute surpasses consumer expectations. Quality is consistently brought up, with one user noting "quality isn't cheap", implying its high value despite the cost. Users often compare it favorably to other brands seen in high-end cars and have expressed intentions to purchase again for future builds. However, it necessitates a strong alternator (100 amp or better) and increased wiring size.

Write A Review

4.9

10 reviews

Filter by Ratings

Sort Reviews

Costly but a great product

4.0

2 years ago

Fan

Las Vegas, NV

Verified

This 2 speed fan with a beautiful shroud comes in so many sizes that you're bound to get the right fit for your cars radiator

Would Recommend

Easiest fan install I've ever done on any of my street rods

5.0

5 years ago

Speedy

Lockwood, Missouri

Verified

Mild S/B Chevy 51 pickup street rod. Great in city traffic w/air on. I just use the high side power of fan. No complaints 1500 miles

Would Recommend

This product has surpassed our expectations

5.0

5 years ago

zack

Houma, La.

Verified

The fan was easy to set up and the cfm is powerful enough to keep engine cool. That's what we were looking for!

Would Recommend

Yes

5.0

8 years ago

1954 Chevrolet

Weatherford, TX

Verified

Installed and operating. The fan operating is quiet

Would Recommend

Best fan I have used

5.0

8 years ago

Street rods forever

Middle Tn

Verified

I have had numerous hot and street rods with different fan setups but cooling conponients fans seam to be the best cooling overall. If you look at local shows aND cruise in,s and look at the better build cars and trucks, you will notice most have this brand fan. I have one on my 38 ls powered coupe and it does the job. I am currently building a 48 chevy coupe with a 454 and that is what I am installing in it as well. They are not cheap, but quality ins't cheap!

Would Recommend

yes

5.0

8 years ago

steveo

Verified

put on 1940 ford truck fitment war great

Would Recommend

I would buy this product again

5.0

9 years ago

George

Raleigh, NC

Verified

I ordered the wrong size fan. My mistake.

Very impressed with this product

5.0

9 years ago

Richard

Wichita ks

Verified

Moves great amounts of air. Only caution is the need of 100 amp or better alternator and increase size of wiring.

Would Recommend

cooling components fan

5.0

11 years ago

I have no nick name

Olympia Wa.

Verified

Works great moves a LOT of air

Would Recommend

Great Product

5.0

12 years ago

DaveB

Indianapolis, IN, USA

Verified

I purchased this fan to go along with my new Walker radiator installed in my 1948 Chevy car. The fan fit the radiator perfectly after doing some trimming of the plastic frame. These fans are a very quality setup and I would recommend the fan to others.

Would Recommend
