#9300108S

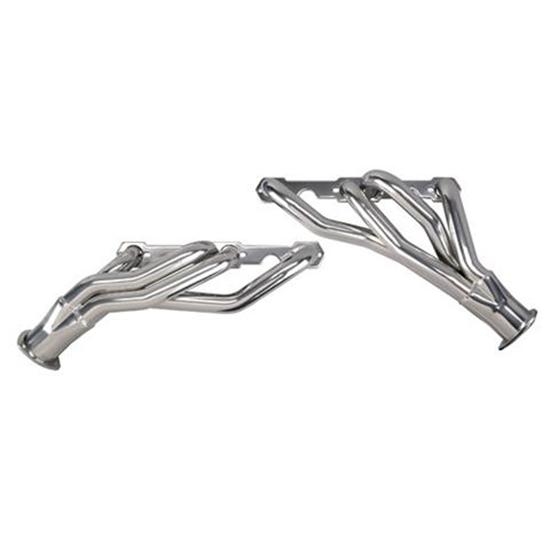

Small Block Chevy Clipster Headers, Stainless
5 Reviews
|
7 Questions
- For '64-'87 A, F & G-body GM cars and fits many street rod applications
- 1 5/8" primaries and 3" collectors
- Ok for most angle plug heads
See More
$381.99
set
In Stock
$392.00
Save $10.01
Garage Sale alternatives: from $343.99
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chevy Small Block V8, Mid-Length Header Tube Type
- For '64-'87 A, F & G-body GM cars and fits many street rod applications
- 1 5/8" primaries and 3" collectors
- Ok for most angle plug heads
See more details
Key Specs
Header Tube Type | Mid-Length |
Finish | Polished |
Flange Style | Standard |
Primary Tube Diameter | 1-5/8" |
Material Type | Stainless Steel |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9300108S Details
Speedway Motors 9300108S Details
These S/B Chevy Clipster headers are for 1964-87 GM A*, F* and G-Body cars and fit many street rod applications with uni-body front clip suspensions. Clipster headers use longer primaries than Tight Tucks, yet shorter than full length headers. Collectors exit toward the rear of the engine compartment providing excellent ground clearance on "slammed" applications as well as clearing steering and suspension components.
1-5/8" primaries and 3" collectors. Fits straight or angle plug heads.
* See NOTES tab for chassis fittment details.
NOTE: Stainless header tubing when exposed to exhaust temperature will cause the finish to change color which will vary with the exhaust temperature. Please note that the finish of the header when the engine is started, will change to a light champagne color to a darker gold finish and in some instance may even turn dark blue or purple. This can be polished back out when utilizing Blue-away or Simi-chrome polish, but please note that when the headers reach running temperature again, they will immediately change color.
Application
Applications include, but not limited to:
- 1967-1981 Camaro
- 1968-1981 Chevelle, Malibu
- 1964-1988 El Camino
- 1968-1979 Nova
- 1970-1988 Monte Carlo
Charts
Header Sizing Chart (GIF)
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Speedway Motors 9300108S Specifications
Speedway Motors 9300108S Specifications
KEY SPECS | |
---|---|
MFG. Part # | 9300108S |
Brand | Speedway Motors |
Header Tube Type | Mid-Length |
Finish | Polished |
Flange Style | Standard |
Primary Tube Diameter | 1-5/8" |
Material Type | Stainless Steel |
Color | Natural |
Weld-Up | No |
Exhaust Port Shape | Round |
Collector Diameter | 3 Inch |
Hardware Included | Yes |
Gasket(s) Included | Yes |
Collector Attachment Type | 3-bolt flange |
Collector Reducers Included | No |
GENERAL | |
Overall Height | 16" |
Collector Length | 5" |
Flange Thickness | .38" |
Port Height | 1.72" |
Port Width | 1.38" |
Header Dimension A | 4.00" |
Header Dimension B | 16.00" |
Header Dimension C | 25.00" |
Drivers Side Dimension A | 6.13" |
Drivers Side Dimension B | 13.5" |
Drivers Side Dimension C | 23" |
Passenger Side Dimension A | 4.85" |
Passenger Side Dimension B | 11.3" |
Passenger Side Dimension C | 26.38" |
Sold in Quantity | Pair |
