Part # 9300108H
Small Block Chevy Clipster Headers, AHC Coated
by
7 Reviews
|
9 Questions
- For '64-'87 A, F & G-body GM cars and fits many street rod applications
- 1 5/8" primaries and 3" collectors
- Ok for most angle plug heads
See More
$411.99
set
In Stock
$445.00
Save $33.01
Order soon, only 3 left in stock!
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chevy Small Block V8, Mid-Length Header Tube Type
- For '64-'87 A, F & G-body GM cars and fits many street rod applications
- 1 5/8" primaries and 3" collectors
- Ok for most angle plug heads
See more details
Key Specs
| MFG. Part # | 9300108H |
| Brand | Speedway Motors |
| Header Tube Type | Mid-Length |
| Finish | Ceramic Coated |
| Material Type | Steel |
See more specs
Need To Know
This Product Will Ship Free
Quick and Easy Returns
Details
Details

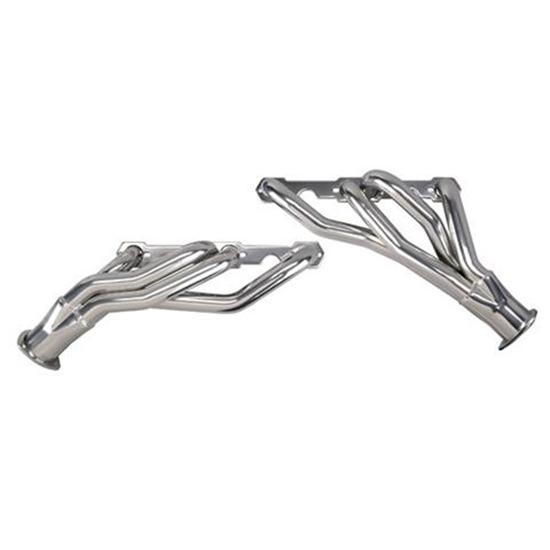

These S/B Chevy Clipster headers are for 1964-87 GM A*, F* and G-Body cars and fit many street rod applications with uni-body front clip suspensions. Clipster headers use longer primaries than Tight Tucks, yet shorter than full length headers. Collectors exit toward the rear of the engine compartment providing excellent ground clearance on "slammed" applications as well as clearing steering and suspension components. These ceramic coated headers provide superior performance and durability.
1-5/8" primaries and 3" collectors. Fits straight or angle plug heads.
* See NOTES tab for chassis fittment details.
Application
Applications include, but not limited to:
- 1967-1981 Camaro
- 1968-1981 Chevelle, Malibu
- 1964-1988 El Camino
- 1968-1979 Nova
- 1970-1988 Monte Carlo
Charts
Header Sizing Chart (GIF)
Warranties
AHC Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.
Not legal for sale or use in California on pollution controlled vehicles
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9300108H |
| Brand | Speedway Motors |
| Header Tube Type | Mid-Length |
| Finish | Ceramic Coated |
| Material Type | Steel |
| GENERAL | |
| Flange Style | Standard |
| Primary Tube Diameter | 1-5/8" |
| Color | Silver |
| Weld-Up | No |
| Exhaust Port Shape | Round |
| Overall Height | 16" |
| Collector Diameter | 3 Inch |
| Collector Length | 5" |
| Flange Thickness | .38" |
| Port Height | 1.72" |
| Port Width | 1.38" |
| Header Dimension A | 4.00" |
| Header Dimension B | 16.00" |
| Header Dimension C | 25.00" |
| Drivers Side Dimension A | 6.13" |
| Drivers Side Dimension B | 13.50" |
| Drivers Side Dimension C | 23.00" |
| Passenger Side Dimension A | 4.85" |
| Passenger Side Dimension B | 11.30" |
| Passenger Side Dimension C | 26.38" |
| Hardware Included | Yes |
| Gasket(s) Included | Yes |
| Sold in Quantity | Pair |
| Collector Attachment Type | 3-bolt flange |
| Collector Reducers Included | No |
