Part # 9300108

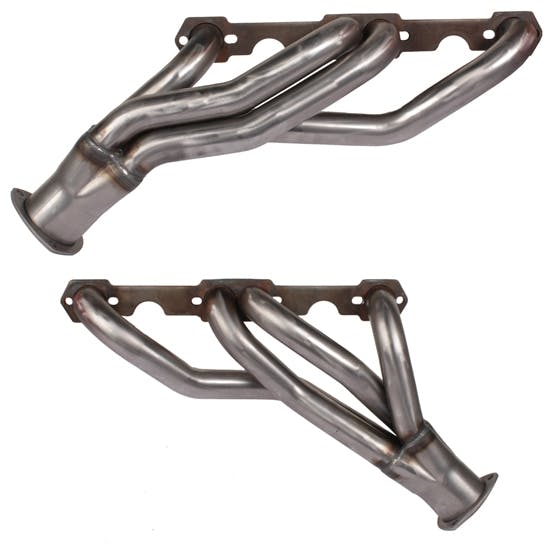

Small Block Chevy Clipster Headers, Raw Finish
by
Speedway Motors5 Reviews
|
23 Questions
- Complete with reducers, gaskets and bolts
- Choose Raw, Black, Armor hot coat or stainless steel
- Fits straight or angle plug heads.
See More
$189.90
set
In Stock
$356.00
Save $166.10
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
267, 283, 305, 307, 327, 350, 400, Raw, Steel, Natural
- Complete with reducers, gaskets and bolts
- Choose Raw, Black, Armor hot coat or stainless steel
- Fits straight or angle plug heads.
See more details
Key Specs
MFG. Part # | 9300108 |
Brand | Speedway Motors |
Header Tube Type | Mid-Length |
Finish | Raw |
Material Type | Steel |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
These S/B Chevy Clipster headers are for 1964-87 GM A*, F* and G-Body cars and fit many street rod applications with uni-body front clip suspensions. Clipster headers use longer primaries than Tight Tucks, yet shorter than full length headers. Collectors exit toward the rear of the engine compartment providing excellent ground clearance on "slammed" applications as well as clearing steering and suspension components.
1-5/8" primaries and 3" collectors. Fits straight or angle plug heads.
WARNING: This header will require the use of Autolite 'short' style spark plugs OR NGK BR8ECM type plugs to be used for clearance purposes. No other plugs or shorty plugs offered other than Autolite branded 'shorty' plugs will clear.
Application
Applications include, but not limited to:
- 1967-1981 Camaro
- 1968-1981 Chevelle, Malibu
- 1964-1988 El Camino
- 1968-1979 Nova
- 1970-1988 Monte Carlo
Charts
Header Sizing Chart (JPG)
Specs
- Will not work with D-port heads
- May interfere with mechanical clutch
- Will not fit with Saginaw Close Ratio 825 Steering Box
- Does not fit 1967-69 Camaro with A/C
- Will fit Detroit Speed & Engineering front subframes with rack and pinion steering
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Specifications
Specifications
KEY SPECS | |
---|---|
MFG. Part # | 9300108 |
Brand | Speedway Motors |
Header Tube Type | Mid-Length |
Finish | Raw |
Material Type | Steel |
GENERAL | |
Flange Style | Standard |
Primary Tube Diameter | 1-5/8" |
Color | Natural |
Weld-Up | No |
Exhaust Port Shape | Round |
Overall Height | 16" |
Collector Diameter | 3 Inch |
Collector Length | 5" |
Flange Thickness | .38" |
Port Height | 1.72" |
Port Width | 1.38" |
Header Dimension A | 4.00" |
Header Dimension B | 16.00" |
Header Dimension C | 25.00" |
Drivers Side Dimension A | 6.13" |
Drivers Side Dimension B | 13.50" |
Drivers Side Dimension C | 23.00" |
Passenger Side Dimension A | 4.85" |
Passenger Side Dimension B | 11.30" |
Passenger Side Dimension C | 26.38" |
Hardware Included | Yes |
Gasket(s) Included | Yes |
Sold in Quantity | Set |
Collector Attachment Type | 3-bolt flange |
Collector Reducers Included | No |
