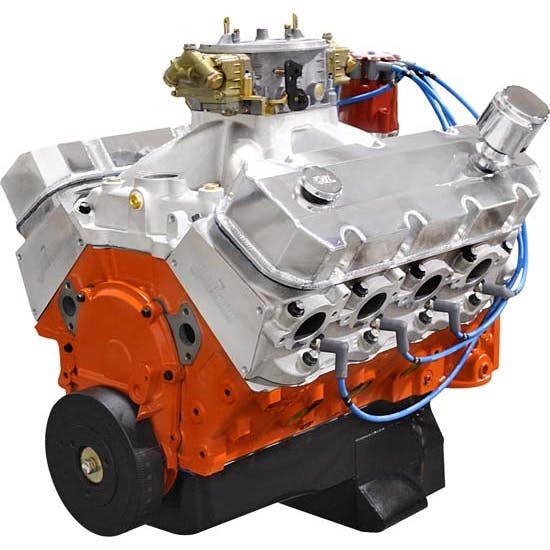

BluePrint PS6320CTC Chevy 632 Pro Series, Dressed Engine, Alum Heads
Base Dressed (632 c.i.) - EFIDeluxe Dressed (572 c.i.) - Black Pulley KitDeluxe Dressed (572 c.i.) - Polished Pulley Kit Deluxe Dressed (598 c.i.) - Black Pulley KitDeluxe Dressed (598 c.i.) - Polished Pulley KitLong Block (632 c.i.)
$17,149.00
each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select an engine to verify Fitment
Select Engine
Key Specs
Crate Engine Type | Long Block |
Engine Displacement | 632 cu. in. |
Horsepower | 815 horsepower |
Compression Ratio | 10.8:1 |
Torque | 800 ft./lbs. |
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBluePrint Engines PS6320CTC Details
BluePrint Engines PS6320CTC Details
True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!
Chevy 632 Pro Series - Dressed Engine - Aluminum Heads - Roller Cam
Overview
- HP & Torque: 815 HP / 800 FT LBS
- Compression Ratio: 10.0:1
- Aluminum Heads
- Forged Pistons
- Roller Cam
- Forged Crank
- Part #: PS6320CTC
Block
- BluePrint Engines new block casting - tall deck
- 4 bolt main
- 4.600" bore
Rotating Assembly
- Forged crank
- 4.750" stroke
- Forged rods
- Forged pistons
- Hydraulic roller cam
Cylinder Heads
- Aluminum, 119cc chamber
- Comp cam pushrods
- Comp cam rocker arms
- Melling oil pump
Cam Specs
- Cam Type: Roller
- .647 Intake .647 Exhaust
- 258 Intake / 266 Exhaust duration
- @ .050 - 112 degree lobe separation
Also Includes
- 1050cfm Holley carb
- Aluminum, single plane intake manifold
- MSD Pro Billet distributor
- Valve covers, oil pan and timing cover
- Spark plugs
- MSD spark plug wires
- Harmonic balancer
- Dyno test results shipped with engine
Warranty
- 30 month / 50,000 mile
Notes
Not for use in pollution controlled vehicles.Charts
Warranty Information (PDF)
Guides & Documents
Warranty Information
Click for details
Warranty Information
Click for details
Warranty Information (PDF)
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
BluePrint Engines PS6320CTC Specifications
BluePrint Engines PS6320CTC Specifications
KEY SPECS | |
---|---|
MFG. Part # | PS6320CTC |
Brand | BluePrint Engines |
Crate Engine Type | Long Block |
Engine Displacement | 632 cu. in. |
Horsepower | 815 horsepower |
Compression Ratio | 10.8:1 |
Torque | 800 ft./lbs. |
Camshaft Type | Hydraulic Roller Tappet |
Cylinder Head Material | Aluminum |
Piston Material | Forged Aluminum |
Crankshaft Material | Forged Steel |
Camshaft Duration (.050 in) | 272° intake / 282° exhaust |
Camshaft Lift (in) | .698 intake / .698 exhaust |
Bore x Stroke (in) | 4.600" x 4.750" |
Carburetor Included | Yes |
Intake Manifold Included | Yes |
Distributor Included | Yes |
Connecting Rod Material | Forged Steel |
Valve Covers Included | Yes |
Cylinder Heads Included | Yes |
Rear Main Seal Style | 1-piece |
Oil Pan Included | Yes |
Timing Cover Included | Yes |
Water Pump Included | No |
Harmonic Balancer Included | Yes |
Flexplate Included | No |
Flywheel Included | No |
Air Cleaner Included | No |
Spark Plugs Included | Yes |
Spark Plug Wires Included | Yes |
GENERAL | |
Warranty | 30 month / 50,000 miles |
Assembled | Yes |
Camshaft Included | Yes |
Block | 4 bolt main |
Notes | New BluePrint block manufactured and machined in the USA. Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR |
