Deluxe Crate Engine Crate Engine Type, Oil Pan Included
| Crate Engine Type | Deluxe Crate Engine |
| Compression Ratio | 10.0:1 |
| Engine Displacement | 572 cu. in. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
Made to Order
This custom item will ship when completed
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return Policy
572 CI ProSeries Stroker Crate Engine | Big Block GM Style | BBC | Drop In Ready - Polished
HP & Torque: 745 HP / 710 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons
BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.500"
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Tall Deck
ROTATING ASSEMBLY:
New BluePrint Forged Crankshaft
4.500" Stroke
Forged H-beam 6.535" connecting rods
Forged Pistons
Internal
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -PS8013
119cc chamber
2.30" intake/1.88" exhaust valves
316cc intake/124cc exhaust runners
CAM SPECS:
Cam Type: Roller
.647 Intake .647 Exhaust
254 Intake / 262 Exhaust duration
@ .050 - 112 degree lobe separation
ALSO INCLUDES:
Polished Pulley kit
1250cfm carb
Aluminum, single plane intake manifold
MSD Pro Billet distributor
Valve covers, oil pan and timing cover
spark plugs
Spark plug wires
Harmonic balancer

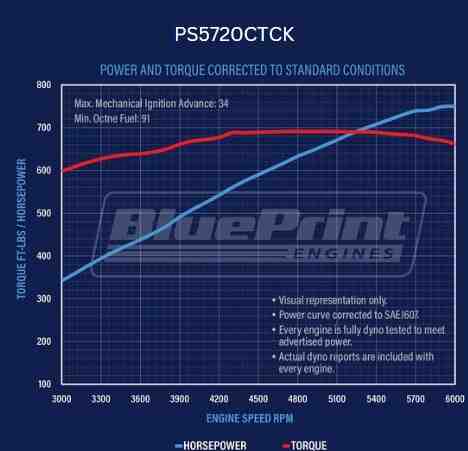

Dyno test results shipped with engine
*Not for use in pollution controlled vehicles.*
Charts
Guides & Documents
Follow EPA, CARB, and state regulations for engine changes
WARNING:
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | PS5720CTCK |
| Brand | BluePrint Engines |
| Crate Engine Type | Deluxe Crate Engine |
| Compression Ratio | 10.0:1 |
| Engine Displacement | 572 cu. in. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Forged Aluminum |
| Crankshaft Material | Forged Steel |
| Carburetor Included | Yes |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Connecting Rod Material | Forged Steel |
| Valve Covers Included | Yes |
| Engine Balance | Internal |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Timing Cover Included | Yes |
| Oil Pan Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | No |
| GENERAL | |
| Horsepower | 750 horsepower |
| Combustion Chamber Volume | 119cc |
| Camshaft Duration (.050 in) | 254° intake / 262° exhaust |
| Camshaft Lift (in) | .698 intake / .698 exhaust |
| Bore x Stroke (in) | 4.500" x 4.500" |
| Warranty | 30 month / 50,000 miles |
| Assembled | Yes |
| Camshaft Included | Yes |
| Block | 4 bolt main |
