Product Summary

Deluxe Crate Engine Crate Engine Type, Oil Pan Included

  • HP & Torque: 745 HP / 710 FT LBS
  • Compression Ratio: 10.0:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Forged Crank & Pistons
See more details

Key Specs

Crate Engine TypeDeluxe Crate Engine
Compression Ratio10.0:1
Engine Displacement572 cu. in.
Camshaft TypeHydraulic Roller
Cylinder Head MaterialAluminum
See more specs

Need To Know

Made to Order

This custom item will ship when completed

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Quick and Easy Returns

Return Policy

BluePrint Engines PS5720CTCKB Details



572 CI ProSeries Stroker Crate Engine | Big Block GM Style | BBC | Drop In Ready - Black

  • HP & Torque: 745 HP / 710 FT LBS

  • Compression Ratio: 10.0:1

  • Aluminum Heads

  • Hydraulic Roller Cam

  • Forged Crank

  • Forged Pistons


BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.500"
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Tall Deck

ROTATING ASSEMBLY:
New BluePrint Forged Crankshaft
4.500" Stroke
Forged H-beam 6.535" connecting rods
Forged Pistons
Internal

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -PS8013
119cc chamber
2.30" intake/1.88" exhaust valves
316cc intake/124cc exhaust runners

CAM SPECS:
Cam Type: Roller
.647 Intake .647 Exhaust
254 Intake / 262 Exhaust duration
@ .050 - 112 degree lobe separation


ALSO INCLUDES:
Polished Pulley kit
1250cfm carb
Aluminum, single plane intake manifold
MSD Pro Billet distributor
Valve covers, oil pan and timing cover
spark plugs
Spark plug wires
Harmonic balancer
Dyno test results shipped with engine


*Not for use in pollution controlled vehicles.*

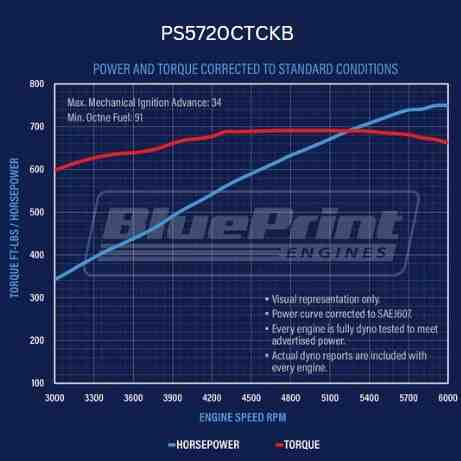

Charts

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

BluePrint Engines PS5720CTCKB Specifications

KEY SPECS
MFG. Part #PS5720CTCKB
BrandBluePrint Engines
Crate Engine TypeDeluxe Crate Engine
Compression Ratio10.0:1
Engine Displacement572 cu. in.
Camshaft TypeHydraulic Roller
Cylinder Head MaterialAluminum
Piston MaterialForged Aluminum
Crankshaft MaterialForged Steel
Carburetor IncludedYes
Intake Manifold IncludedYes
Distributor IncludedYes
Connecting Rod MaterialForged Steel
Valve Covers IncludedYes
Engine BalanceInternal
Cylinder Heads IncludedYes
Rear Main Seal Style1-piece
Throttle Body IncludedNo
Timing Cover IncludedYes
Oil Pan IncludedYes
Water Pump IncludedYes
Harmonic Balancer IncludedYes
Flexplate IncludedNo
Flywheel IncludedNo
Air Cleaner IncludedNo
Spark Plugs IncludedYes
Spark Plug Wires IncludedYes
Computer IncludedNo
Wiring Harness IncludedNo
GENERAL
Horsepower750 horsepower
Combustion Chamber Volume119cc
Camshaft Duration (.050 in)254° intake / 262° exhaust
Camshaft Lift (in).698 intake / .698 exhaust
Bore x Stroke (in)4.500" x 4.500"
Warranty30 month / 50,000 miles
AssembledYes
Camshaft IncludedYes
Block4 bolt main
