#227BP350CTFK
BluePrint BP350CTFK 350 Cruiser Crate Engine, Dlx W/ Pulleys, EFI
- BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine
- Dyno Tested Small Block GM Style
- Fuel Injected Deluxe Dressed Longblock With Black Pulleys
$9,399.00
/each
In Stock
Order soon, only 3 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
Deluxe Crate Engine Crate Engine Type, Oil Pan Included
- BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine
- Dyno Tested Small Block GM Style
- Fuel Injected Deluxe Dressed Longblock With Black Pulleys
- HP and torque : 341 HP / 371 FT LBS, Compression Ratio: 9:2:1
- Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons
Rebates Available
See rebate detailsKey Specs
| Crate Engine Type | Deluxe Crate Engine |
| Compression Ratio | 9.2:1 |
| Engine Displacement | 350 cu. in. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBluePrint Engines BP350CTFK Details
BluePrint Engines BP350CTFK Details
- BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine
- Dyno Tested Small Block GM Style
- Fuel Injected Deluxe Dressed Longblock With Black Pulleys
- HP and torque : 341 HP / 371 FT LBS, Compression Ratio: 9:2:1
- Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons
BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.000" Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage
ROTATING ASSEMBLY:
Cast Iron Crankshaft
3.480" Stroke
Forged 5.700" connecting rods
Hypereutectic pistons
Internal Front/ External Rear engine balance
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - H8002K
64cc chamber
2.02" intake/1.60" exhaust valves
195cc intake/75cc exhaust runners
CAM SPECS:
Cam Type: Roller
.477 Intake .471 Exhaust
202 Intake / 212 Exhaust duration
@ .050 - 115 degree lobe separation
IGNITION TIMING:
32 Degrees Total at 3500 RPM
ALSO INCLUDES:
Valve covers
Oil pan
Harmonic Balancer
Spark plugs and Wires
Timing cover
Aluminum intake
Waterneck and Thermostat
HEI distributor
EFI system

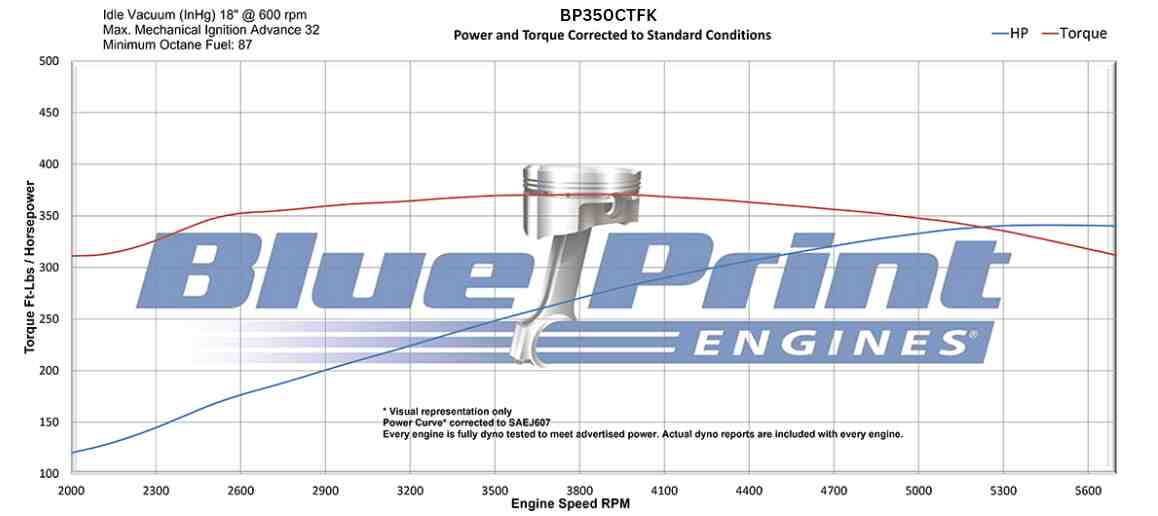

Dyno test results shipped with engine
Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump (Does not fit Corvette)
WARRANTY:
30 month / 50,000 mile
NOTES:
This engine is an excellent cruiser and daily driver engine. This engine makes up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
Features
The front serpentine assemblies installed on the deluxe dressed crate engines feature the 7B10 Peanut style A/C compressor, this unit is fitted for the R-134A Freon Refrigerant type-fittings, and is compatible with most aftermarket A/C systems such as Vintage Air
Rebates
BluePrint Old School $350 Off Qualifying Engines
Purchase a qualifying BluePrint Engines 350ci (341 HP) Small Block Chevy-compatible engine during the promotional period and receive a $350 mail-in rebate. To take advantage of this offer, complete the rebate form and mail it along with a copy of your purchase receipt within 30 days of the purchase date. The rebate is valid on eligible engine part numbers only and provides $350 back for each qualifying engine purchased, making it a great opportunity to save on a classic, reliable BluePrint Engines small block powerplant.
Guides & Documents
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
BluePrint Engines BP350CTFK Specifications
BluePrint Engines BP350CTFK Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | BP350CTFK |
| Brand | BluePrint Engines |
| Crate Engine Type | Deluxe Crate Engine |
| Compression Ratio | 9.2:1 |
| Engine Displacement | 350 cu. in. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Cast Iron |
| Carburetor Included | Yes |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Connecting Rod Material | Forged Steel |
| Valve Covers Included | Yes |
| Engine Balance | Internal/External |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Timing Cover Included | Yes |
| Oil Pan Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | Yes |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | No |
| GENERAL | |
| Torque | 371 ft./lbs. |
| Horsepower | 341 horsepower |
| Combustion Chamber Volume | 64cc |
| Camshaft Duration (.050 in) | 202° intake / 212° exhaust |
| Camshaft Lift (in) | .477 intake / .471 exhaust |
| Bore x Stroke (in) | 4.000" x 3.480" |
| Assembled | Yes |
| Cylinder Head Style | Assembled |
| Intake Valves Included | Yes |
| Exhaust Valves Included | Yes |
| Valve Spring Included | Yes |
| Retainers Included | Yes |
| Locks Included | Yes |
| Rocker Arm Studs Included | Yes |
| Rocker Arms Included | Yes |
| Guideplates Included | Yes |
| Sold in Quantity | Each |
