BluePrint BP350CTCD 350 Cruiser Crate Engine, Dlx. Dressed, Carb

#227BP350CTCD

BluePrint BP350CTCD 350 Cruiser Crate Engine, Dlx. Dressed, Carb

5 Questions

BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine
Dyno Tested Small Block GM Style
Carbureted Deluxe Dressed Longblock

$5,099.00

On Backorder

This part is Backordered. We estimate this item will ship on or before February 28th.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

350, Connect and Cruise Crate Engine Type

BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine
Dyno Tested Small Block GM Style
Carbureted Deluxe Dressed Longblock
HP and torque : 341 HP / 371 FT LBS, Compression Ratio: 9:2:1
Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons

See more details

Key Specs

Crate Engine Type	Connect and Cruise
Engine Displacement	350 cu. in.
Horsepower	341 horsepower
Compression Ratio	9.2:1
Torque	371 ft./lbs.

See more specs

Need To Know

Truck Ship

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

Quick and Easy Returns

BluePrint Engines BP350CTCD Details

BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine
Dyno Tested Small Block GM Style
Carbureted Deluxe Dressed Longblock
HP and torque : 341 HP / 371 FT LBS, Compression Ratio: 9:2:1
Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons

BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.000" Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:
Cast Iron Crankshaft
3.480" Stroke
Forged 5.700" connecting rods
Hypereutectic pistons
Internal Front/ External Rear engine balance

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - H8002K
64cc chamber
2.02" intake/1.60" exhaust valves
195cc intake/75cc exhaust runners

CAM SPECS:
Cam Type: Roller
.477 Intake .471 Exhaust
202 Intake / 212 Exhaust duration
@ .050 - 115 degree lobe separation

IGNITION TIMING:
32 Degrees Total at 3500 RPM

ALSO INCLUDES:
Valve covers
Harmonic balancer
Spark plugs
Spark plug wires
Standard Rotation Long Style Water Pump
Waterneck and Thermostat
Fuel Pump
Oil pan
Timing cover
Aluminum intake
HEI distributor
600 cfm carburetor

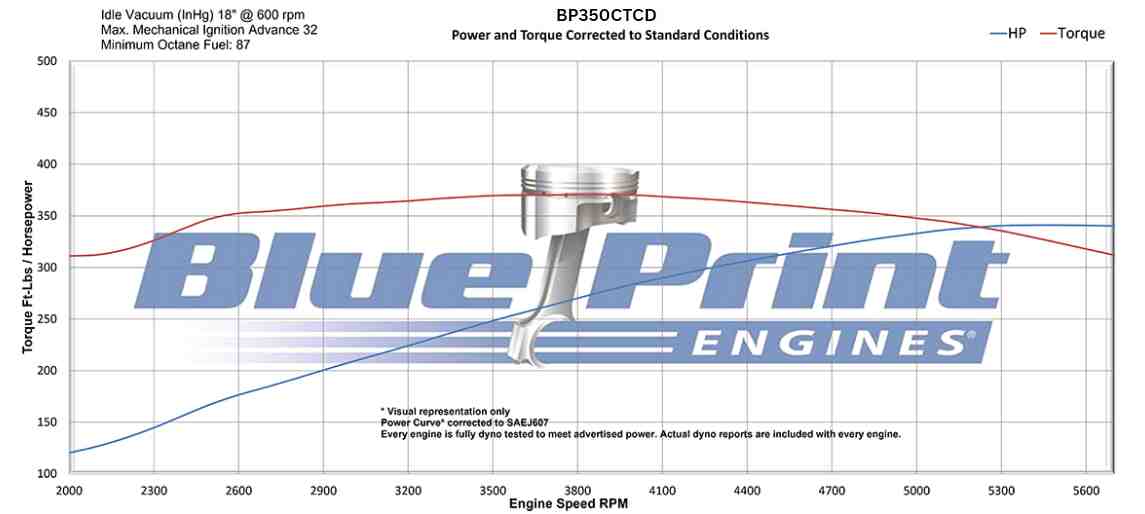

Dyno test results shipped with engine

WARRANTY:
30 month / 50,000 mile

NOTES:

This engine is an excellent cruiser and daily driver engine. This engine makes up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel

Guides & Documents

Crate Engines Guide/Document (227BP350CTCD)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA Prop 65

CARB warning

BluePrint Engines BP350CTCD Specifications

KEY SPECS
MFG. Part #	BP350CTCD
Brand	BluePrint Engines
Crate Engine Type	Connect and Cruise
Engine Displacement	350 cu. in.
Horsepower	341 horsepower
Compression Ratio	9.2:1
Torque	371 ft./lbs.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Piston Material	Hypereutectic Aluminum
Crankshaft Material	Cast Iron
Combustion Chamber Volume	64cc
Camshaft Duration (.050 in)	202° intake / 212° exhaust
Camshaft Lift (in)	.477 intake / .471 exhaust
Bore x Stroke (in)	4.000" x 3.480"
Carburetor Included	Yes
Intake Manifold Included	Yes
Distributor Included	Yes
Valve Covers Included	Yes
Engine Balance	Internal/External
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	Yes
Oil Pan Included	Yes
Timing Cover Included	Yes
Water Pump Included	Yes
Harmonic Balancer Included	Yes
Air Cleaner Included	Yes
Spark Plugs Included	Yes
Spark Plug Wires Included	Yes
Computer Included	No
Wiring Harness Included	No

GENERAL
Assembled	Yes
Cylinder Head Style	Assembled
Intake Valves Included	Yes
Exhaust Valves Included	Yes
Valve Spring Included	Yes
Retainers Included	Yes
Rocker Arm Studs Included	Yes
Rocker Arms Included	Yes
Valve Guides Included	Yes
Carburetor Quantity	One
Intake Gaskets Included	Yes
Camshaft Included	Yes
Lifters Included	Yes
Sold in Quantity	Each
