BluePrint BP350CTFD 350 Cruiser Crate Engine, Dlx. Dressed, EFI

#227BP350CTFD

BluePrint BP350CTFD 350 Cruiser Crate Engine, Dlx. Dressed, EFI

1 Question

BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine
Dyno Tested Small Block GM Style
Deluxe Dressed Longblock

$6,199.00

On Backorder

This part is Backordered. We currently do not have an estimate when this item will ship.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Connect and Cruise Crate Engine Type

BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine
Dyno Tested Small Block GM Style
Deluxe Dressed Longblock
HP and torque : 341 HP / 371 FT LBS, Compression Ratio: 9:2:1
Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons

See more details

Key Specs

Crate Engine Type	Connect and Cruise
Engine Displacement	350 cu. in.
Horsepower	341 horsepower
Compression Ratio	9.2:1
Torque	371 ft./lbs.

See more specs

Need To Know

Truck Ship

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

Quick and Easy Returns

BluePrint Engines BP350CTFD Details

BluePrint Engines New Block Casting 350 CI Cruiser Crate Engine
Dyno Tested Small Block GM Style
Deluxe Dressed Longblock
HP and torque : 341 HP / 371 FT LBS, Compression Ratio: 9:2:1
Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons

BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.000" Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:
Cast Iron Crankshaft
3.480" Stroke
Forged 5.700" connecting rods
Hypereutectic pistons
Internal Front/ External Rear engine balance

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - H8002K
64cc chamber
2.02" intake/1.60" exhaust valves
195cc intake/75cc exhaust runners

CAM SPECS:
Cam Type: Roller
.477 Intake .471 Exhaust
202 Intake / 212 Exhaust duration
@ .050 - 115 degree lobe separation

IGNITION TIMING:
32 Degrees Total at 3500 RPM

ALSO INCLUDES:
Valve covers
Oil pan
Timing cover
Harmonic Balancer
Standard rotation long water pump
Thermostat and Water neck
Aluminum intake
HEI distributor
Spark plugs and wires

600 cfm carburetor

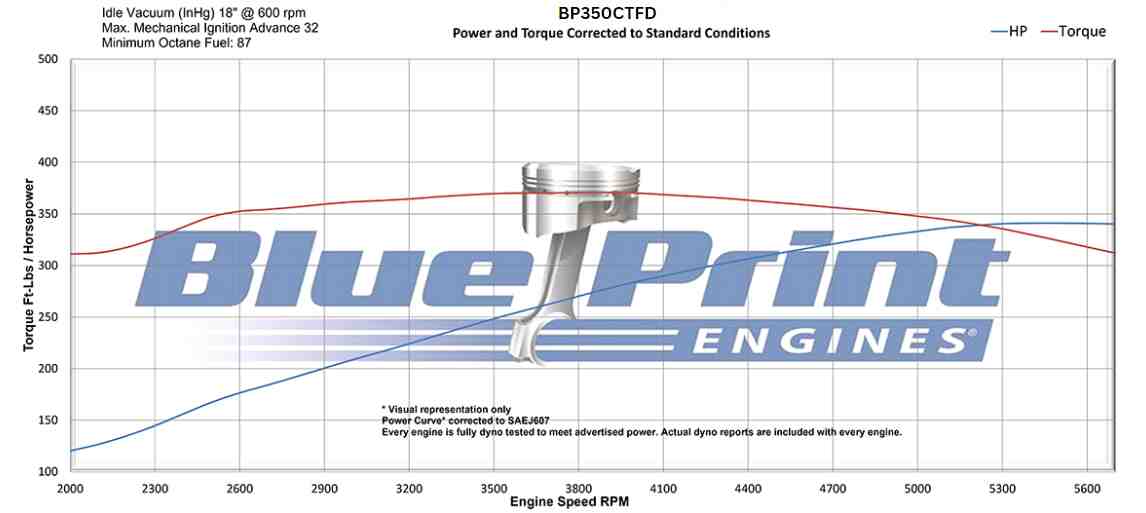

Dyno test results shipped with engine

WARRANTY:
30 month / 50,000 mile

NOTES:

This engine is an excellent cruiser and daily driver engine. This engine makes up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel

Guides & Documents

Crate Engines Guide/Document (227BP350CTFD)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA Prop 65

CARB warning

BluePrint Engines BP350CTFD Specifications

KEY SPECS
MFG. Part #	BP350CTFD
Brand	BluePrint Engines
Crate Engine Type	Connect and Cruise
Engine Displacement	350 cu. in.
Horsepower	341 horsepower
Compression Ratio	9.2:1
Torque	371 ft./lbs.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Piston Material	Hypereutectic Aluminum
Crankshaft Material	Cast Iron
Spark Plug Style	Straight
Combustion Chamber Volume	64cc
Camshaft Duration (.050 in)	202° intake / 212° exhaust
Camshaft Lift (in)	.477 intake / .471 exhaust
Bore x Stroke (in)	4.000" x 3.480"
Carburetor Included	Yes
Intake Manifold Included	Yes
Distributor Included	Yes
Connecting Rod Material	Forged Steel
Valve Covers Included	Yes
Engine Balance	Internal/External
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	No
Oil Pan Included	Yes
Timing Cover Included	Yes
Water Pump Included	Yes
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	Yes
Spark Plug Wires Included	Yes
Computer Included	No
Wiring Harness Included	No

GENERAL
Warranty	30 month / 50,000 mile
Assembled	Yes
Cylinder Head Style	Assembled
Intake Valves Included	Yes
Exhaust Valves Included	Yes
Valve Spring Included	Yes
Rocker Arms Included	Yes
Guideplates Included	Yes
Head Gaskets Included	Yes
Carburetor Quantity	One
Intake Gaskets Included	Yes
Camshaft Included	Yes
Lifters Included	Yes
Block	4 bolt main
Pistons	Hypereutectic Aluminum
Sold in Quantity	Each
Water Pump Style	Long
