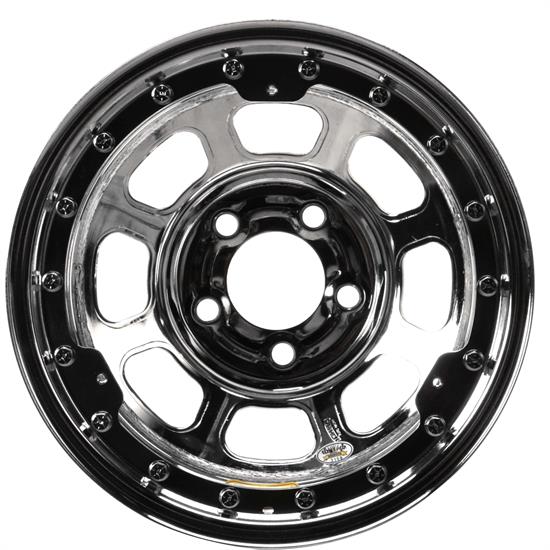

Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA

Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA

15 Inch Wheel Diameter, Steel, 8" Width, 5x5 in. Wheel Bolt Pattern (in.), Beadlock Included

3 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
X
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Bassett 15x8 D-Hole Beadlock Wheel, 5 on 5 Bolt Pattern, IMCA
Zoomed In Image
Part # 278586
Starting from
$144.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Wheel Diameter:
15 Inch
Material Type:
Steel
Width:
8"
Wheel Bolt Pattern (in.):
5x5 in.
Wheel Bolt Pattern (mm):
5x127 mm
Wheel Backspace Range:
Select Color/Backspace to see
Wheel Backspace:
Select Color/Backspace to see
Finish:
Select Color/Backspace to see
Color:
Select Color/Backspace to see
Beadlock Functional:
Yes
Beadlock Included:
Yes
Position:
Rear Right
Diameter:
15"
Weight:
24.1 lbs.
MFG. Part #:
Select Color/Backspace to see
Sold in Quantity:
Each
Notes:
IMCA Certified
Wheel Construction:
Steel
Beadlock:
Yes
Bolt Pattern:
5 on 5"

Info

This 15 inch wheel has all the features of the standard Bassett D-Hole wheel with the addition of a beadlock. It's the only IMCA-approved beadlock utilizing 100% spun-form shells and rings. Spun-form shells and rings are stronger, lighter and have less runout than roll-formed beadlock wheels. The inner ring now utilizes a flat design while the outer ring contains all the tire crush height. The Bassett beadlock also uses 18 high grade bolts, which clamp more consistently and prevents premature wear and air leaks.

Bassett brought back the 15 x 8 D-Hole style 15 inch wheel for the IMCA and asphalt markets featuring the same high quality spun-form shell as the Inertia Advantage wheel, but at a more economical price.

  • For covers using ¼” bolts
  • 24lb steel wheel
  • Light weight, yet strong enough for 3500 lbs. stock cars
  • Valve stem behind center in window
  • 15x8” wheel
  • 5 on 5” bolt pattern
  • Meets 2018 IMCA rules
  • Available in 1", 2", 3", 4" or 4.75” backspace

Learn more about determining the proper wheel offset, torque sequence, and bolt pattern for your application by reading our tech article.  Racing Wheel Principles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
