1964-70 Mustang Crossmember, Mustang II Front Suspension Upgrade

• Vastly improved handling when compared to original suspension
• Front steer rack-and-pinion steering provides greater steering feel

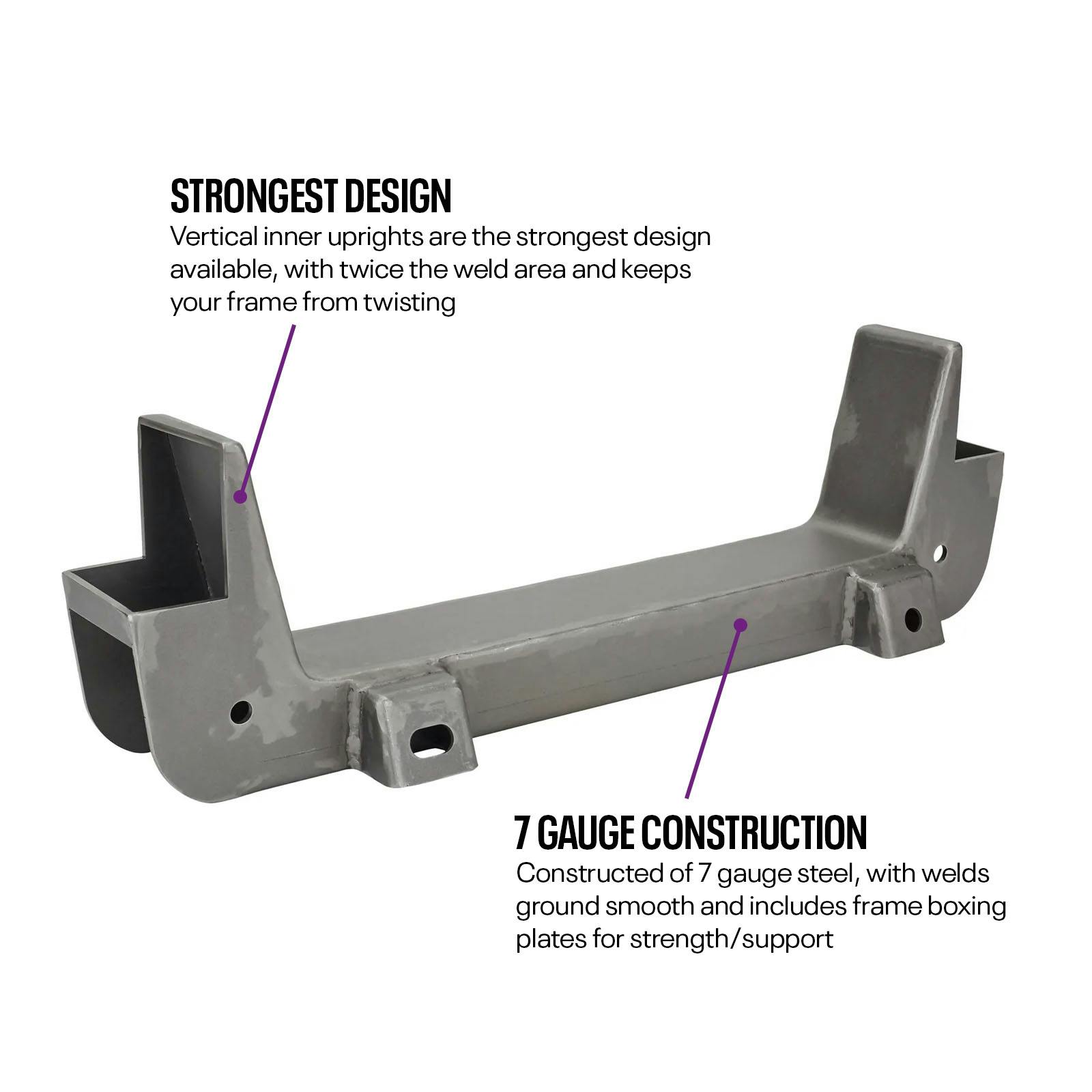

• Complete weld-in assembly made from 3/16-inch steel adds strength
• Vertical inner uprights provide a strong design with twice the weld area

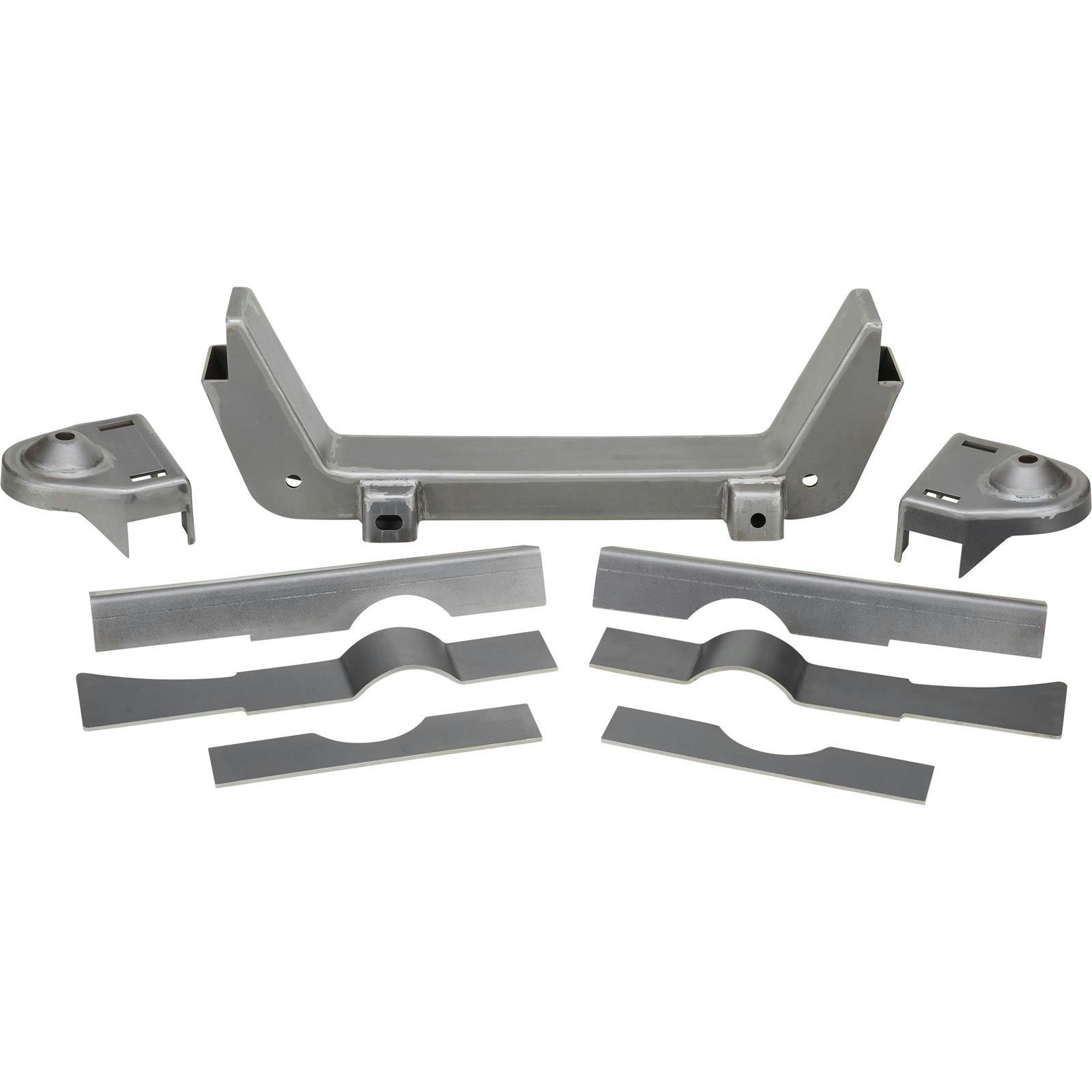

• Application specific crossmember and spring towers pre-welded to save installation time
• Allows for numerous control arm and disc brake kit upgrade options
• Compatible with manual and power rack-and-pinion steering systems
• Rack-and-pinion mounting points rotated rearward 20 degrees for steering shaft clearance
• Built-in anti-dive and bump steer correction mounting points
• Lower control arm pivot tubes and corner gussets not included
• Accepts stock Mustang II spindles or aftermarket drop spindles
• Provides increased engine bay room for modern engine swaps
• All welds ground smooth, saving you time and energy during installation
• Also fits 1967-1970 Mercury Cougar models as well

Drastically Improve Your ’64-’70 Ford Mustang’s Handling with A Mustang II IFS Crossmember

The original first generation Mustang front suspension, due to shared platform limitations, is compromise that doesn’t really do anything well. Wheel and tire fitment, braking, steering, and more are severely lacking, especially for today’s road speeds and modern engine power output. You’ll be in for some hair raising steering feel, or lack thereof, when you get up to highway speed with the old steering system and the Bendix-sourced power steering is getting harder and harder to find parts to keep it functional and leak free. Lastly, even getting a first generation Mustang aligned is tough these days, as most shops do not even mess with cars that use alignment shims. Solve all your issues by updating your classic first generation Mustang’s suspension for a well-engineered weld-in IFS solution utilizing the tried and true suspension geometry that debuted on the 1974 Mustang II.

Built Strong to Handle the Road Ahead and Look Good Doing It

Converting your ’64-’70 Mustang (or ’67-’70 Mercury Cougar) chassis to the Mustang II front suspension design with our crossmember kit brings you a whole different driving experience, one that will have you looking for any excuse to get out on the open road and take long trips to events you never attended before due to your Ford’s poor handling at modern highway speeds. Beginning with our 7 gauge steel (that’s a full 3/16 of an inch thick) boxed Mustang 2 front suspension crossmember that is fully welded with extended vertical uprights we have designed in anti-dive geometry to our crossmember and spring towers. Suspension travel, which yields a better ride, is upwards of five inches with our IFS and aligning the IFS can be handled easily by any competent alignment shop.

Rack-and-pinion steering provides a quick and crisp steering effort at any road speed, and we have designed our rack mounting tabs to not only be optimized to eliminate bump steer but lay the steering rack back at a 20 degree angle to facilitate a lower steering shaft angle. This helps with exhaust manifold/header and overall engine clearance. The mounts accept both 15-1/2-inch and 16-inch on center rack mount spacing. Lastly, upgrading to a weld-in IFS Mustang 2 front end kit greatly enhances your braking options with the ability to run the most basic disc brake package all the way up to serious multi-piston racing disc brakes. Track width is dependent upon the brake package and control arms you choose, usually creating a 56-1/2- to 58-1/2-inch hub-to-hub IFS width with stock arm length. We do offer 5/8-inch narrower upper and lower control arms if needed for specific wheel placement in your application. As you can see, our crossmember is the perfect foundation for building the best Mustang II front suspension for your ’64-’70 Ford Mustang.

Welds to Your Stock Frame Rails for Strength and Accuracy

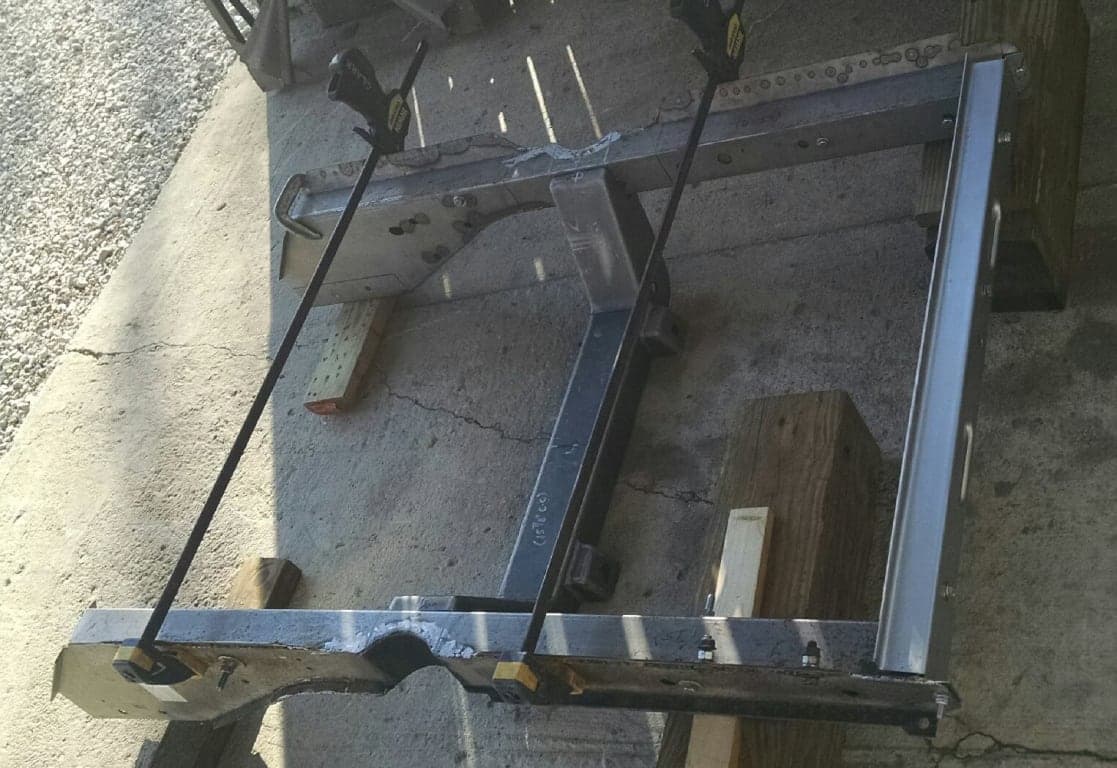

We understand that bolt-in suspension upgrades are easier for those that like to spin their own wrenches, but we designed our Mustang II crossmembers to be a weld-in solution to maintain their strength and integrity throughout the life of your ’64-’70 Ford Mustang. While we do encourage the use of a certified welder or chassis shop for installation, if you know your way around a measuring tape and have a MIG welder in your garage there’s really nothing stopping you from following our detailed instructions to fit and weld our Mustang II front suspension crossmember into your ’64-’70 Ford Mustang’s frame rails.

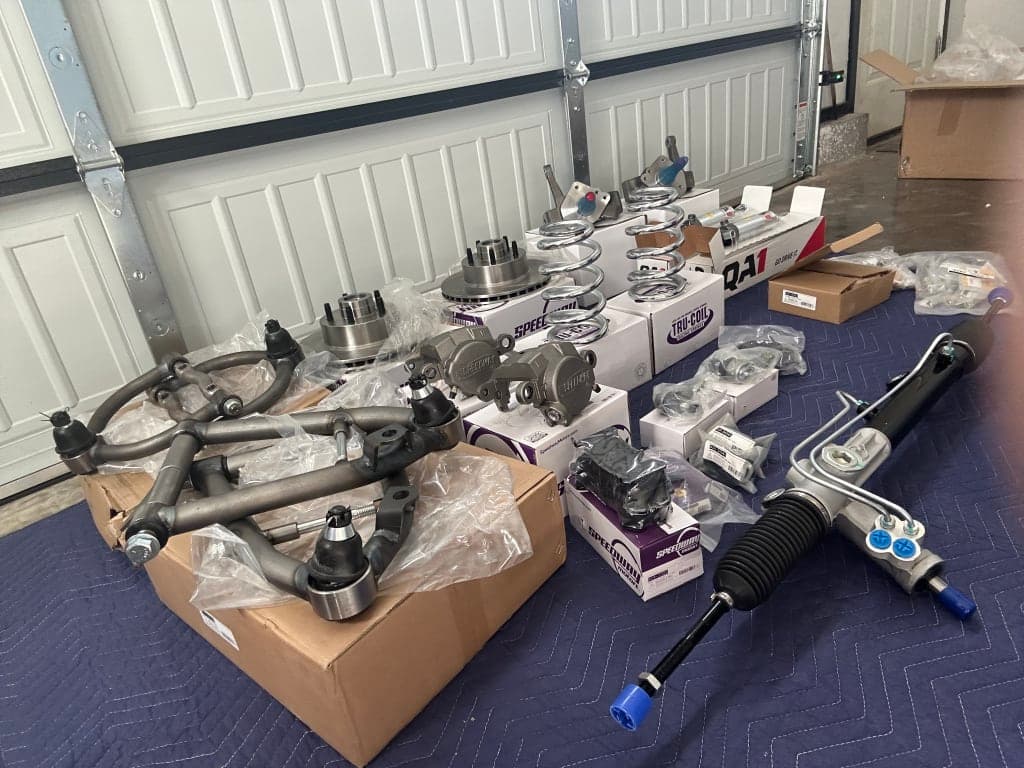

Welding our Mustang II suspension crossmember into place is a straightforward installation and can be handled in just a few short hours once the old straight axle and front suspension have been removed. Our crossmember requires tubular lower control arms and will not work with stock style arms that utilize a strut rod. Note, lower control arm pivot tubes and gussets are not included, as they are typically included with tubular style lower control arm kits. We offer Mustang II control arm kits with and without disc brakes to help you complete your installation. Be sure to select a kit with 2-inch drop spindles to maintain proper ride height or purchase separately. We highly recommend our inner fender panels to provide a clean engine bay appearance. We offer them for the ’64-’66 Mustang and ’67-’70 Mustang. Lastly, if using a power rack-and-pinion steering unit you will need our rack spacers for proper clearance along with the corresponding longer bolts.

Notes: Must use rear sump oil pan. Raised engine placement may require a high-rise hood. Cleveland engines will not work. Crossmember DOES NOT fit 1963-1965 Falcon.

910-34457 Crossmember Installation Instruction Sheet (PDF)
