#91035337

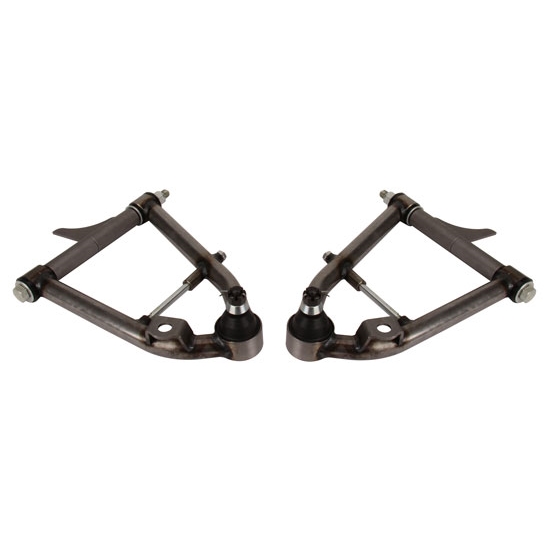

Mustang II Tubular Lower A-Arms, Coilovers, No Strut, 5/8 In Narrower
- Upgrade to a cleaner looking control arm with these tubular no-strut style control arms
- These coil-over style control arms eliminate the stock spring pocket which also improves the appearance
- Sway bar brackets are welded on to allow for easy installation of sway bars
$397.99
/pair
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
7.63" Mount Center to Ball Joint Center, Steel, Natural
- Upgrade to a cleaner looking control arm with these tubular no-strut style control arms
- These coil-over style control arms eliminate the stock spring pocket which also improves the appearance
- Sway bar brackets are welded on to allow for easy installation of sway bars
- 5/8" Narrower than stock width allows for more tire to fender clearance
- Bushing and gusset are included to weld to crossmembers that do not already have them
Key Specs
| Control Arm Style | Tubular |
| Position | Lower |
| Ball Joint Type | Screw-in |
| Bushing Material | Polyurethane |
| Control Arm Material | Steel |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91035337 Details
Speedway Motors 91035337 Details
You don't have to look any farther for tubular control arms for your Mustang II IFS-equipped hot rod. Our Mustang II control arms are made from full .120 wall, 1.25" diameter tubing, fixture welded and feature screw-in ball joints and no-squeak rubber bushings. These new generation, no-strut style arms eliminate the strut rod found on stock-style Mustang II IFS systems. The improved, triangulated design provides stability and strength within the arm itself, so you can get rid of that ugly strut rod.
Will work with nearly any stock or aftermarket Mustang II front crossmember (welding is required on most applications). Lower control arm accepts most coil-over shock assemblies. These control arms are 5/8" narrower than stock, which means that they will reduce front track width by 5/8" per side (or 1-1/4" overall) when compared to a stock width control arm. This helps tuck the wheels up under the fenders without having to buy expensive special offset wheels. When using 5/8" narrower control arms, 5/8" must be removed from each inner tie rod end.
- 5/8" Narrower than stock width
- Upgrade to a cleaner looking control arm
- Full .120" wall, 1.25" diameter fixture welding tubing
- Features screw-in ball joints and no-squeak bushings
- Works with nearly any stock or aftermarket crossmember
- Welding may be required on some applications
- Designed to correspond with coil-over style springs and shocks
- Works with Mustang II crossmembers that come without lower A-Arm tabs
- Non-strut rod applications
Why go with tubular control arms? The most obvious reason is the looks. Tubular control arms and strut rods give your hot rod a much cleaner and hi-tech appearance than the stock type do. Why go with tubular control arms? The most obvious reason is the looks. Tubular control arms and strut rods give your hot rod a much cleaner and hi-tech appearance than the stock type do.
NOTE - When using the 5/8 inch narrower control arms, you must remove approximately 1 inch from each inner tie rod end to maintain proper steering geometry.
Charts
Guides & Documents
Speedway Motors 91035337 Specifications
Speedway Motors 91035337 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91035337 |
| Brand | Speedway Motors |
| Control Arm Style | Tubular |
| Position | Lower |
| Ball Joint Type | Screw-in |
| Bushing Material | Polyurethane |
| Control Arm Material | Steel |
| Hardware Included | Yes |
| Adjustable | No |
| Finish | Natural |
| GENERAL | |
| Mount Center to Ball Joint Center | 7.63" |
| Material Type | Steel |
| Overall Width | 11.01" |
| Ball Joint Included | Yes |
| Sold in Quantity | Pair |
| Tube O.D. | 1.25" |
| Material Thickness | 0.120" |
