1947-54 Chevy Pickup Rear Suspension/Axle Kit, Ford 9 Inch Posi

As featured on our 1952 Chevy Pickup for Classic Truck's Week to Wicked. Watch the transformation here!

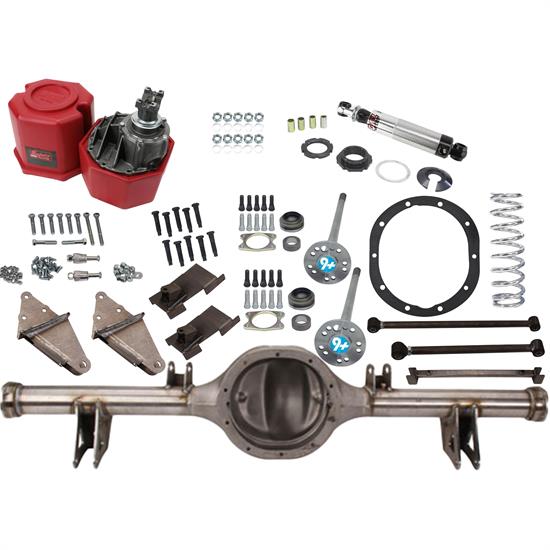

Kit Includes:

• (1) Speedway 1947-54 Chevy Truck 4-Link Rear Suspension Kit
• (1) 1947-54 4-Link 9 Inch Housing with Brackets
• (1) Speedway Ford 9 Inch Posi Traction 3rd Member Assembly, 31 Spl, 3.50
• (1) Currie CE-98132-30625 9 Inch Ford 31 Spline Axle Shaft, 30-5/8 Inch
• (1) Currie CE-98129-28375 9 Inch Ford 31 Spline Axle Shaft, 28-1/4 Inch
• (1) 9 Inch Ford Rearend Axle Housing 3rd Member Pumpkin Gasket
• (1) Third Member Mounting Hardware Kit, Ford 8 inch/9 inchRear End
• (1) 9 Inch Ford Rearend Axle Housing 3rd Member Carrier Stud Set
• (2) QA1 US402 Adjustable Shocks and Coilover Kit w/o Spring, 12 Inch
• (2) AFCO 23250CR 10 Inch Extreme Chrome Coil-Over Springs, 250 Rate

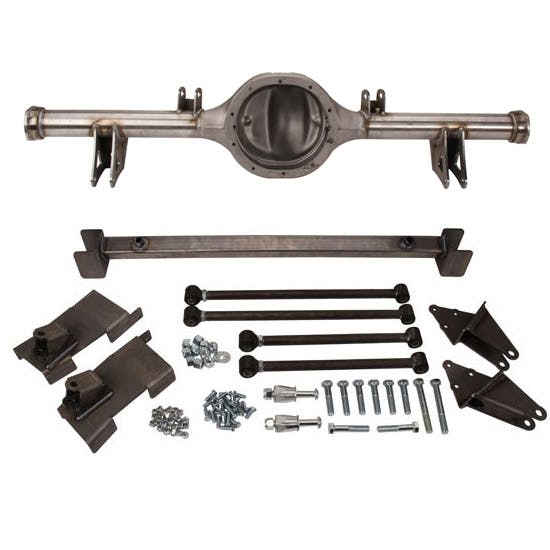

Speedway 1947-54 Chevy Truck 4-Link Rear Suspension Kit

Get a great rear suspension for your classic with this 1947-53 Chevy pickup 1/2 ton truck and the 1954 Chevy pickup 1/2 ton truck (with slight installation frame modifications) triangulated 4 bar rear suspension kit. This precision engineered kit includes bolt-on frame brackets, weld-on axle brackets, tubular steel bars, and chromolyadjusters with urethane bushings. This triangulated four bar rear suspension will greatly improve both the ride quality and handling of your 1/2 ton Chevy.

• Allowsthe do-it-yourself rodder to use the rear end of their choice
• Modern geometry and handling
• Chromoly four bars with urethane bushings
• Bolt-on frame brackets and shock crossmember
• The length of the upper bars is 16" eye to eye
• The length of the lower bars is 21.5" eye to eye
• 1/2 ton chassis application only
• Kit will locate rear axle centerline in the original factory housing center line, and as such, it retains the original wheel base and the tire/wheel will not be centered in the fender opening as they will be located in the original factory location.

NOTE: Finish will be plain steel, not powder coated as shown. When installing into a 1954 frame, due to the slight differences in the 1947-53 and 1954 frame, additional installation modifications will be required for the install into the 1954 frame at the shock crossmember area with regards to the width.Please note that this is applicable only to the 1/2 ton chassis application and will not fit the 3/4 ton chassis applications.

1947-54 4-Link 9 Inch Housing with Brackets

• For 1/2 ton chassis
• 60" wide 9" rearend housing with welded suspension brackets

Speedway Ford 9 Inch Posi Traction 3rd Member Assembly, 31 Spl, 3.50

Assembled by Professionals

Hand-assembled by trained experts in-house, our Ford 9-inch third members are built from quality components with an exact step-by-step process. We bring this combination of precision assembly and quality components to you at a price that can't be beat. We trust these third members so much, they're the go-to choice for our own rides, from the street to the track.

Tough, Nodular Iron Center Section

Our Ford 9 Inch Nodular Iron Third Member Center Section Carrier starts with a NEW casting with over 4 lbs. of additional material in critical areas. Nodular (ductile) iron is much more resistant to fracturing than OEM "gray"iron. Extra ribbing reinforces the case and rearmost pinion support (pilot bearing).

Thick, forged steel bearing caps surround the carrier bearings, all securely held in place with precision Grade 8 cap screws. The improvements continue with rugged billet steel adjuster nuts and heavy-duty keepers to ensure your ring gear settings are maintained. All mounting surfaces are precision machined to ensure a consistent, flat surface for a positive gasket seal (no more leaks on your shop floor). An oil fill plug is included.

Precision Assembled for Proper Ring Gear Teeth Pattern

Getting a proper pattern on the ring gear teeth is crucial. Our time-proven, step-by-step process ensures the correct backlash, preload, and proper amount of pinion shims to ensure the correct pattern on the ring gear teeth. Our gears use use cold-rolled 8620 steel, known for its long-wear and durability.

To ensure a proper gear pattern, we use a stronger "Daytona" style pinion bearing support to maintain that critical pinion depth setting. Stronger due to its larger bearings, our Daytona pinion support also uses the spacer-and-shim setup to maintain critical pinion depth settings under high load, unlike traditional crush sleeves which often compress further, take out your preload and lead to failure. With solid bearing spacers and the proper shims, we eliminate this problem and make setting preload easy and repeatable during installation, service and gear changes. Since preload is already set, simply torque the pinion nut to 160 ft./lbs. and you're good to go. The pinion gear is connected to our new, forged steel "Ford short” 1310-type pinion yoke.

Gear-Style Richmond Powertrax Grip ProDifferential

For the ultimate in putting power to the pavement, Richmond Powertrax Grip Pro Traction Systems are the latest design in traction using 3 x 2 spiral gear technology. These differentials provide smooth, dependable operation combining a limited-slip differential with the strength of a fully machined, forged steel case. Because there are no friction plates, no friction modifier additive is necessary. Always use a 80W-90 weight petroleum based gear oil with a GL-5 (or higher) rating, friction additive/modifiers should NOT BE USED. Synthetic oils and oils containing friction modifiers are not recommended.

Powertrax Grip Pro differentials are the ideal solution for just about any muscle car or truck on the road today. When you need that added traction so your muscle car puts power to the pavement instead of burning one wheel up, Powertrax Grip Pro limited slip differentials are your answer.

• Latest Posi-Trac Design
• Uses 3 x 2 Spiral Gear Technology
• Comes Fully Assembled
• Delivers Progressive and Variable Traction
• Allows You to Control How Much Traction is Applied
• Housed in a Fully Machined, Forged Steel Case

Proven Reliability

We run what we sell. Our third member units are the go-to choice for our own rides and we have built these units to last with high quality hardware and components. Tapered steel roller bearings minimize friction, better handle thrust loads and increase load carrying capacity. The ring gears are assembled with Grade 9 bolts with a tensile strength of 180,000 psi, a 15% increase over Grade 8 hardware. Heavy duty Grade 8 carrier cap bolts, a lock-style pinion nut with pre-applied Loctite and high-quality grade 5 pinion support bolts make our third member near-bulletproof.

Units include a Viton® pinion seal providing long lasting oil and chemical resistance. This seal retains elasticity up to 399°F (204°C) and intermittently up to 600°F (316°C) This high temp seal helps eliminate pinion leaks, reduces maintenance and keeps the third member properly lubricated. A carrier-to-housing gasket is available separately.

Our hand-assembled Ford 9 inch third member assemblies are made-to-order. We keep a supply of the most popular gears in stock, with most units built within 2-3 days. Our third-member units are shipped in a durable, reusable poly storage case, perfect for keeping multiple gear sets stored and ready for the track.

Features

• Hand-assembled by our trained technicians for an unbeatable combination of quality and value
• Track-tested durability in our own cars – we race what we sell
• Precision assembly for the correct backlash, preload, and proper amount of pinion shims to ensure the correct pattern on the ring gear teeth
• Ring and pinion gears of 8620 cold-rolled steel for long wear
• Nodular iron housing is stronger than OEM "gray" iron and has 4 lbs of additional reinforcement
• Large bearing "Daytona" style pinion bearing supports for strength and reliability
• Spacer and shim setup maintains critical pinion depth settings and easier to service than traditional crush sleeves
• Richmond Powertrax Grip Pro spiral gear differential gives positive traction without the noise of a full locker
• Ring gears assembled with Grade 9 hardware, 15% stronger in tensile strength than Grade 8
• Viton® pinion seal, resistant to chemicals and high temperatures
• Grade 8 Carrier cap bolts
• Lock-style pinion nut with pre-applied Loctite®
• Grade 5 pinion support bolts
• Includes form fitted, reusable red poly storage case

Currie CE-98132-30625 9 Inch Ford 31 Spline Axle Shaft, 30-5/8 Inch

• This custom cut and splined Currie Enterprises axle shaft is for Speedway housing 91046260 or 91047258 and other 9" Ford rearends
• This is the "long" axle of the two that are required
• Works with New Big Ford (Torino) bearing ends
• Flanges are dual-drilled for both 5 on 4-1/2" Ford/Mopar and 5 on 4-3/4" GM wheel bolt patterns
• Induction heat treated 1541 forged alloy
• 31-spline
• 30.625" long
• Fits 91046260 pumpkin centered housing
• Fits 91047258 pinion centered housing
• Works with New Big Ford (Torino) bearing ends
• 2.5" brake space offset
• 2.8" register hub
• Dual-drilled wheel bolt pattern
• Includes axle shaft, axle bearing, axle seal, bearing retainer, and two sizes of wheel studs (1/2"-20 Ford/Mopar and 7/16"-20 GM)

Currie CE-98129-28375 9 Inch Ford 31 Spline Axle Shaft, 28-1/4 Inch

• This custom cut and splined Currie Enterprises axle shaft is for Speedway housing 91046260 or other 9" Ford rearends
• This is the "short" axle of the two that are required
• Works with New Big Ford (Torino) bearing ends
• Flanges are dual-drilled for both 5 on 4-1/2" Ford/Mopar and 5 on 4-3/4" GM wheel bolt patterns
• Induction heat treated 1541 forged alloy
• 31-spline
• 28.25" long
• Fits 91046260 pumpkin centered housing
• Works with New Big Ford (Torino) bearing ends
• 2.5" brake space offset
• 2.8" register hub
• Dual-drilled wheel bolt pattern
• Includes axle shaft, axle bearing, axle seal, bearing retainer, and two sizes of wheel studs (1/2"-20 Ford/Mopar and 7/16"-20 GM)

9 Inch Ford Rearend Axle Housing 3rd Member Pumpkin Gasket

• Our reusable rear differential gaskets have a steel core and non-stick coating
• Fits 9" Ford rear axle third member housings

Third Member Mounting Hardware Kit, Ford 8 inch/9 inchRear End

• Used to attach the 3rd member (pumpkin) to the rearend housing,
• Works with Ford 8" and 9" rear axles
• Includes aluminum washers

9 Inch Ford Rearend Axle Housing 3rd Member Carrier Stud Set

• Housing studs and ring gear bolts complete the package for your 9" Ford axle
• Side bell thru bolts torque to 40-45 lbs.
• Knurl diameter .398-.403"

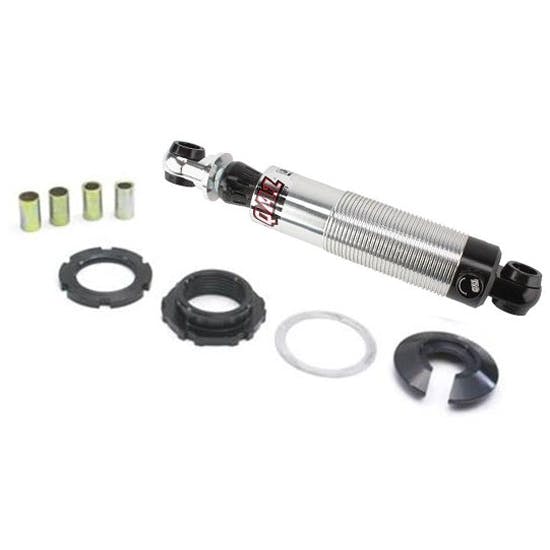

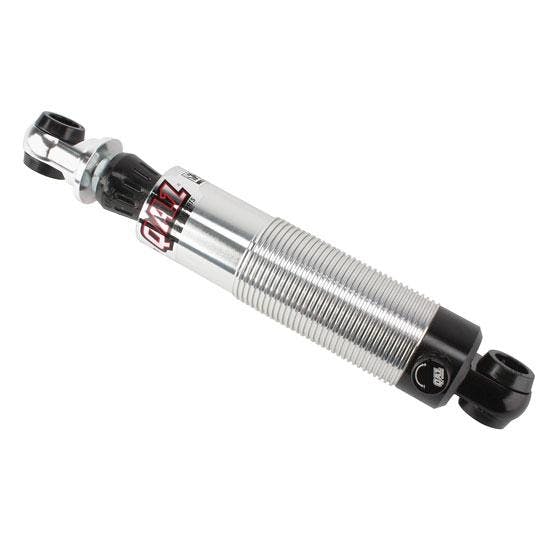

QA1 US402 Adjustable Shocks and Coilover Kit w/o Spring, 12 Inch

• Premium aluminum bodied shocks are not a revalved race shock - they were built specifically for street rods
• QA1 shocks feature 18 easily adjustable rebound settings to fine tune your hot rods ride
• Comes with steel coilover sleeves for the shock eyes to fit 1/2" boltsor 5/8" bolts
• 11-3/4" - 12-1/4" ride height
• 14" extended, 10-1/8" compressed
• Use 10" spring
• Width of Mount Bushings: 1.25"

Note:Shock lengths represent approximate mounted length at ride height.

Features:

• Billet aluminum shock body
• 5/8" centerless ground, hard chrome plated, solid piston rod
• Deflective Disc Valving
• 3-step sealing system
• 18-position adjuster knob changes the rebound valving
• Allows suspension control in one easy-to-reach location
• 100% dyno tested and serialized
• Revalveable and rebuildable by QA1 authorized service centers

AFCO 23250CR 10 Inch Extreme Chrome Coil-Over Springs, 250 Rate

• Whether you are building a purpose-built drag strip machine or a beautiful show car, Extreme Chrome coilover springs will provide the strength, durability and show stopping good looks you desire
• This new mirror finish spring line has all the great looks of a chrome spring with no damaging side-effects associated with chemical plating
• Industry exclusive 360° polished wire
• High quality REAL chrome finish
• Looks great from any angle - not just on the outside edge
• 2-5/8" inside diameter
• 3-3/8" outside diameter
• All AFCOILS® carry a lifetime warranty to remain within 2% of the original nominal free height

AFCOILS® Spring Rate Guide (Link)

Coil-Over Mounting Guide (Link)

Coil Over Mount Illustration (Link)

3rd Member Instructions (PDF)

How to Measure Your Housing (JPG)

4-Link Suspension Instructions (PDF)

Coil Springs

AFCOILS® springs are manufactured using the finest spring material available. They are designed for extended life and consistent performance. They are guaranteed to do the job for which they are designed for as long as they are owned by the original purchaser.

AFCO will replace any AFCOILS® spring that ever exceeds the maximum allowable 2% loss of free height from original nominal specification. One way freight is included.

1. Guarantee applies to original retail purchaser only.
2. Damaged springs not covered by warranty.
3. Spring must be returned to AFCO freight prepaid along with a copy of the original invoice.
4. No other warranty, either expressed or implied, applies to AFCOILS® springs.

(Warranty not valid without invoice.)



3rd Member

No warranty is offered or made for durability or specific performance. No warranty is offered for commercial, off road, street performance, or racing use.
