Product Summary

  • Build a firm foundation for your vintage 1/2 ton Chevy pickup without picking up a welder!
  • This innovative chassis kit allows the do-it-yourself rodder to assemble a complete '47-'54 Chevy pickup frame using only basic hand tools and a drill
  • The triangulated four bar rear suspension will greatly improve both the ride quality and handling of your Chevy
  • Rear coil over shocks are included to furter enhance the ride quality

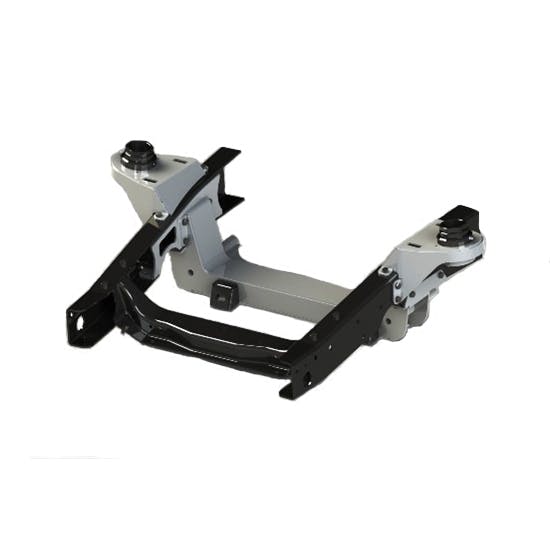

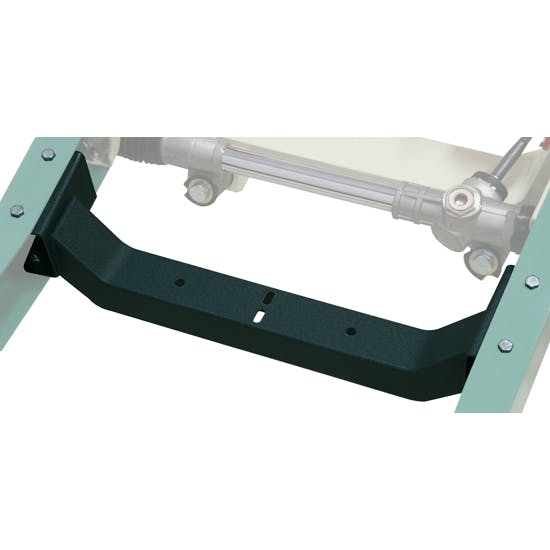

  • Bolt on front crossmember is included to allow the installation of Mustang II front suspension

Comes as a Kit

Key Specs

MFG. Part #9161947
BrandSpeedway Motors

Need To Know

Truck Ship

Truck shipments must be pre-paid with a credit card, certified check or money order

Quick and Easy Returns

Return Policy

Details

As featured on Classic Truck’s Week to Wicked. Watch the transformation here!

Build a firm foundation for your vintage 1/2 ton Chevy pickup without picking up a welder! This innovative line of chassis components from Speedway Motors allows the do-it-yourself rodder to assemble a complete '47-'54 Chevy pickup frame using only basic hand tools and a drill.

This triangulated four bar rear suspension will greatly improve both the ride quality and handling of your Chevy.

  • 1/2 ton chassis

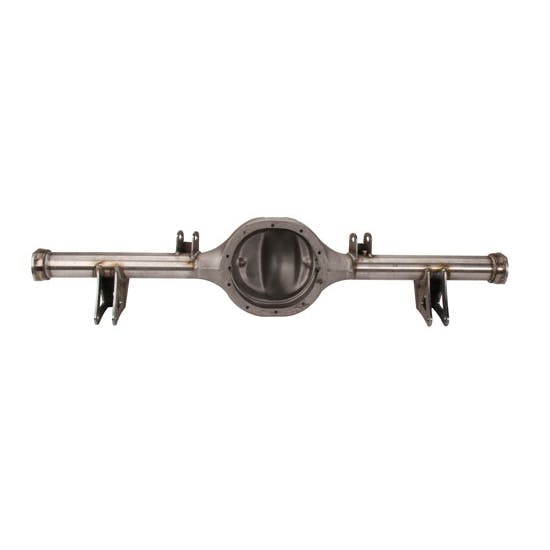

  • 60" wide 9” rearend housing with welded suspension brackets

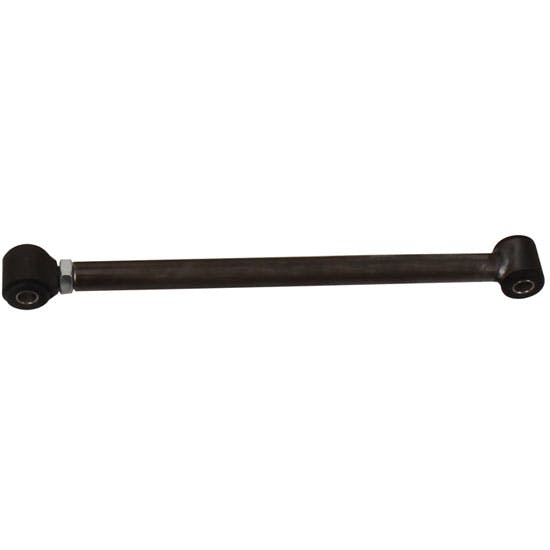

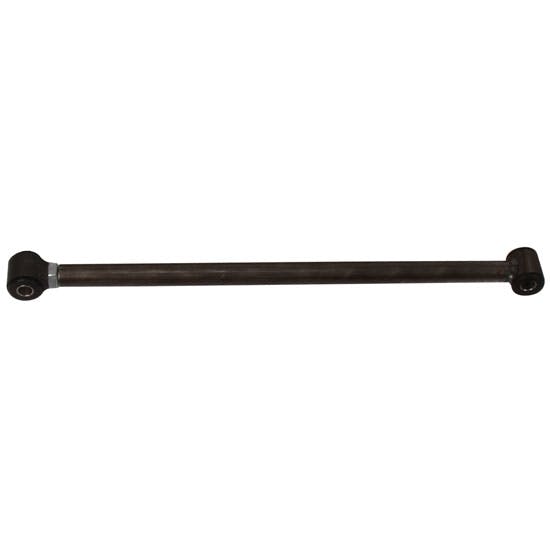

  • Chromoly four bars with urethane bushings

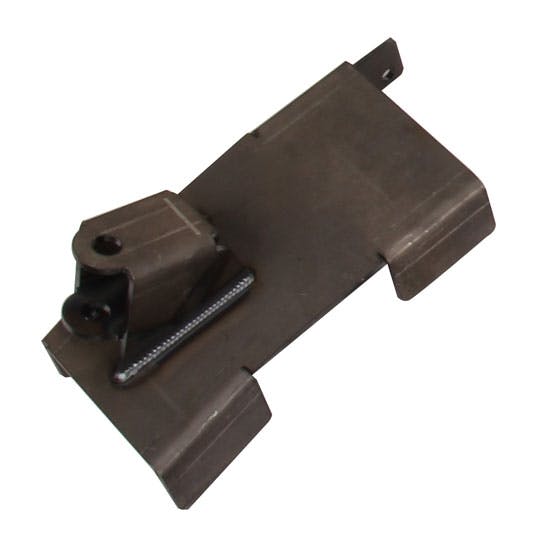

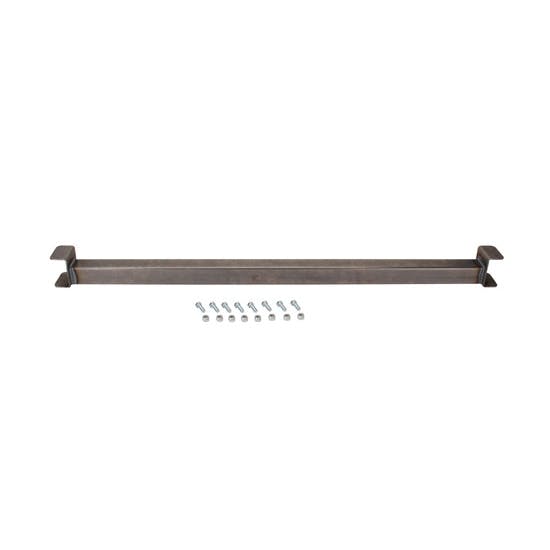

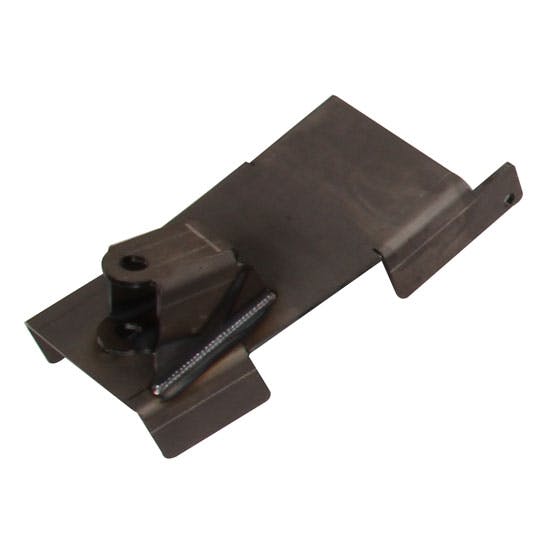

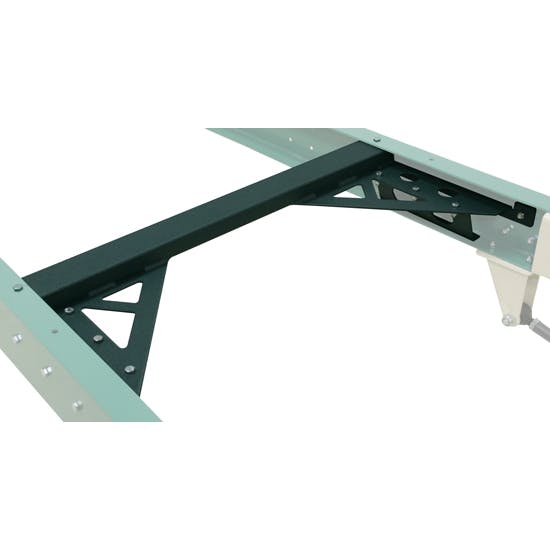

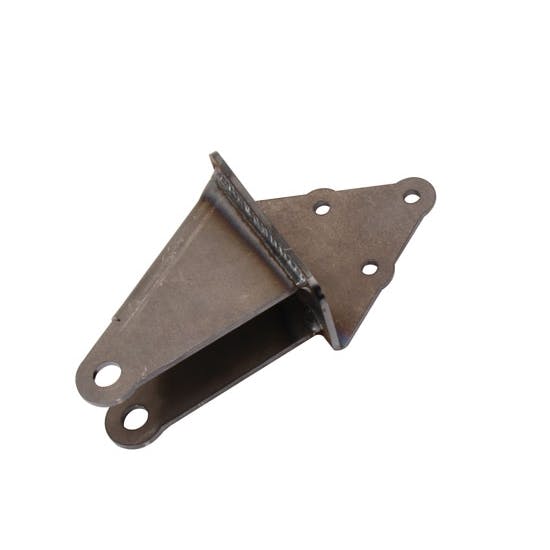

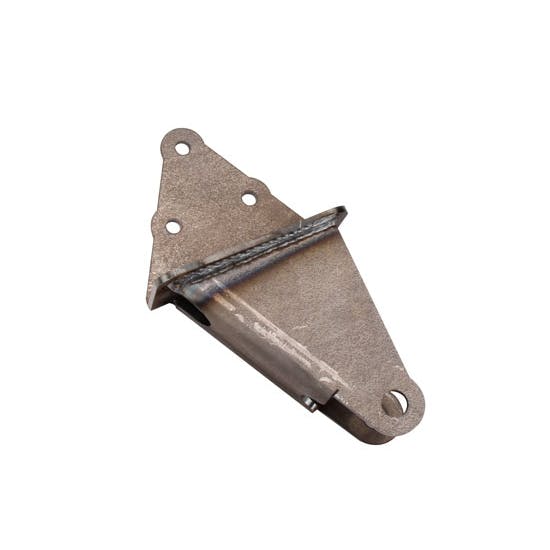

  • Bolt-on frame brackets and shock crossmember
  • 11” steel-bodied coil-over shocks
  • For this 60" housing when using our Cut-To-Fit axles, You will need to cut one at 30-5/8" (long axle) and one at 28-1/4" (short axle).
  • Pre-cut ready to go axles Part Numbers:
    Part # 91046117 for Pre-Cut 30-5/8” long axle
    Part # 91046116 for Pre-Cut 28-1/4” long axle

Frame rail features include:

  • Laser cut from 7-gauge steel plate
  • Replicates shape and dimensions of the original Chevy frame
  • Welded on a rail fixture to ensure proper shape
  • Ground and sanded to prep for finishing
  • For '47-'54 1/2 pickups

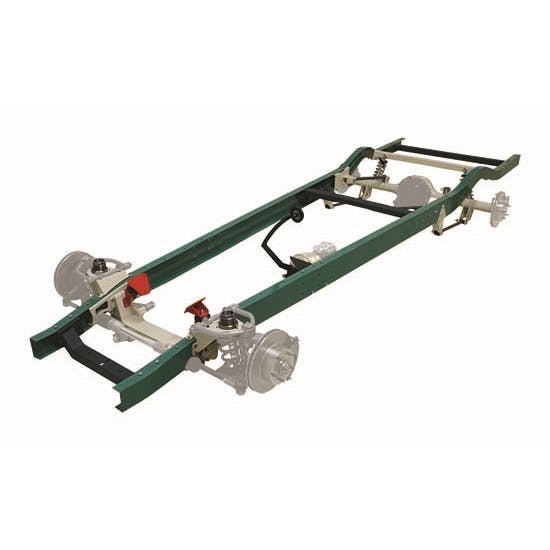

NOTE: Finish will be plain steel, not powder coated as shown. Third member, axle shafts, front suspension components, and rear disc brake kit are shown in the photo for reference only, but are not included as part of this kit and are available separately.

Charts

Specifications

KEY SPECS
MFG. Part #9161947
BrandSpeedway Motors
GENERAL
Sold in QuantityKit
