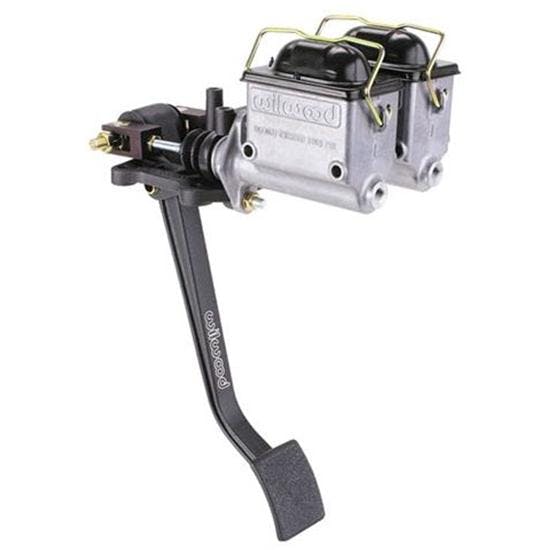

Wilwood Reverse Swing Mount Dual Master Cylinder Pedal Assembly
- Includes steel pivots & mounting studs
- Features an aluminum frame & arm construction
- The master cylinders have single 1/8" NPT outlets
$367.65
/kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Firewall Position, Brake Pedals Included
- Includes steel pivots & mounting studs
- Features an aluminum frame & arm construction
- The master cylinders have single 1/8" NPT outlets
- Pedal arm measures 11-7/8" from center of pivot to end of pedal
- Positions master cylinders inside the firewall away from engine heat
Comes as a Kit
View Kit Components
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 91029972 Details
Wilwood 91029972 Details
Dual reverse pedal mounts two brake master cylinders with a bias balance bar. Wilwood's clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias. It can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. 6.25 to 1 pedal ratio. Master cylinders have single 1/8" NPT outlets.
- Positions master cylinders inside the firewall away from engine heat
- Aluminum frame and arm construction
- Steel pivots and mounting studs
- Anti-skid pedal pad
Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.
Charts
910-29972 Instructions (PDF)
Specs
- Pedal Arm is 11-7/8" from center of pivot to end of pedal
- Overall lengthof pedal is 14-1/2"
- Length of mount bracket is 4-5/8"
- Width of mount bracket is 5-3/16"
- Height of mount bracket is 3-1/8"
- Mount bolt pattern is 3" front to rear and 4-1/4" side to side
- Master cylinder mount pattern is 2-1/4" center to center vertical
- The length of the master cylinder from the mounting flange is 5"
Wilwood 91029972 Specifications
Wilwood 91029972 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91029972 |
| Brand | Wilwood |
| Brake System Type | Disc |
| Reservoir Type | Integral |
| GENERAL | |
| Position | Firewall |
| Master Cylinder Mount Type | Reverse |
| Pedals Included | Brake |
| Master Cylinder Count | 2 |
| Outlet Count | Single |
| Outlet Fitting | 1/8"-27 NPT |
| Master Cylinder Material | Aluminum |
| Overall Length | 5" |
| Overall Width | 5.19" |
| Overall Height | 3.12" |
| Brake Booster Included | No |
| Balance Bar | Yes |
| Sold in Quantity | Kit |
| Notes | Includes pedal and two master cylinders. |
