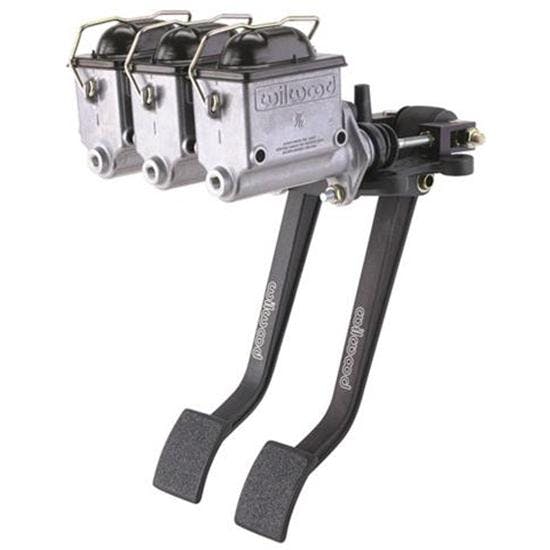

Wilwood Reverse Swing Triple Master Cylinder Pedal, 5.1:1
Wilwood Reverse Swing Triple Master Cylinder Pedal, 5.1:1
Wilwood

|

#91029977

Wilwood Reverse Swing Triple Master Cylinder Pedal, 5.1:1

  • Features steel pivots & mounting studs
  • Has an aluminum frame & arm construction
  • It combines the brake & clutch pedals into one unit
See More

Type:

Dual Pedal Kit / 5.1:1 Ratio

Dual Pedal Kit / 6.2:1 RatioDual Pedal Only / 5.1:1 RatioDual Pedal Only / 6.2:1 RatioSingle Pedal Kit / 6.25:1 RatioSingle Pedal Only/ 6.25:1 Ratio

$531.10

/kit

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Firewall Position, Single Outlet Count

  • Features steel pivots & mounting studs
  • Has an aluminum frame & arm construction
  • It combines the brake & clutch pedals into one unit
  • Engineered to position itself inside the firewall away from engine heat
  • The clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #91029977
BrandWilwood
Brake System TypeDisc
Reservoir TypeIntegral
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 91029977 Details

Wilwood's racing brake/clutch pedal assemblies are the result of years of hands-on experience, input from racers and chassis builders, and design, material selection and manufacturing techniques that result in durable, lightweight components. They incorporate ergonomics without sacrificing performance, and practical requirements without adding weight.

  • Combines the brake & clutch pedals into one unit
  • Positions M/C inside the firewall away from engine heat
  • Aluminum frame & arm construction
  • Steel pivots & mounting studs
  • Anti-skid pedal pads
  • Clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias
  • Bias can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustment

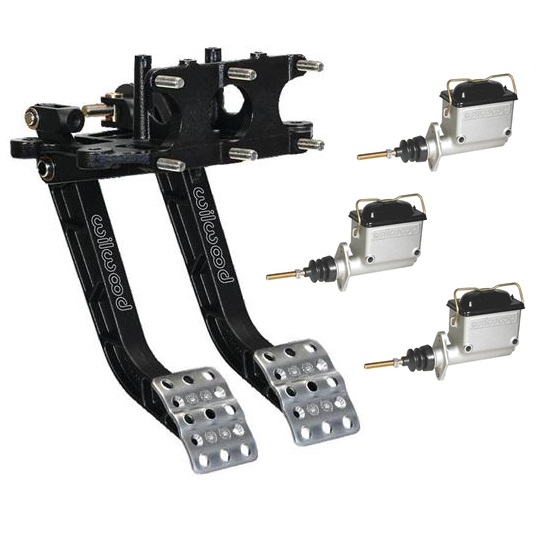

Tri reverse mount master cylinder pedal assembly has both clutch and brake pedals with balance bar for dual brake master cylinders.

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.

Charts

Specs

  • Pedal Length:  10" (from pivot to end)
  • Master Cyl. Outlet:  Single, 1/8" NPT



Wilwood 91029977 Specifications

KEY SPECS
MFG. Part #91029977
BrandWilwood
Brake System TypeDisc
Reservoir TypeIntegral
GENERAL
PositionFirewall
Master Cylinder Mount TypeReverse
Pedals IncludedClutch/Brake
Master Cylinder Count3
Outlet CountSingle
Outlet Fitting1/8"-27 NPT
Master Cylinder MaterialAluminum
Bolt Hole Pattern7.50" x 3.00"
Pedal Length10"
Brake Booster IncludedNo
Balance BarYes
Sold in QuantityKit
NotesIncludes double pedal assembly with choice of three master cylinders.

Ratings & Reviews

5

1 Review

Write A Review

5

1 reviews

5

1

4

0

3

0

2

0

1

0

Filter by Ratings

Very good quality perfect for my modified

5.0

4 years ago

Crew chief mark

Milwaukee wi

Verified

Put in new setup in 2022 in a dirt modified. Pedals move easy and the balance bar is super easy to adjust and use

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

6 Questions • 6 Answers

What's the difference between the 5.1:1 and 6.2:1?

by Bigbird33

• 7 years ago

1 answer

View Answer

Running a speedway gm caliper setup on front, and have a 8 inch rear, possibly run a disc setup as well. Will Ben running not speedways hydraulic throwout bearing for trans. What sizes would I need? Oh and when specifying sizes t shows 750, 875, or 1000? Thanks guys for help!

by Rudy

• 8 years ago

1 answer

View Answer

How do you change out one of the master cylinders?

by Mark

• 10 years ago

1 answer

View Answer

Is it possible to incorporate a power brake booster of some sort to this Wilwood Reverse Swing Triple Master Cylinder System?

by Butch

• 10 years ago

1 answer

View Answer

What front and rear master cylinder bore size to use with a GM single piston disc/drum application I have a hot rod and I'd like to know what front and rear master cylinder bore size I need to use with Wilwood 5.1.1 reverse swing pedal kit. I have GM 82-92 single piston camaro disc in front and 1986 S10 blazer drum in the rear. thank you

by Pat13

• 12 years ago

1 answer

View Answer

Can you mount a remote fill for clutch and brakes with this setup ??

by kooldady

• 12 years ago

1 answer

View Answer

6 of 6 questions shown
