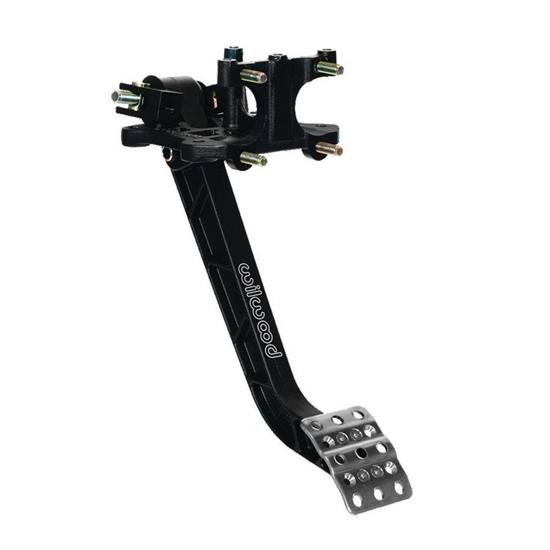

Wilwood 340-12509 Dual Master Cylinder Adj Brake Pedal, Rev. Swing Mnt
Wilwood 340-12509 Dual Master Cylinder Adj Brake Pedal, Rev. Swing Mnt

Wilwood 340-12509 Dual Master Cylinder Adj Brake Pedal, Rev. Swing Mnt

Universal Fit, Firewall Position, Reverse Master Cylinder Mount Type, Brake Pedals Included

1 Review | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 340-12509 Dual Master Cylinder Adj Brake Pedal, Rev. Swing Mnt
Wilwood 340-12509 Dual Master Cylinder Adj Brake Pedal, Rev. Swing Mnt
Wilwood 340-12509 Dual Master Cylinder Adj Brake Pedal, Rev. Swing Mnt
Wilwood 340-12509 Dual Master Cylinder Adj Brake Pedal, Rev. Swing Mnt
X
Wilwood 340-12509 Dual Master Cylinder Adj Brake Pedal, Rev. Swing Mnt
Wilwood 340-12509 Dual Master Cylinder Adj Brake Pedal, Rev. Swing Mnt
Zoomed In Image
Part # 83534012509
Save 7%
$163.83
$176.94
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Assembly is designed to mount two brake master cylinders with a bias balance bar and positions the master cylinders inside the firewall
  • Pedals are made from forged aluminum with a ladder style construction
  • Pedal pad is a special adjustable design that allows fine-tuning of the pedal location and clearance
  • 6.25 to 1 ratio is offered in this unit to suit your mounting and leverage requirements
  • Mounted length measure 12.06"

Details

Position:
Firewall
Master Cylinder Mount Type:
Reverse
Pedals Included:
Brake
MFG. Part #:
340-12509
Mounted Length:
12.06"
Material Type:
Aluminum
Finish:
EDP Coated
Color:
Black
Sold in Quantity:
Each
Mount Position:
Swing
Mount Facing:
Reverse
Balance Bar:
Yes
Pedal 1 Length:
11.71"
Pedal 1 Ratio:
6.25 to 1
GTIN Code:
889545028454

Info

Wilwood's new Adjustable Reverse Mount Pedal assembly mounts two brake master cylinders with a bias balance bar and positions the master cylinders inside the firewall and away from engine heat. forged aluminum pedal arms with ladder style construction. The pedal pad is a special adjustable design that allows fine-tuning of the pedal location and clearance. Wilwood's clevis and pivot pin balance bar provide smooth and accurate settings of the brake pedal bias. It can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. 6.25 to 1 ratio is offered in this unit to suit your mounting and leverage requirements.

Charts

Installation Instructions (PDF)
