Product Summary

Universal Fit, Steel, Natural, Square Port Flange Style

  • If you are looking for the power of headers, a distinctive look and the dependability of cast iron then these Tru-Ram manifolds are the hot setup
  • Provides a tight-fit profile for steering and clearance issues
  • Enjoy the performance of tube-headers with the nostalgic look of the ram horn
  • Fits most Small Block Chevy cylinder heads including angle plug heads
  • Large 2-1/2" Corvette sized outlet further enhances performance

Key Specs

MFG. Part #9300300
BrandTru-Ram Manifolds

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

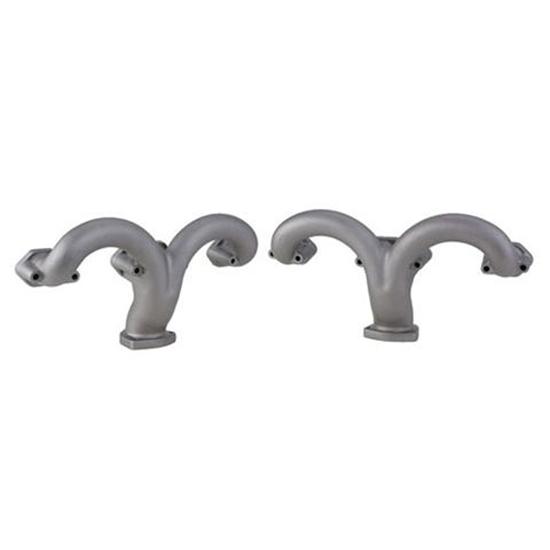

If you're looking for the power of headers, a distinctive look and the dependability of cast iron, we have the hot setup for small-block Chevys: the Tru-Ram® exhaust manifold. We started with a clean slate and designed an exhaust manifold that will give you looks and performance never before available in cast iron.

  • provides a tight-fit for steering and clearance issues
  • Flows better than original Corvette manifolds
  • Same performance as tube headers with classic ram horn styling
  • Offers a distinctive look
  • 2-1/2" collector uses standard reducers or tight tube extensions
  • Includes mounting hardware and gaskets

Note: The exhaust port size is square and large enough for most round port heads. It measures 1.375" x 1.375" and should be sufficient for most small block cylinder heads. Variation in location of spark plugs on aftermarket heads makes it impossible to verify that the Tru-Ram® will fit all heads on the market, but it will clear most straight and angle plug heads.

  • 3-1/2 " from cylinder head surface to outside point
  • 3-1/2 " from bolt center to top of manifold
  • 5-1/2 " from manifold bolt center to bottom of collector
  • 2-1/2 " collector uses standard header reducers
  • 3-1/2 " from cylinder head surface to outside point
  • 3-1/2 " from bolt center to top of manifold
  • 5-1/2 " from manifold bolt center to bottom of collector
  • 2-1/2 " collector uses standard header reducers



Application

  1. Fits great in a variety of street rod and vintage truck applications – particularly those with Mustang II-type suspensions.
  2. Tru-Ram®s® will not clear original-location steering boxes in 1935-1940 Fords or 1955-57 Chevy cars.

Charts

Specs


CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Specifications

KEY SPECS
MFG. Part #9300300
BrandTru-Ram Manifolds
GENERAL
Material TypeSteel
FinishNatural
Flange StyleSquare Port
Collector Diameter2-1/2 Inch
Gasket(s) IncludedYes
Header Dimension A3.80"
Header Dimension B7.15"
Header Dimension C18.56"
Hardware IncludedYes
Sold in QuantityPair
NotesWill not work with GM "fastburn" heads.
