#9300301
Tru-Ram® SBC Exhaust Manifolds, Unpolished Stainless
by
Tru-Ram Manifolds11 Reviews
|
26 Questions
- These investment cast stainless steel ram horn manifolds are perfect for any hot rod
- Stainless steel material prevents corrosion
- Enjoy the performance of tube-headers with the nostalgic look of the ram horn
See More
$405.99
pair
In Stock
$450.00
Save $44.01
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Stainless Steel, Natural
- These investment cast stainless steel ram horn manifolds are perfect for any hot rod
- Stainless steel material prevents corrosion
- Enjoy the performance of tube-headers with the nostalgic look of the ram horn
- Fits most Small Block Chevy cylinder heads including angle plug heads
- Large 2-1/2" Corvette sized outlet further enhances performance
See more details
Key Specs
MFG. Part # | 9300301 |
Brand | Tru-Ram Manifolds |
Material Type | Stainless Steel |
Finish | Natural |
Collector Diameter | 2-1/2 Inch |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyTru-Ram Manifolds 9300301 Details
Tru-Ram Manifolds 9300301 Details

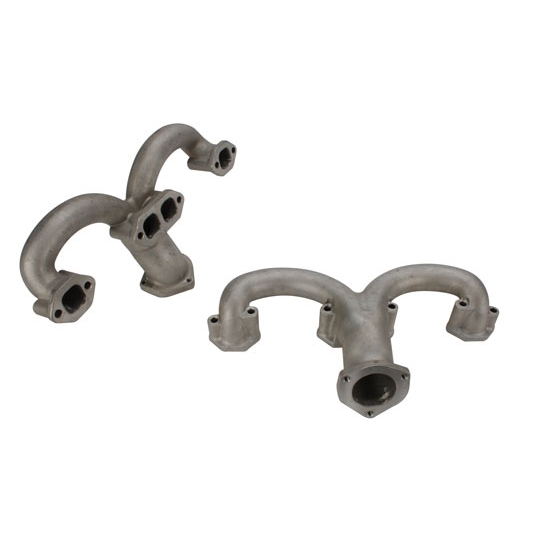

The hobby was amazed by the design, quality and performance of our Small Block Chevy cast iron Tru-Ram® exhaust manifolds. Little did everyone know 'Speedy' Bill had more up his sleeve. These investment cast stainless steel ram horn manifolds feature an as-cast, unpolished finish for a distinctive look. Enjoy the performance of tube-headers with the nostalgic look of the ram horn, along with the low maitenance characteristics that stainless steel provides!
- provides a tight-fit to minimize steering and clearance issues
- Same performance as tube headers with classic ram horn styling
- Offers a distinctive look
- Fits most round port SBC cylinder heads
- Works with most straight or angle plug heads
- 2-1/2" collector size
- Includes stainless mounting hardware and gaskets
- 3-1/2 " from cylinder head surface to outside point
- 3-1/2 " from manifold bolt center to top of header
- 5-1/2 " from manifold bolt center to bottom of collector
- Exhaust ports are a square configuration just under 1.375 " wide and tall
- 3-1/2 " from cylinder head surface to outside point
- 3-1/2 " from manifold bolt center to top of header
- 5-1/2 " from manifold bolt center to bottom of collector
- Exhaust ports are a square configuration just under 1.375 " wide and tall
Application
- These do not clear the steering box on 1935-1940 Fords or 1955-1957 Chevy cars.
The exhaust port size is square and large enough for most round port heads. It measures 1.375" x 1.375" and should be sufficient for most small block cylinder heads. Variation in location of spark plugs on aftermarket heads makes it impossible to verify that the Tru-Ram®® will fit all heads on the market, but it will clear most straight and angle plug heads.
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Tru-Ram Manifolds 9300301 Specifications
Tru-Ram Manifolds 9300301 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 9300301 |
Brand | Tru-Ram Manifolds |
Material Type | Stainless Steel |
Finish | Natural |
Collector Diameter | 2-1/2 Inch |
GENERAL | |
Flange Style | Square Port |
Gasket(s) Included | Yes |
Header Dimension A | 3.55" |
Header Dimension B | 7.00" |
Header Dimension C | 18.50" |
Hardware Included | Yes |
Sold in Quantity | Pair |
