Tru-Ram® SBC Exhaust Manifolds, Polished Stainless

#9300302

Tru-Ram® SBC Exhaust Manifolds, Polished Stainless

Name: Tru-Ram® SBC Exhaust Manifolds, Polished Stainless
Brand: Tru-Ram Manifolds
SKU: 9300302
Price: 640.99 USD
Availability: InStock
Rating: 4.9 (19 reviews)

19 Reviews

18 Questions

Classic rams horn style exhaust manifold designed for great classic looks with better flow than stock manifolds
Features Corvette style 2-1/2-inch outlet for added flow and performance
Fits most Gen 1 small block Chevy heads with straight or angle plug design

Finish:

Polished SS

Unpolished Cast Iron

$640.99

/pair

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Universal Fit, Stainless Steel, Polished

Classic rams horn style exhaust manifold designed for great classic looks with better flow than stock manifolds
Features Corvette style 2-1/2-inch outlet for added flow and performance
Fits most Gen 1 small block Chevy heads with straight or angle plug design
Investment cast stainless steel construction with superior corrosion protection with the fitment of block-hugger style tube headers comes highly polished
Includes manifold flange gaskets and mounting hardware for an easy installation

See more details

Key Specs

MFG. Part #	9300302
Brand	Tru-Ram Manifolds
Material Type	Stainless Steel
Finish	Polished
Collector Diameter	2-1/2 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

The exhaust port size is square and large enough for most round port heads. It measures 1.375" x 1.375" and should be sufficient for most small block cylinder heads. Variation in location of spark plugs on aftermarket heads makes it impossible to verify that the Tru-Ram® will fit all heads on the market, but it will clear most straight and angle plug heads.

3-1/2" from cylinder head surface to outside point
3-1/2" from bolt center to top of manifold
5-1/2" from manifold bolt center to bottom of collector
2-1/2" collector uses standard header reducers

Note that there are fitment issues when attempting to fit to Tri-5 Chevys and 1935-1940 Fords with stock steering box.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Tru-Ram Manifolds 9300302 Details

Smooth exterior finish with no exposed brackets or bolt holes for a clean appearance
Fits most factory Gen 1 SBC heads including Vortec heads
Ample clearance for both straight and angled spark plug applications
1-3/8-inch by 1-3/8-inch square port design can be port matched to your heads
Increased flow over stock manifolds and utilizes Corvette-style 2-1/2-inch 3-bolt collector
Investment cast stainless steel construction prevents corrosion
Design tucks collector close to block like a “block hugger” header
Includes fasteners and exhaust flange gaskets for an easy installation
Polished stainless steel surface finish provides a beautiful show look finish

Low Profile Exhaust Manifolds That Provide Great Clearance with A Classic Appearance

If you’ve spent any time at all installing tubular steel headers on a car you know what a pain in the backside they are. They often hang too low, hit your steering box, or must pass through your steering or clutch linkage, and don’t even get us started on blown out header gaskets and must constantly check and tighten header bolts. Are tubular headers worth the hassle? Many will say yes, and we will agree if the power level warrants it, or it is a custom set made for the exact chassis and engine combination (which often costs big money!). For most of us however, a good “block hugger” header will suffice. These header designs are known for being easier to install and have few drawbacks (except those often leaking header gaskets).

But even the block hugger header can look out of place in some builds, especially those early pre-war cars with open engine bays. You can give your small block Chevy the best of both worlds by using our smooth looking investment cast stainless steel Tru-Ram® rams horn exhaust manifolds. These clean sheet design ram horn manifolds provide the same “block hugging” design while offering a period exhaust manifold look that fits right in. Not to mention the stainless steel construction has many benefits over the tubular steel header, including less chance of cracking and higher corrosion resistance. Add in our high flow design with large 2-1/2-inch Corvette-style exhaust collector and it is easy to see how our Tru-Ram® rams horn exhaust manifolds are hard to beat for the price, clearance, and great fit.

Fits Most Straight and Angle Plug Gen 1 Small Block Chevy Cylinder Heads

The factory cast iron SBC exhaust manifold will often have extra mounting holes/ears cast into it, either causing fitment issues or just plain ugly looking. Stock manifolds also are cast for specific chassis and engine combinations, again potentially causing fitment issues. Our Tru-Ram® rams horn stainless steel exhaust manifolds are designed from the start to fit most factory head castings, be they straight plug or angled plug, while providing greater flow and power production than the typical stock SBC exhaust manifold. With plenty of material around the 1-3/8-inch square exhaust flange port you can easily port match these to your heads for greater exhaust flow. The larger 2-1/2-inch Corvette style 3-bolt collector works with standard 3-bolt collector gaskets included in our 2-1/2-inch 3-bolt flanges, or 2-1/2-inch to 2-inch 3-bolt reducers. We also offer our 2-1/2-inch reducers in stainless steel versions if you're looking to run a complete stainless steel exhaust system on your ride.

This complete kit includes a pair of investment cast polished stainless steel Tru-Ram® ramhorn manifolds, stainless steel socket head cap screw mounting hardware for the manifold and steel studs with brass nuts for the collector, and exhaust flange gaskets. Everything you need to easily install your ram horn manifolds without the stress and frustration of trying to fit tubular headers. Plus, there’s no denying these Tru-Ram® ramhorn manifolds look so right on SBC powered hot rods and classic trucks. Choose from the polished stainless steel manifolds offered here, or we also offer an unpolished stainless steel model as well. If you prefer a cast iron version of our Tru-Ram® rams horn manifolds we offer those too.

Guides & Documents

Exhaust Manifolds Sizing Chart (9300302)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

Tru-Ram Manifolds 9300302 Specifications

KEY SPECS
MFG. Part #	9300302
Brand	Tru-Ram Manifolds
Material Type	Stainless Steel
Finish	Polished
Collector Diameter	2-1/2 Inch

GENERAL
Flange Style	Square Port
Gasket(s) Included	Yes
Inlet Size	1-3/8-inch square port
Hardware Included	Yes
Sold in Quantity	Pair
Notes	Will not work with GM D-shape "fast burn" heads CAST 304 STAINLESS STEEL.

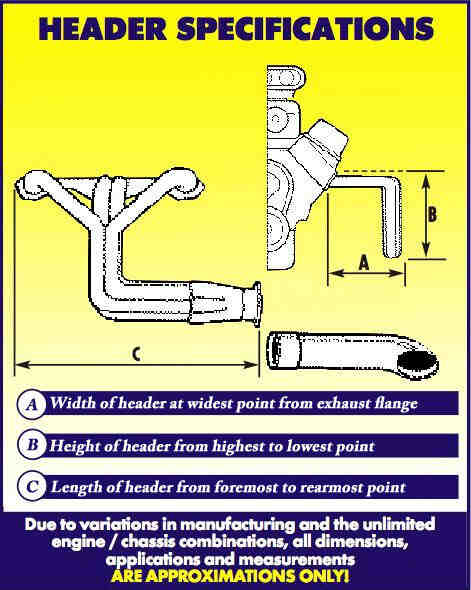

Header Dimension A	3.50"
Header Dimension B	9.00"
Header Dimension C	19.25"

Ratings & Reviews

4.9

19 Reviews

Overall Assessment

The product has received overwhelmingly positive reviews for its quality, fit, and aesthetics. Users have praised the item's impeccable fit and finish, which allows for easy plug changes and movement, even in tight spaces. The polished stainless versions were described as 'fantastic', contributing positively to the overall look of vehicles, with several customers highlighting how pleasing the product appears in the engine compartment. The manifold's material quality is deemed top-notch, with one reviewer applauding its resistance to color change. Users also voiced their preference for these over traditional headers, citing their superiority in terms of maintenance, and they express satisfaction with replacing old, mismatched parts with this product. Finally, the product's practicality has been acknowledged as they fit perfectly and have no leaks, enhancing the user experience.

Write A Review

19 reviews

Filter by Ratings

Sort Reviews

Look great

5.0

10 months ago

Michigan

Verified

The product seems quality and polished nicely

Would Recommend

Very nice

5.0

10 months ago

Michigan

Verified

Quality casting

Would Recommend

Rams Horn manifolds

5.0

11 months ago

Oldschool2

Verified

These manifolds were very nice, would have made a great addition to my roadster. Sadly, had to return due to a fitment issue. Would not clear my steering gear box.

Would Recommend

I would buy this product again

5.0

11 months ago

Rob

Melbourne Australia

Verified

Great quality, very happy with the product, item is as described

Would Recommend

Good fit, nice heavy materials

5.0

a year ago

Gene

Phoenix AZ, Anchorage AK

Verified

Chosen after considering "block hugger" headers due to better clearance for standard size starter on my small block chevy motor going into my 1940 Ford.

Would Recommend

Great Product

5.0

a year ago

Steve

Australia

Great fitment, all bolts supplied, made it a very easy transaction

Would Recommend

Awesome product

5.0

2 years ago

Bob T

Pacific, Mo

Verified

I have these on my 19 31 Ford Model A, coupe… They look awesome!

Would Recommend

Great product fit and finish!

5.0

3 years ago

Kerbs

Oly Washington

Verified

Small block Chevy in 1939 Chevy Pickup. Fit great, accessible to change plugs and move in a very tight space.

Would Recommend

I would buy this product again

5.0

3 years ago

Squirrel

Cobourg Ontario Canada

Verified

I got these for our 62 chev pickup…they replaced old mismatched ram horns that were on the 350 in it…straight bolt on and no leaks…Very happy I chose them over header's

Would Recommend

GREAT Manifolds

5.0

5 years ago

Mad max

Washougal Washington

Verified

These manifolds fit perfectly right out of the box. Face was surfaced flat, holes lined up, no leaks.

Would Recommend

Load More Reviews

Showing 10 of 19 reviews
