Product Summary

Universal Fit, Straight Axle Front Suspension Type

  • Engineered to fit the modified 1949-1954 Chevy spindles, 91032100
  • They are 28% stronger, 19% stiffer, 28% heavier
  • Has a .375” wall thickness, and is made from 1026 DOM steel tubing (std axle is .25” wall)
  • Highly recommended for off-road / drag race applications
  • Will give you the added insurance that when the light turns green you can hang your hoops without worry

Key Specs

BrandSpeedway Motors
Front Suspension TypeStraight Axle
Control Arm StyleNot Included
Spring TypeLeaf Spring

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

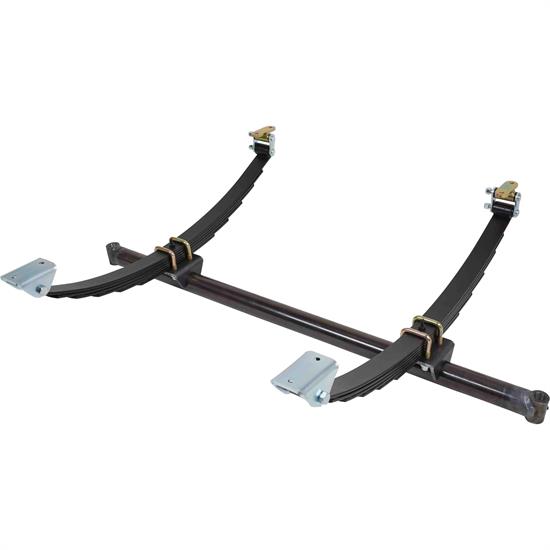

We did the hard work for you and put together all of our best gasser front end pieces in convenient kit form to save time and money on your next build. These Gasser Straight Axle Kits included everything you will need to get your old school straight axle setup right!

Axle:

One for show, one for go! Speedway brings to market a heavier duty application of their popular gasser axle selection. When your gasser tribute car has gotten a bit out of hand on your quarter-mile slips, you may want the added assurance that a stronger 3/8” thick wall axle provides. Available in 44, 46, 48, 50 and Custom inch widths for Chevy spindles, these axles are ideal for serious drag cars and heavier vehicle applications like 1955+ trucks and 1955-63 Chevys. A 28% improvement in strength will give you the added insurance that when the light turns green you can hang your hoops without worry.

  • Fits modified 1949-1954 Chevy spindles, 91032100
  • 28% stronger, 19% stiffer, 28% heavier
  • .375” wall thickness, 1026 DOM steel tubing (std axle is .25” wall)
  • Recommended for off-road / drag race applications
  • Springs:

Achieve a smoother, more comfortable ride with Speedway Super Glide™ springs for your 1928-1934 Ford front end! The ends of the spring leaves of a Super Glide™ spring have a unique nylon button which works as a dry lubricant to significantly reduce leaf-to-leaf friction. This allows the spring to move more easily, thereby giving a softer, quieter ride.

  • Quality tempered steel
  • Standard eye spring
  • Bare steel finish

Hardware:

Kit mounts 1-3/4" wide leaf springs to 2" O.D. tube axle and frame. Will mount 2 springs with 3/4" I.D. eyes. Includes 1-3/4" wide zinc plated shackles # 910-33323-ZINC with nylon bushings # 910-33323-1, U-bolts # 916-33011, frame mounts # 916-35007, shackle mounts # 916-35008, axle pads # 916-35009, and all hardware.

Specifications

KEY SPECS
BrandSpeedway Motors
Front Suspension TypeStraight Axle
Control Arm StyleNot Included
Spring TypeLeaf Spring
GENERAL
Suspension Height AdjustmentStock Height
Shock TypeNot Included
FinishNatural
Bolt PatternNot Applicable
Rotor DiameterNot Included
Spindle StyleChevy/GM Stock
Dropped SpindlesNo
Dropped AxleNo
Dropped Control ArmsNo
Front Leaf Spring StyleSemi-Elliptical Gasser
Spindles IncludedNo
Steering IncludedNo
Sold in QuantityKit
Welding RequiredYes
