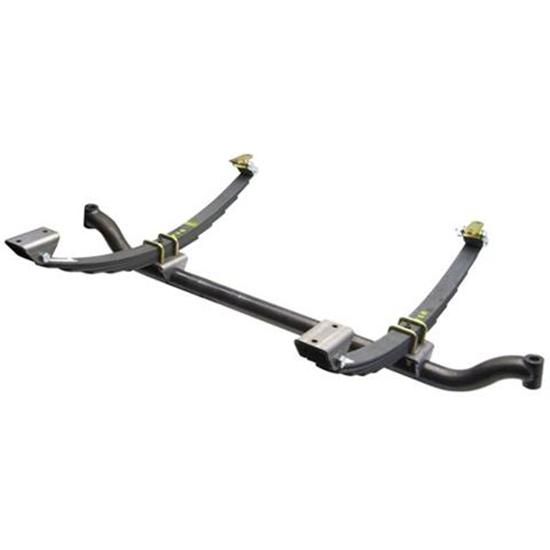

Dropped Semi-Elliptical Gasser Axle Kit, Chevy Spindle, 4 Inch Drop
Dropped Semi-Elliptical Gasser Axle Kit, Chevy Spindle, 4 Inch Drop
Universal Fit, Straight Axle Front Suspension Type, 4 Inch Lowered Suspension Height Adjustment
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Dropped Semi-Elliptical Gasser Axle Kit, Chevy Spindle, 4 Inch Drop
X
Part # 91639032
$409.99
kit
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
- Semi-Elliptical 'Gasser' front end kit
- '49-'54 early Chevy spindles
- Universal application with adjustable spring pads for different frame widths
- Welding required
- Includes 4" dropped axle-2" O.D., two axle pads and U-Bolts, two 1 3/4" spring shackles with bushings, two frame mounting brackets, two 31 1/4" six-leaf springs 1 3/4"
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Next
Details
Front Suspension Type:
Straight Axle
Suspension Height Adjustment:
4 Inch Lowered
Control Arm Style:
Not Included
Shock Type:
Not Included
Spring Type:
Leaf Spring
Finish:
Natural
Bolt Pattern:
Not Applicable
Rotor Diameter:
Not Included
Spindle Style:
Chevy/GM Stock
Dropped Spindles:
No
Dropped Axle:
Yes
Dropped Control Arms:
No
Front Leaf Spring Style:
Semi-Elliptical Gasser
Spindles Included:
No
Steering Included:
No
MFG. Part #:
91639032
Welding Required:
Yes
Info
Black steel, universal application, professionally engineered. Spring pads to be welded to the axle by the builder and are therefore adjustable on the axle for different frame widths. For 1949-54 Chevy style spindles.
Gasser Build Info (PDF)
Kit includes:
- 48" double bend tube axle w/ welded ends (0.250" wall tubing)
- two axle pads and U-bolts
- two 1-3/4" spring shackles w/ nylon bushings
- two frame mounting brackets
- two 32" 6-leaf springs
- all hardware
Item Details
'for ''49-''54 Chevy Spindles'Specs
- Spring Arch: 4-3/4"
- Total Leaves: 6 (each 1/4" thick)
- Spring Rate: 400 lbs/inch
- Axle Tube: 2.00" O.D.
- Axle Width: 48" kingpin center-to-center
Charts
916-3903 Instructions (PDF)
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
Related Products
-
Dropped Gasser Front Axle, Ford Spindle, 48 Inch Wide, 4 Inch Drop$299.99 -
Dropped Gasser Front Axle, Chevy Spindle, 48 Inch Wide, 4 Inch Drop$299.99
What's In The Kit
Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
-
Dropped Gasser Front Axle, Chevy Spindle, 48 Inch Wide, 4 Inch DropPart # 91035115Qty x 1
-
Super Glide® Front Spring, 48 Inch Axle, Standard Eye, PlainPart # 91033029Qty x 2
-
Semi-Elliptical Straight Axle Mounting HardwarePart # 91639030Qty x 1
