Product Summary

Universal Fit, 600 lbs. Spring Rate, 12" Free Height

    See more details

    Key Specs

    MFG. Part #12HT600
    Spring Rate600 lbs.
    Free Height12"
    Inside Diameter2.5"
    Material TypeSteel
    See more specs

    Need To Know

    Quick and Easy Returns

    Return Policy

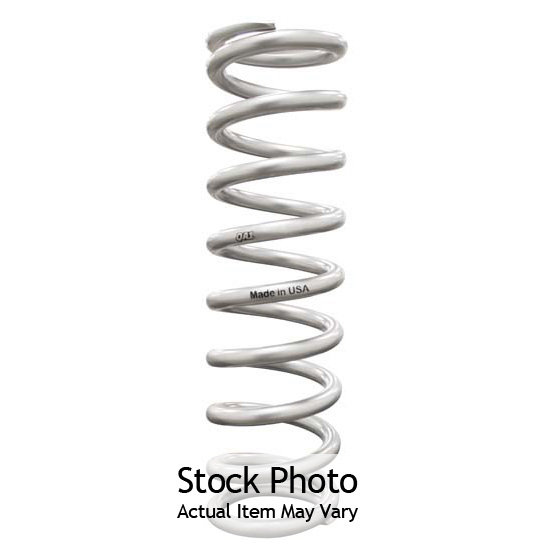

    QA1 12HT600 Details

    Made in the USA, these 2.5" I.D. high travel springs are manufactured from specially designed high-tensile, chrome silicon alloy spring wire, which allows them to have fewer coils and a smaller wire diameter. As a result, these springs are lighter and have increased travel due to the larger distance between the coils. These lighter springs reduce unsprung weight and react faster, optimizing suspension performance.

    In addition, this high-grade material, along with careful heat-treating and post-processing, allows for greatly improved fatigue life, and the coil design allows the springs to be compressed to coil-bind without affecting spring rate or free height.

    • 600 lbs spring rate
    • 2.50" I.D.
    • 12" height
    • Sold each

    Guides & Documents

    QA1 12HT600 Specifications

    KEY SPECS
    MFG. Part #12HT600
    BrandQA1
    Spring Rate600 lbs.
    Free Height12"
    Inside Diameter2.5"
    Material TypeSteel
    FinishPowder Coated
    ColorSilver
    Spring Rate Range600 - 699 lbs.
    GENERAL
    Sold in QuantityEach
    GTIN Code806990113054
    Progressive Rate SpringNo
    Coil Spring End (A)Square
    Coil Spring End (B)Square
