Product Summary

Universal Fit, 100 - 199 lbs. Spring Rate Range, Steel

    Key Specs

    MFG. Part #12HT170
    BrandQA1
    Spring Rate170 lbs.

    Need To Know

    Free Shipping on Orders Over $149

    Quick and Easy Returns

    Details

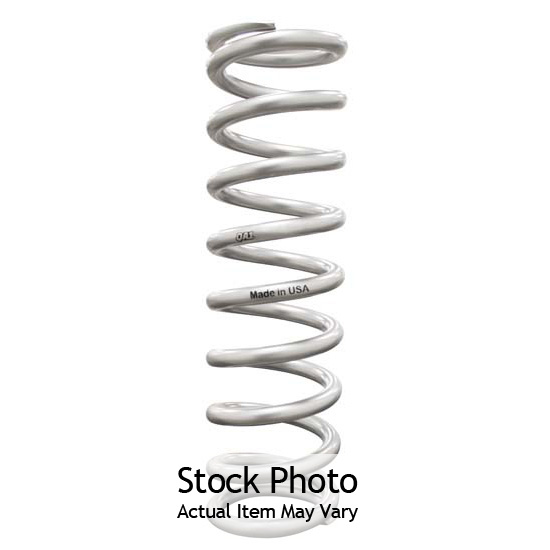

    Available in 7", 9", 10", 12", 14" and 16" lengths, QA1 offers an assortment of high travel springs with a silver powder coated finish. Made in the USA, these 2.5" I.D. high travel springs are manufactured from specially designed high-tensile, chrome silicon alloy spring wire, which allows them to have fewer coils and a smaller wire diameter. As a result, these springs are lighter and have increased travel due to the larger distance between the coils. These lighter springs reduce unsprung weight and react faster, optimizing suspension performance.

    In addition, this high-grade material, along with careful heat-treating and post-processing, allows for greatly improved fatigue life, and the coil design allows the springs to be compressed to coil-bind without affecting spring rate or free height.

    These new high travel springs are silver powder coated and ground at both ends for straight, consistent and accurate operations. In addition, all QA1 springs are lifetime guaranteed to remain within 2% of the original free height and rate under normal operating conditions.

    • All QA1 springs are manufactured using the highest quality materials for high strength, consistency and long life
    • All QA1 springs go through intensive manufacturing processes to ensure consistency, accuracy and durability
    • All QA1 springs are ground at both ends to ensure straight, consistent and accurate operation
    • All QA1 springs are clearly marked with the free length of the spring and spring rate for quick and easy identification
    • QA1's high travel springs are proudly made in the USA
    • All QA1 springs are lifetime guaranteed to remain within 2% of the original free height and rate under normal operating conditions

    Specifications

    KEY SPECS
    MFG. Part #12HT170
    BrandQA1
    Spring Rate170 lbs.
    GENERAL
    Spring Rate Range100 - 199 lbs.
    Free Height12.00"
    Inside Diameter2.50"
    Material TypeSteel
    FinishPowder Coated
    ColorSilver
    Progressive Rate SpringNo
    Coil Spring End (A)Square
    Coil Spring End (B)Square
    GTIN Code806990112903
    Sold in QuantityEach
