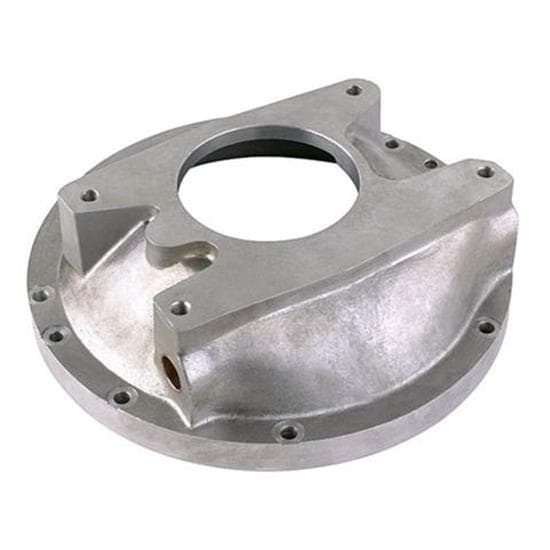

Offenhauser 5272 GM Manual Trans to Flathead V8 Adapter, Ford Clutch
Ford Flathead V8, Many Transmissions, 4.765" Overall Width, 0.50" Overall Thickness, Aluminum
- For mating a GM manual transmission to a Ford Flathead V8
- Aluminum construction
- 1/2" thickness
- 4.6735" O.D.
- 4.765" in width
Get more performance and driveability out of your Ford Flathead V8 by hooking it up to a GM manual transmission! This adapter allows you to easily install a GM 3-, 4-, or even 5-speed transmission behind your 1932-1948 Ford or 1939-1950 Mercury Flathead V8 engine.
Permits use of your Ford clutch release shaft, fork and throwout bearing. Throwout bearing must be used with a Long-style pressure plate.
Installation Notes (PDF)
- Uses Flathead pressure plate, flywheel and throwout bearing.
- Clutch disc should match transmission being used.
- Clearancing to the inside of the bellhousing is required if using a 9 inch or larger Long-style pressure plate that contains counterweights.
- If used with a Chevy S10 T-5, you will need the following:
- Throwout bearing adapter sleeve 916-29517
- Flathead-style release bearing 910-25620
- GM T-5 Installation Notes (PDF)
- If used with a GM 3- or 4-speed, you will need the following:
- Bushing and throwout bearing kit 916-29500
- Adapter is 3-7/8" thick front-to-back
- Pilot bushing adaper I.D. is 0.590", .660" O.D., and length is .790"
- 1" thick mounting flange
560-5272 Instructions (PDF)
NotesUse your Ford clutch release shaft, fork and throwout bearing. Throwout bearing must be used with a Long-style pressure plate. Includes pilot bushing adapter.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
