Product Summary

Universal Fit, 4-Barrel Carburetor Barrels, 650 CFM CFM

  • Ideal for a wide variety of small block and big block engines
  • Features annular flow primary boosters to improve off idle and cruising performance
  • This 650 CFM carburetor has a square flange that allows it to be fitted to many different intake manifolds
  • It comes with: Metering Jets - Primary .101, Secondary .098; Metering Rods - .070 x .037; Step-Up Spring - orange (5" Hg)
  • The annular flow helps eliminate any flat spots that may happen when the carburetor transitions from idle to full throttle
See more details

Key Specs

Carburetor Barrels4-Barrel
Fuel TypeGasoline
Choke TypeElectric
CFM Range600-699 CFM
CFM650 CFM
See more specs

Need To Know

Quick and Easy Returns

Return Policy

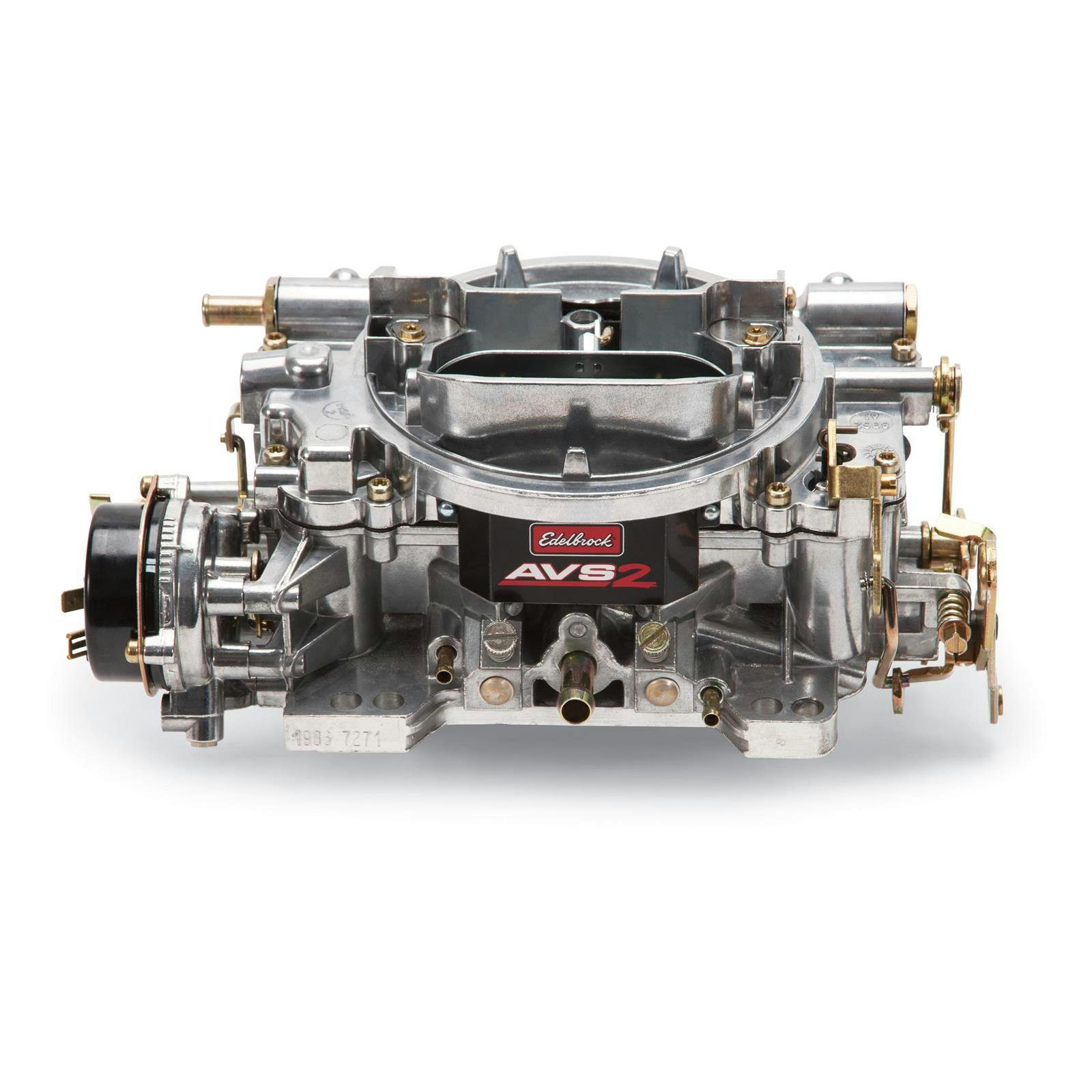

Edelbrock 1906 Details

Edelbrock is introducing their new AVS2 carbs to their already well renowned line of carburetors. This carburetor features annular flow primary boosters to improve off idle and cruising performance. The annular flow helps eliminate any flat spots that may happen when the carburetor transitions from idle to full throttle. With the improvements that Edelbrock has made to these carburetors, they are ideal for a wide variety of small block and big block engines. This 650 CFM carburetor has a square flange that allows it to be fitted to many different intake manifolds. It comes with: Metering Jets - Primary .101, Secondary .098; Metering Rods - .070 x .037; Step-Up Spring - orange (5" Hg).

  • Easy to tune with great drivability
  • 650 CFM
  • Electric choke
  • Sold each

Charts

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Edelbrock 1906 Specifications

KEY SPECS
MFG. Part #1906
BrandEdelbrock
Carburetor Barrels4-Barrel
Fuel TypeGasoline
Choke TypeElectric
CFM Range600-699 CFM
CFM650 CFM
Carburetor Flange Type4-Barrel Square Bore
FinishSatin
Material TypeAluminum
ColorSilver
Secondary TypeMechanical
Fuel Inlet TypeSingle
Gasket(s) IncludedYes
New or RemanufacturedNew
GENERAL
BoosterAnnular
Bolt Hole Pattern5.160" x 5.625"
Primary Jet Size101
Secondary Jet Size98
GTIN Code085347019069
Sold in QuantityEach
