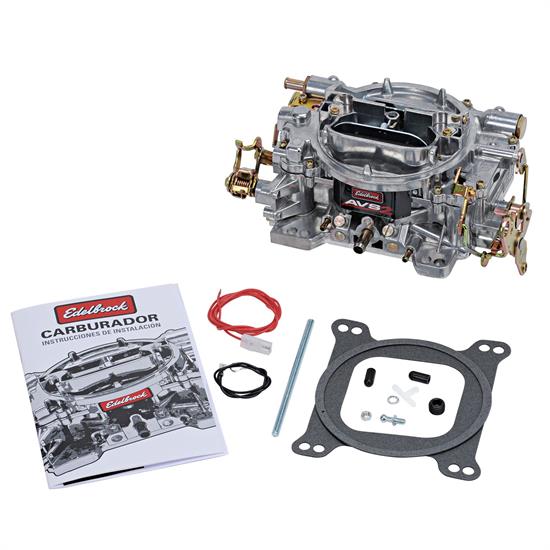

Edelbrock 1912 AVS2 Series Carburetor, Manual Choke, 800 CFM

Edelbrock’s Annular Flow Booster technology brings superior fuel atomization to all high-horsepower small- and big-block engines with the AVS2 800 CFM Manual Choke Carburetor #1912 that is specially calibrated to make power. Annular Flow Boosters deliver near EFI-like drivability that you can feel as soon as you step on the gas. Fuel distribution is refined by eight equally spaced orifices in the booster rings that replace down-leg boosters which simply dump raw fuel into the venturi. Flat spots are completely eliminated, and throttle response in the low- to the mid-RPM range is improved tremendously without sacrificing that top-end power that Edelbrock is known for. The AVS2 is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 carbs have the unique ability to "hold a tune” when compared to other carburetors.

Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. The AVS2 features a two-piece ease-of-tuning design that lets you make float level adjustments or replace internal components without draining the fuel from the carburetor or removing it from the engine. All AVS2 Series carburetors, like Edelbrock’s popular Performer Series and Thunder Series AVS, are designed, manufactured, assembled and calibrated by Edelbrock in the USA.

• Mounting Hole Quantity: 8
• Body Material: Aluminum
• Metering Rod Length: 65 in
• Secondary Jet Diameter: 104 in
• Mounting Hole Diameter: 0.355 in
• Barrel Quantity 4
• Gasket Or Seal Included Yes
• Flange Shape: Square
• Mounting Hardware Included: No
• Spacer Included: No
• Main Venturi Diameter: 1.525 in
• Small Venturi Diameter: 1.630 in
• Body Color: Satin Finish
• Choke Type: Manual
• Maximum Flow Rating: 800 CFM
• Primary Jet Diameter: 104 in

Installation Instructions (PDF)

AVS2 800 CFM Installation Instructions (PDF)
