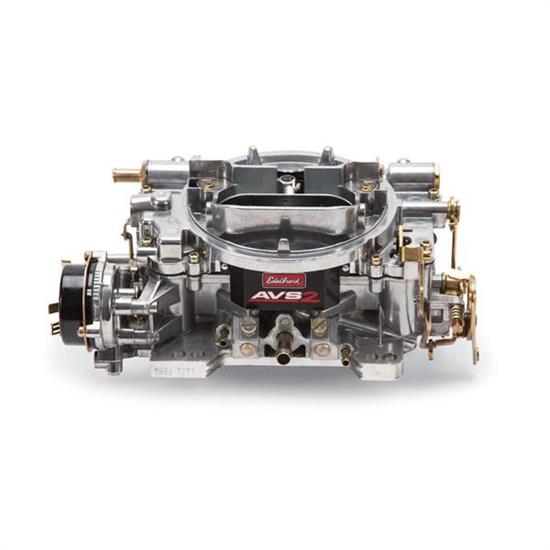

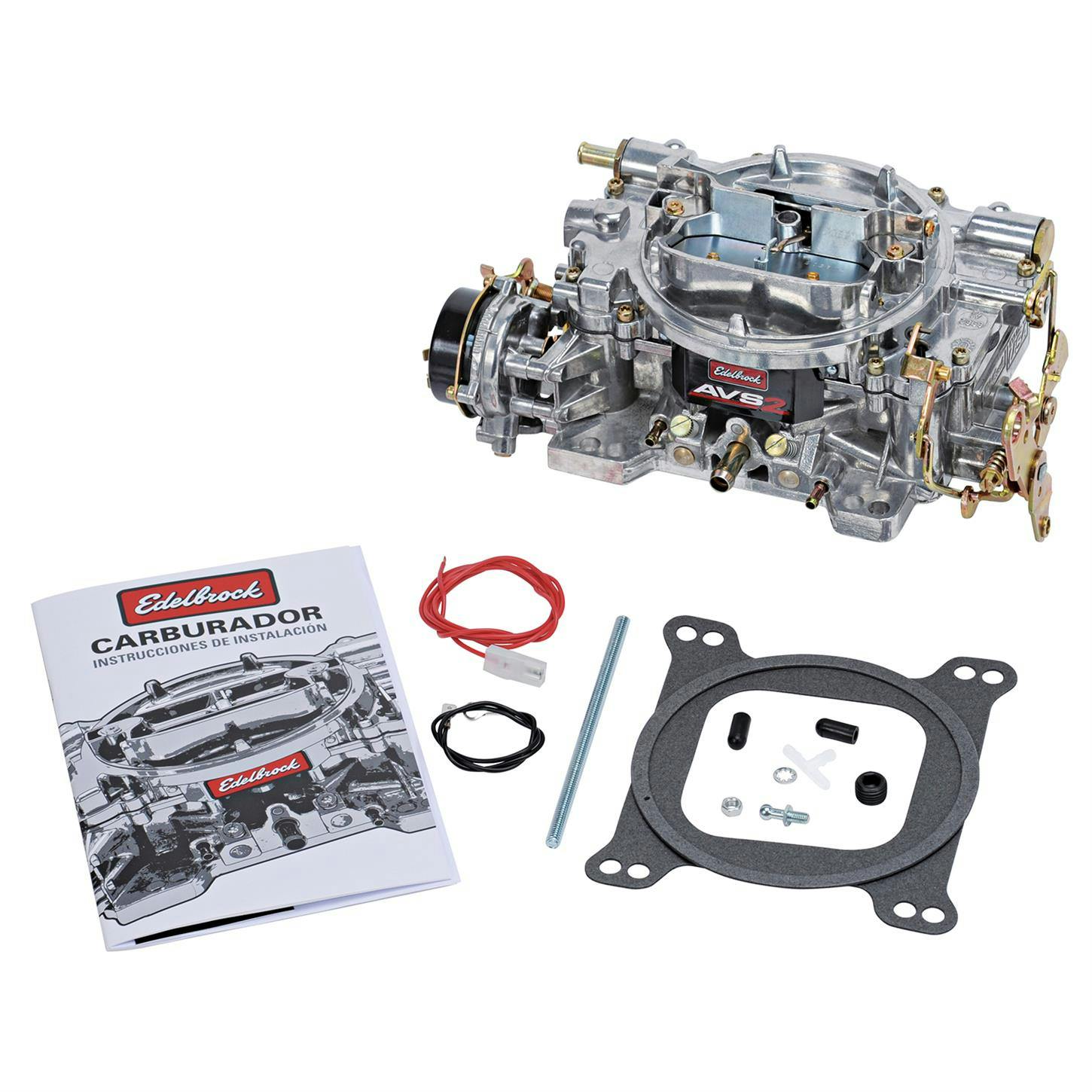

Edelbrock 1901 AVS2 Series 4 Barrel Carb, 500 cfm, Electric Choke

#3251901

Edelbrock 1901 AVS2 Series 4 Barrel Carb, 500 cfm, Electric Choke

Name: Edelbrock 1901 AVS2 Series 4 Barrel Carb, 500 cfm, Electric Choke
Brand: Edelbrock
SKU: 3251901
Price: 529.95 USD
Availability: InStock
Rating: 4.9 (13 reviews)

13 Reviews

1 Question

Comes ready to run right out of the box
The 500 CFM are designed for smaller cubic-inch engines with a single carburetor
Carburetor features annular flow primary boosters to improve off idle and cruising performance

Type:

500 CFM / Electric Choke

500 CFM / Manual Choke 500 CFM (Dual Quad) / Electric Choke 500 CFM (Dual Quad) / Manual Choke 650 CFM / Manual Choke 650 CFM / Electric Choke 800 CFM / Manual Choke 800 CFM / Electric Choke

$529.95

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 4-Barrel Carburetor Barrels, 500 CFM CFM

Comes ready to run right out of the box
The 500 CFM are designed for smaller cubic-inch engines with a single carburetor
Carburetor features annular flow primary boosters to improve off idle and cruising performance
It helps eliminate any flat spots that may happen when the carburetor transitions from idle to full throttle
Includes an electric choke and has a square flange that allows it to be fitted to many different intake manifolds

See more details

Key Specs

Carburetor Barrels	4-Barrel
Fuel Type	Gasoline
Choke Type	Electric
CFM Range	500-599 CFM
CFM	500 CFM

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 1901 Details

Edelbrock is introducing their new AVS2 carbs to their already well renowned line of carburetors. This carburetor features annular flow primary boosters to improve off idle and cruising performance. The annular flow helps eliminate any flat spots that may happen when the carburetor transitions from idle to full throttle. The 500 CFM are designed for smaller cubic-inch engines with a single carburetor. These include both times and full vacuum ports for ignition advance. This 500 CFM carburetor with electric choke has a square flange that allows it to be fitted to many different intake manifolds. This carb is ready to be bolted on and ready to run right out of the box.

Electric choke
500 CFM
Satin finish
Square flange
Sold each

Charts

Installation Instructions (PDF)

Guides & Documents

Carburetors Installation Instructions (3251901)

Determining the Best Performance Carburetor For Your Application

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Edelbrock 1901 Specifications

KEY SPECS
MFG. Part #	1901
Brand	Edelbrock
Carburetor Barrels	4-Barrel
Fuel Type	Gasoline
Choke Type	Electric
CFM Range	500-599 CFM
CFM	500 CFM
Carburetor Flange Type	4-Barrel Square Bore
Finish	Satin
Material Type	Aluminum
Color	Natural
Secondary Type	Mechanical
Fuel Inlet Type	Dual
Gasket(s) Included	Yes
New or Remanufactured	New
Throttle Linkage Type	Universal
Supercharged Application	No

GENERAL
Overall Height	3.25"
Booster	Annular
Bolt Hole Pattern	5.160" x 5.625"
Primary Jet Size	95
Secondary Jet Size	95
GTIN Code	085347019014
Sold in Quantity	Each

Ratings & Reviews

4.9

13 Reviews

Overall Assessment

Customers highly recommend the Edelbrock carburetor, praising its superior performance and usability in lower engine speed applications. They highlighted its excellent quality, claiming it can't be beaten in improvement and functionality. Many appreciated its fit and performance impact, mentioning a noticeable increase in horsepower. A common sentiment among customers was their willingness to repurchase the carburetor, pointing to its steady, reliable performance and effectiveness in enhancing their vehicles' performance. A remarkable feature often mentioned was its immediate, out-of-the-box readiness requiring only minor adjustments. This easily installable product consistently outperforms alternative options, providing better fuel economy and reducing surging issues, thus enhancing their drive experience considerably.

Write A Review

4.9

13 reviews

Filter by Ratings

Sort Reviews

Can't go wrong with edelbrock

5.0

a year ago

Dan

Cave Creek, Az

Verified

Put on AMC 304, really brought engine to life

Would Recommend

Another great Edelbrock product

5.0

a year ago

Jer

Wisconsin

Verified

As advertised. Quality product that ill go through years of use.

Would Recommend

I would buy again if i need

5.0

2 years ago

Robin

Central city ne

Verified

Installed on a 1965 mustang With a 289 engine. Took off a edelbrock 1406 600 CFM which was a little to much for a small 289. Cruises so much better

Would Recommend

Excellent choice for lower rpm engine speeds

4.0

3 years ago

Hubie

Colby Wi.

Verified

I've been a fan of the edlbrock carburetor for years. I replaced a 600hp fitek power adder on a virtually stock vortec 350 Chevy in a 83 square body that I restored. I realized the fitek was too big for my application, surging while idling, poor fuel mileage etc. the truck runs 1700 rpm at 60 mph, the 500 cfm carb is perfect for that. It will rarely see over 3500 rpm. Excellent choice for an application like that.

Would Recommend

Yes I should have got this first.

5.0

5 years ago

Bruce

Medford, or

Verified

I replaced fiteck unit with this.

Would Recommend

Great carb!

5.0

5 years ago

Model A Al

colorado springs

Verified

I've used Edelbrock carbs for decades. The AVS2 with its improvments cant be beat imho!

Would Recommend

Edelbrock carbs are the best!

5.0

5 years ago

DooDaaMan

Omaha, NE

Verified

I installed it on my 1935 Ford with a 5.0 and it feels like I just added 25 more horse power.

Would Recommend

Great carb !!!!!#*

5.0

5 years ago

John

St Pete. FL.

Verified

As advertised.

Yes , I would buy this product again .

5.0

6 years ago

Gene

Lost in Ohio

Verified

Perfect Every time !

Would Recommend

I would buy this again

5.0

6 years ago

Paul

Kemble Ontario Canada

Verified

Replaced the carb on my 55 Chev with a 327 and 5 speed. , everything fit perfectly and car just runs better. Very happy I changed it out.

Load More Reviews

Showing 10 of 13 reviews

Questions & Answers

1 Question • 2 Answers

Sort Questions

Is this based on the Rochester Quadrajet?

by leon

• 7 years ago

2 answers

View Answers

1 of 1 questions shown
