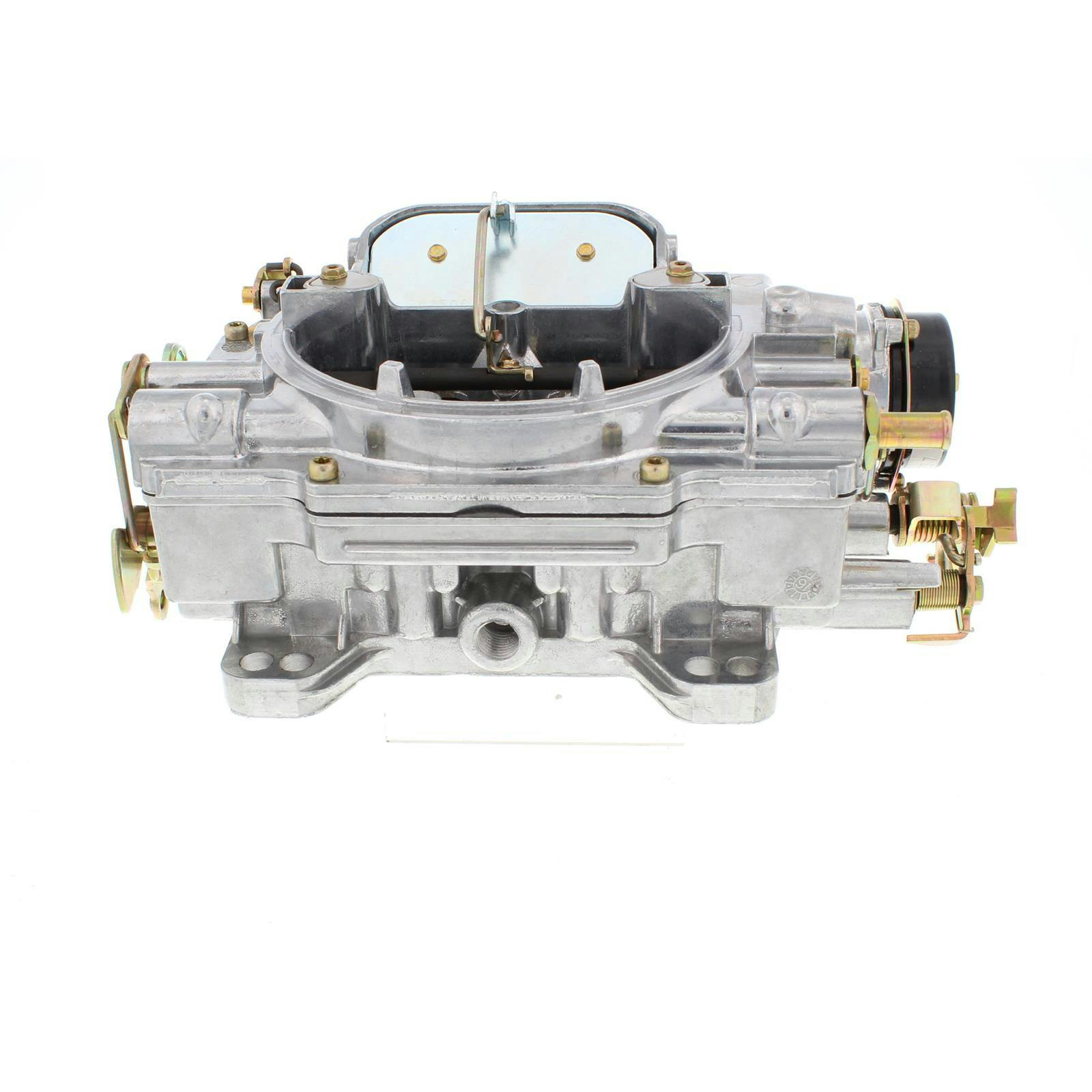

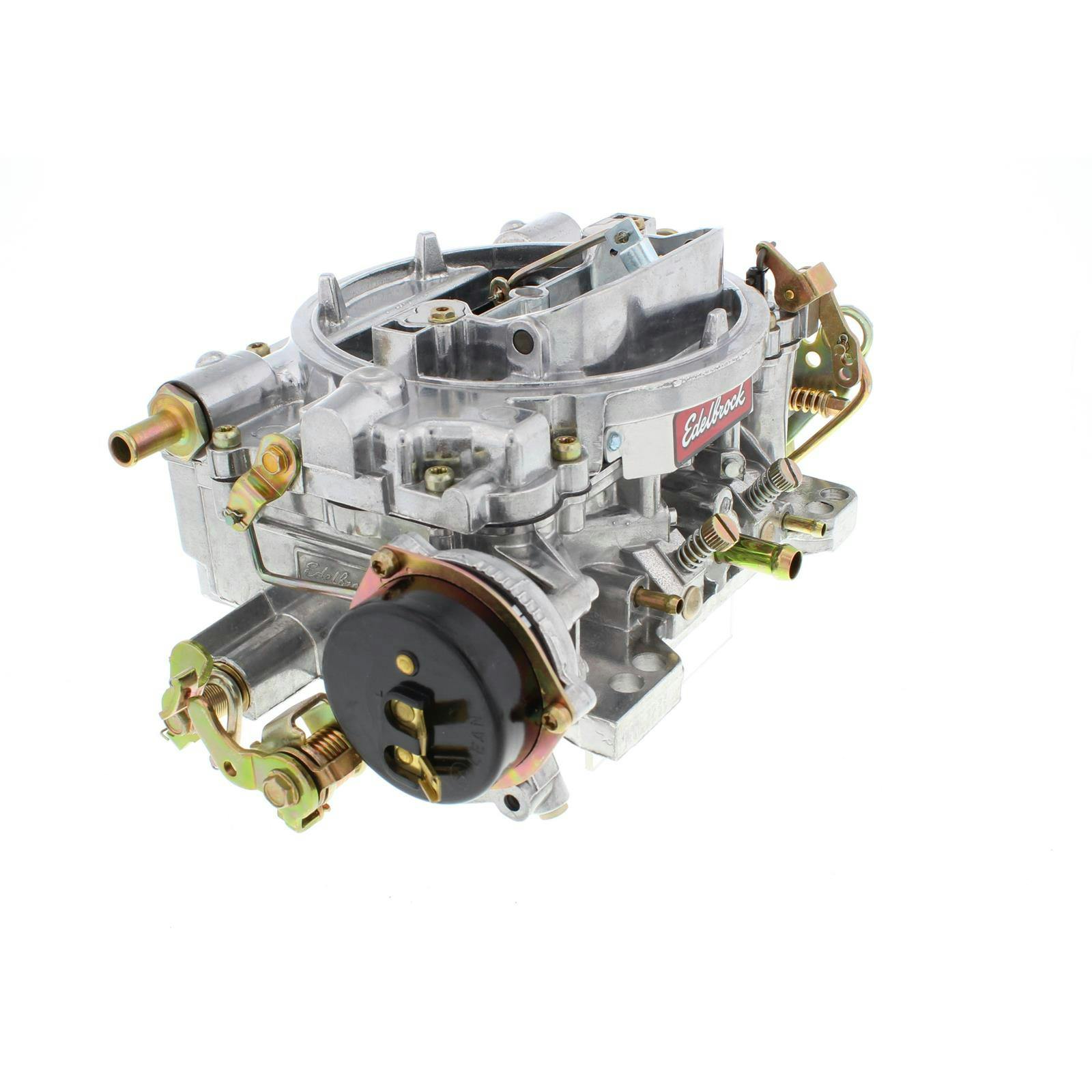

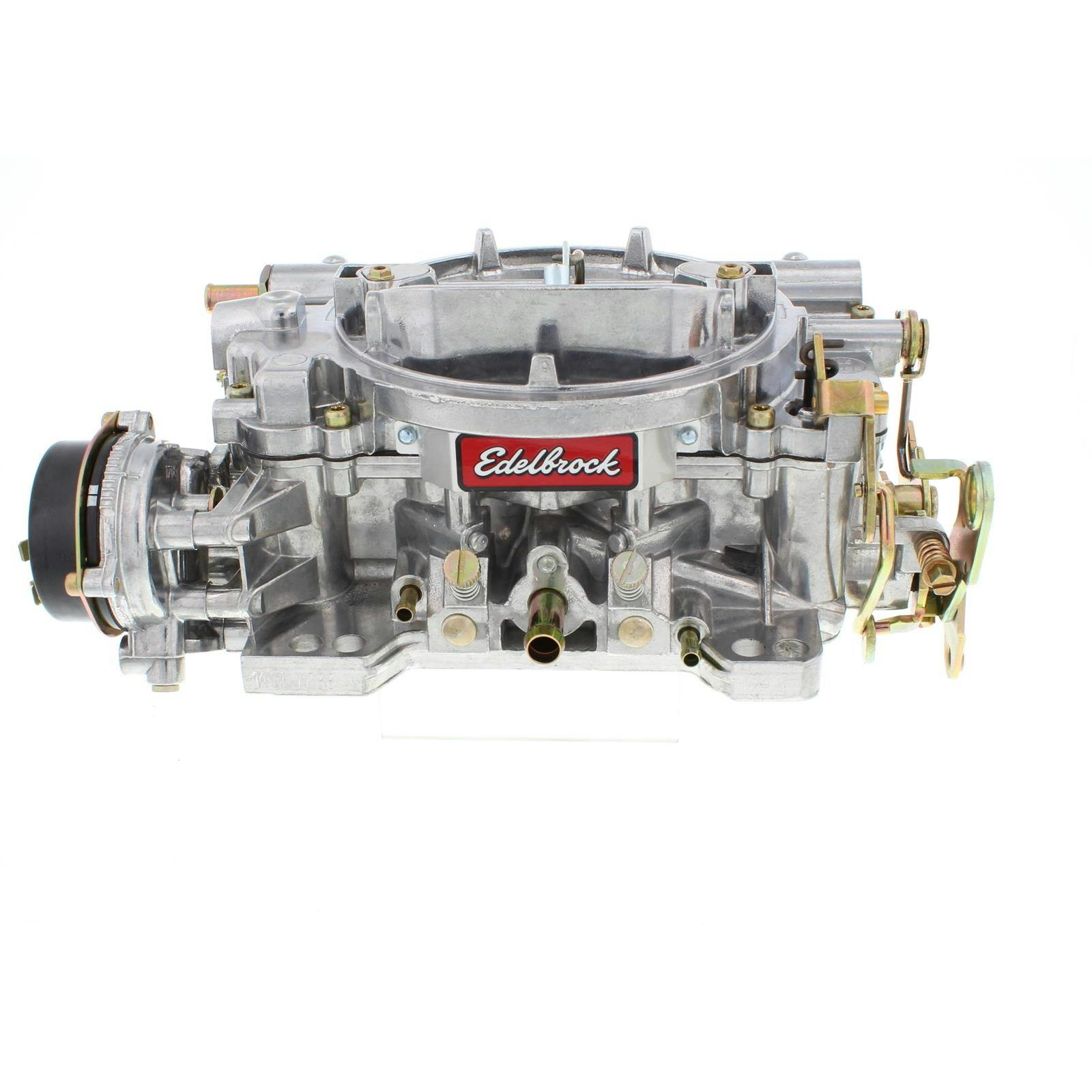

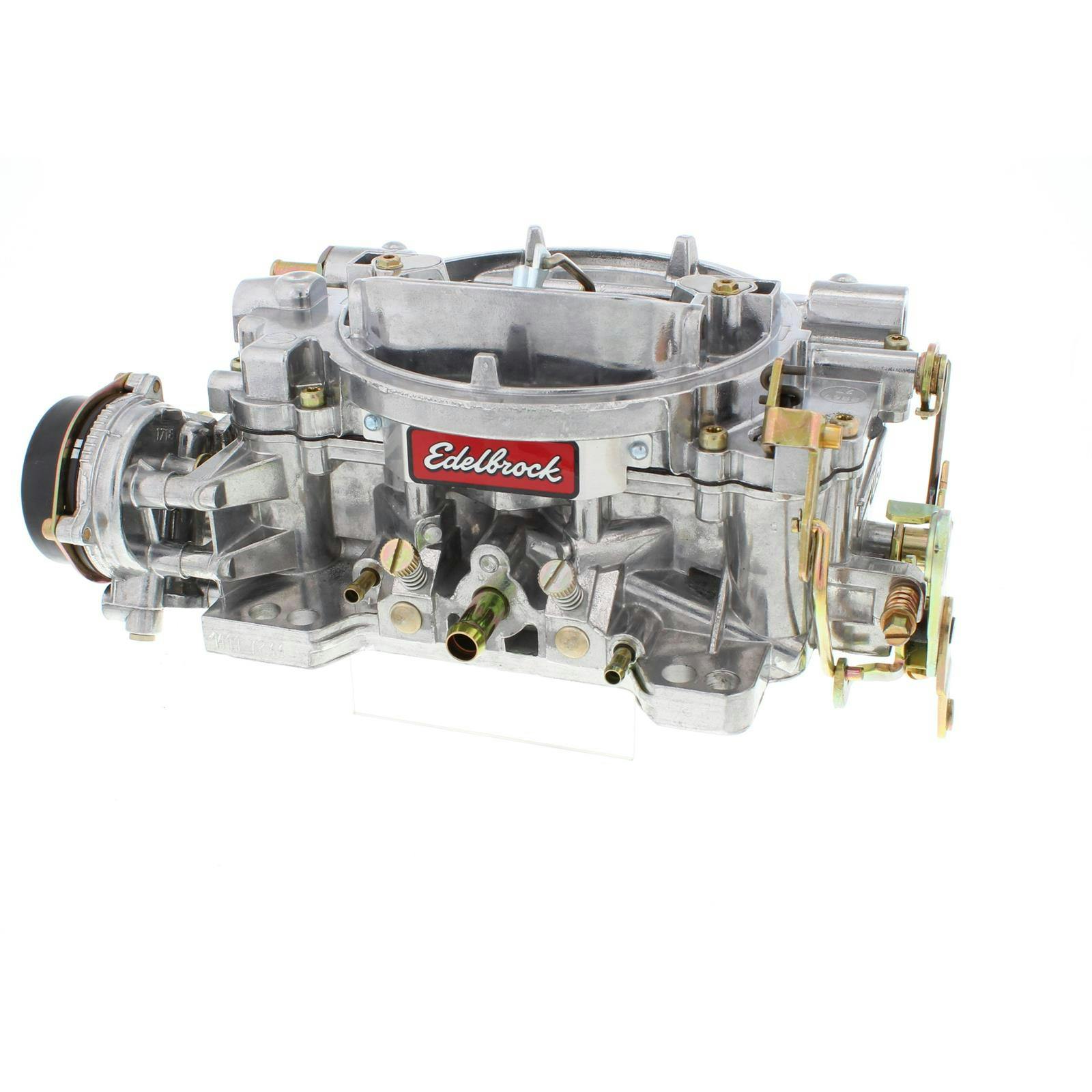

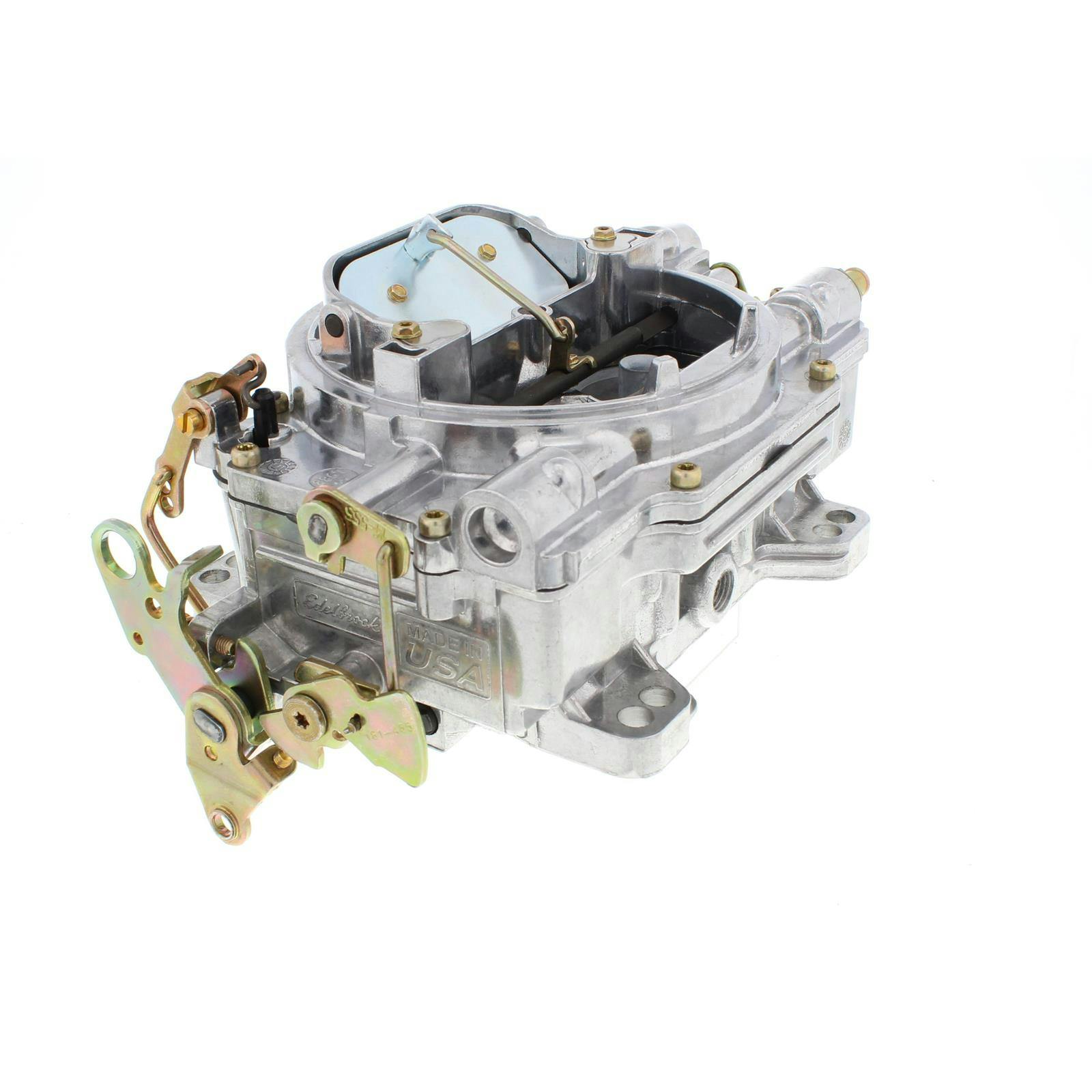

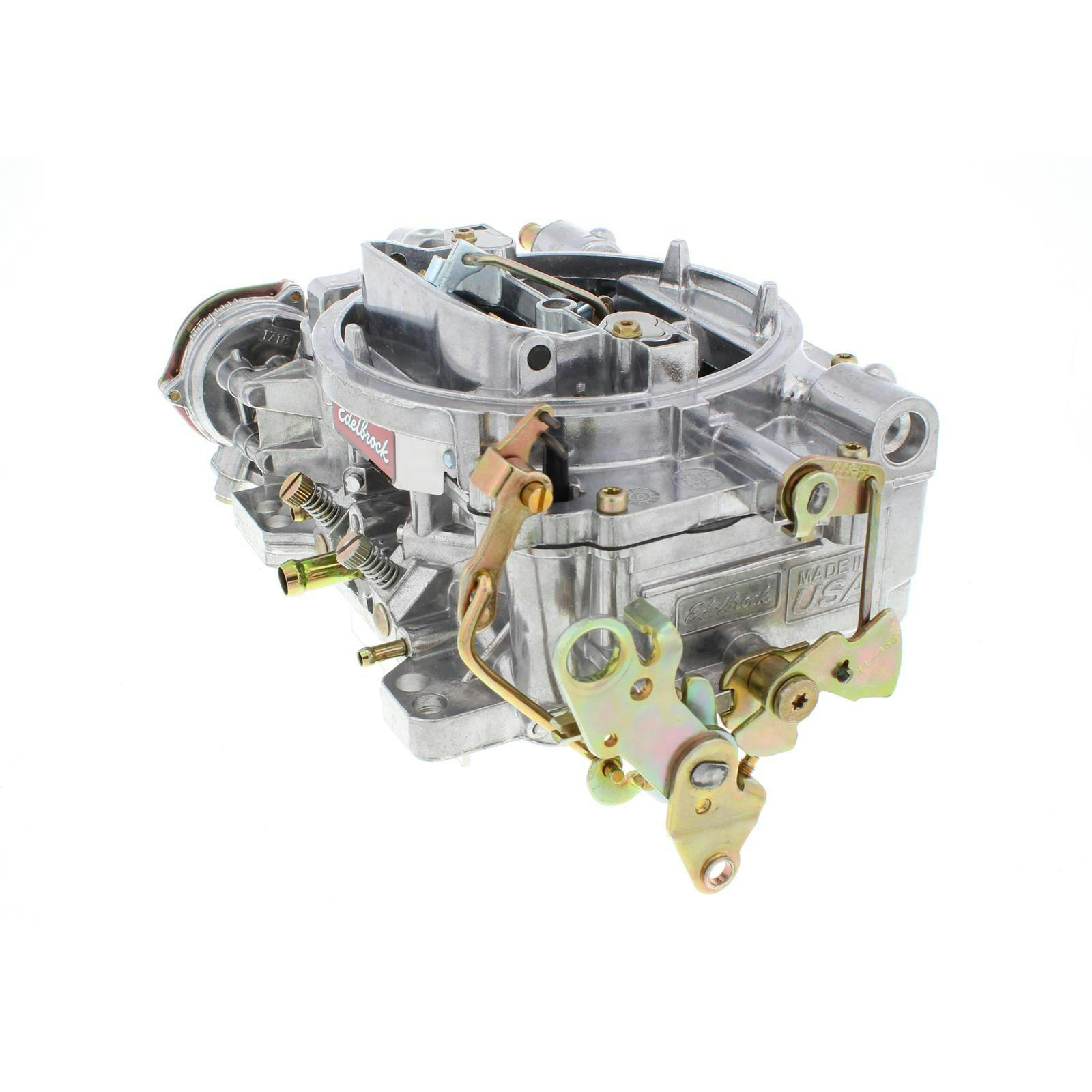

Edelbrock 1411 Performer 750 CFM 4 Barrel Carburetor, Electric Choke

Edelbrock Performer Series four barrel carbs have proven themselves to be easy to tune with great drivability. Whether you need to replace an aging stock 4 barrel carb or are looking for a performance 4 barrel carb to top off your hot rod, the Edelbrock Performer Series carbs are the best choice for performance and value. All Edelbrock products are proudly made in the U.S.A.

Designed for 402 c.i.d. and larger engines with Edelbrock Performer manifolds and other brands of similar design, these four barrel carbs are recommended only for stock to Performer level applications. They are not recommended for use on RPM or Torker II intake manifolds. Calibrated 2% leaner than #1407. Includes an electric choke and detailed instructions. Ford/Mopar throttle adapter arms sold separately.

• Electric choke
• Smooth throttle response throughout the power band
• Uses metering rods to transition between circuits - rods can be changed in seconds without carburetor removal or draining fuel
• Lightweight all-aluminum body is compatible with gasohol and blended fuels
• Includes both timed and full vacuum ports for ignition advance

1. Comes with:

   • Metering Jets - Primary .110, Secondary .107
   • Metering Rods - .075 x .047
   • Step-Up Spring - orange (5 " Hg)

• Bolt-on-and-run performance right out of the box
• Two-piece design means no gaskets below the fuel level for leak-free operation
• Float levels are factory set; adjustments are rarely needed
• Change jets, adjust floats and replace needles/seats without draining fuel or removing carb

Edelbrock 750 CFM 4 Barrel Carburetor Installation Instructions(PDF)
