Product Summary

Long Block Crate Engine Type, 10.0:1 Compression Ratio

    See more details

    Key Specs

    Crate Engine TypeLong Block
    Compression Ratio10.0:1
    Engine Displacement572 cu. in.
    Camshaft TypeHydraulic Roller Tappet
    Cylinder Head MaterialAluminum
    See more specs

    Need To Know

    Made to Order

    This custom item will ship when completed

    Truck Shipment

    Truck shipments must be pre-paid with a credit card, certified check or money order

    Quick and Easy Returns

    Return Policy

    BluePrint Engines PS5720CTC Details

    True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!

    Chevy 572 Pro Series - Dressed Engine - Aluminum Heads - Roller Cam

    Overview

    • HP & Torque: 745 HP / 710 FT LBS
    • Compression Ratio: 10.0:1
    • Aluminum Heads
    • Forged Pistons
    • Roller Cam
    • Forged Crank
    • Part #: PS5720CTC

    Block

    • BluePrint Engines new block casting - tall deck
    • 1 piece rear main seal
    • 4 bolt main
    • 4.500" bore

    Rotating Assembly

    • 4340 forged crank
    • 4.500" stroke
    • 4340 forged rods
    • Forged pistons
    • Hastings piston rings
    • Hydraulic roller cam

    Cylinder Heads

    • Aluminum, 119cc chamber
    • Comp cam pushrods
    • Comp cam rocker arms
    • Melling oil pump

    Cam Specs

    • Cam Type: Roller
    • .647 Intake .647 Exhaust
    • 254 Intake / 262 Exhaust duration
    • @ .050 - 112 degree lobe separation

    Also Includes

    • 1050cfm carb
    • Aluminum, single plane intake manifold
    • MSD Pro Billet distributor
    • Valve covers, oil pan and timing cover
    • Champion spark plugs
    • Spark plug wires
    • Harmonic balancer
    • Dyno test results shipped with engine

    Notes

    Not for use in pollution controlled vehicles.

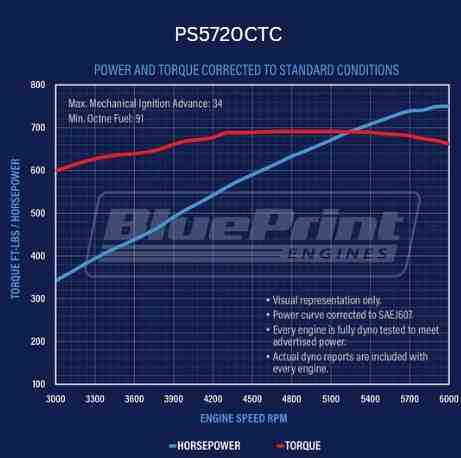

    Charts

    Warranty Information

    Click for details

    CARB Warning

    Follow EPA, CARB, and state regulations for engine changes

    Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

    BluePrint Engines PS5720CTC Specifications

    KEY SPECS
    MFG. Part #PS5720CTC
    BrandBluePrint Engines
    Crate Engine TypeLong Block
    Compression Ratio10.0:1
    Engine Displacement572 cu. in.
    Camshaft TypeHydraulic Roller Tappet
    Cylinder Head MaterialAluminum
    Piston MaterialForged Aluminum
    Crankshaft MaterialForged 4340 Steel
    Carburetor IncludedYes
    Intake Manifold IncludedYes
    Distributor IncludedYes
    Connecting Rod MaterialForged 4340 Steel
    Valve Covers IncludedYes
    Engine BalanceInternal
    Cylinder Heads IncludedYes
    Rear Main Seal Style1-piece
    Throttle Body IncludedNo
    Timing Cover IncludedYes
    Oil Pan IncludedYes
    Water Pump IncludedNo
    Harmonic Balancer IncludedYes
    Flexplate IncludedNo
    Flywheel IncludedNo
    Air Cleaner IncludedNo
    Spark Plugs IncludedYes
    Spark Plug Wires IncludedYes
    Computer IncludedNo
    Wiring Harness IncludedNo
    GENERAL
    Torque710 ft./lbs.
    Horsepower745 horsepower
    Combustion Chamber Volume119cc
    Camshaft Duration (.050 in)254° intake / 262° exhaust
    Camshaft Lift (in).647 intake / .647 exhaust
    Bore x Stroke (in)4.500" x 4.500"
    Warranty30 month / 50,000 miles
    AssembledYes
    Camshaft IncludedYes
    Cylinder Heads119cc
    BlockNew cast block, 4 bolt main
    NotesNew BluePrint block manufactured and machined in the USA. Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR

    Questions & Answers

    6 Questions • 7 Answers

    will that motor fit in my 80 elcamino

    by SS414

    • 6 years ago

    1 answer

    Will this crate engine fit in a 1990 454 ss truck?

    by Martin

    • 7 years ago

    1 answer

    Will my TH400 bolt up in my 69 chevelle or will I need to upgrade my tranny

    by Mike

    • 8 years ago

    1 answer

    I own a '69 Camaro that I am interested in installing this engine in. I already know I want a factory cowl induction hood, but will I have to buy a higher type cowl to clear the air cleaner/carburetor? In other words, is the intake going to allow me clearance to install a factory type cowl induction hood?

    by Gumby

    • 8 years ago

    1 answer

    how many liters is it

    by case

    • 8 years ago

    2 answers

    1 part say hyd roller another says roller

    by j d

    • 8 years ago

    1 answer
