BluePrint BP3479CTF 347 Cubic Inch Crate Engine, Fuel Injected

Ships FREE!

#227BP3479CTF

BluePrint BP3479CTF 347 Cubic Inch Crate Engine, Fuel Injected

415 HP / 415 FT. LBS
BluePrint Engines Aluminum Cylinder Heads
10:1

Level Of Dress:

#2 Base Dressed - EFI

#1 Long Block #3 Deluxe Dressed - Carbureted#4 Deluxe Dressed - Carbureted - Black Pulley Kit

$9,299.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Deluxe Crate Engine Crate Engine Type, Oil Pan Included

415 HP / 415 FT. LBS
BluePrint Engines Aluminum Cylinder Heads
10:1
Hydraulic Roller Cam - .543 Intake / .554 Exhaust Lift and 218 Intake / 226 Exhaust Duration @ .050 - 112° LSA
Forged Pistons

See more details

Key Specs

Crate Engine Type	Deluxe Crate Engine
Compression Ratio	10.0:1
Engine Displacement	347 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines BP3479CTF Details

DESCRIPTION:

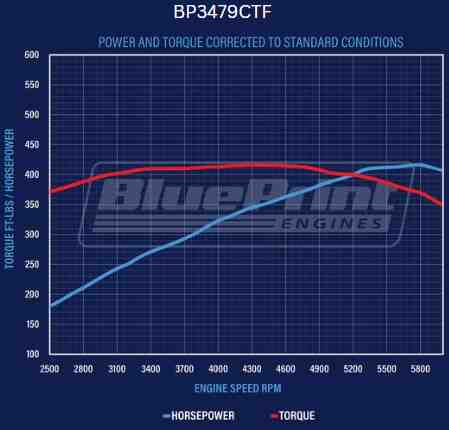

HP & Torque: 415 HP / 415 FT LBS
Compression ratio: 10.0:1
Aluminum heads
Hydraulic roller cam

BLOCK:

NEW BluePrint Engines' high-strength cast iron block
Increased deck thickness and strength webbing
Priority main oiling
4-bolt main
1-piece rear main seal
Improved water jacket design

ROTATING ASSEMBLY:

3.400" stroke
Forged 5.400" connecting rods
Forged pistons
28oz external balance

CYLINDER HEADS:

BluePrint aluminum cylinder heads - HP9009
60cc chamber
2.02" intake/1.60" exhaust valves
190cc intake/60cc exhaust runners

CAM SPECS:

Roller cam
.543 intake / .554 exhaust
218 intake / 226 exhaust duration
@ .050 - 112-degree lobe separation

IGNITION TIMING:

10-16 degrees initial, 32-34 total

ALSO INCLUDES:

Front Sump Oil Pan
Intake Manifold
EFI System
Distributor
Harmonic Balancer
Valve Covers
Timing Cover

NOTES:

Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.

Guides & Documents

Crate Engines Installation Instructions (227BP3479CTF)

Crate Engines Technical Information (227BP3479CTF)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

BluePrint Engines BP3479CTF Specifications

KEY SPECS
MFG. Part #	BP3479CTF
Brand	BluePrint Engines
Crate Engine Type	Deluxe Crate Engine
Compression Ratio	10.0:1
Engine Displacement	347 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Piston Material	Forged Aluminum
Crankshaft Material	Cast Steel
Carburetor Included	No
Intake Manifold Included	Yes
Distributor Included	Yes
Connecting Rod Material	Forged Steel
Valve Covers Included	Yes
Engine Balance	External
Cylinder Heads Included	Yes
Throttle Body Included	Yes
Timing Cover Included	Yes
Oil Pan Included	Yes
Water Pump Included	Yes
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	Yes
Air Cleaner Included	No
Spark Plugs Included	No
Spark Plug Wires Included	No
Computer Included	Yes
Wiring Harness Included	No
Recommended Fuel	Premium

GENERAL
Torque	415 ft./lbs.
Horsepower	415 horsepower
Combustion Chamber Volume	60cc
Camshaft Duration (.050 in)	218° intake / 226° exhaust
Camshaft Lift (in)	.543 intake / .554 exhaust

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

will this mount in place of a 302 in a 1974 bronco?

by DBLV

• a year ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1968-1972 DeTomaso Mangusta

Ford 302

1968-1977 Ford Bronco

Ford 302

1980-1984 Ford Bronco

Ford 302

1968-1974 Ford Country Sedan

Ford 302

1968-1974 Ford Country Squire

Ford 302

1968-1972 Ford Custom

Ford 302

1968-1974 Ford Custom 500

Ford 302

1968-1975 Ford E-100 Econoline

Ford 302

1979-1983 Ford E-100 Econoline

Ford 302

1979-1983 Ford E-100 Econoline Club Wagon

Ford 302

1975 Ford E-150 Econoline

Ford 302

1979-1984 Ford E-150 Econoline

Ford 302

1979-1984 Ford E-150 Econoline Club Wagon

Ford 302

1968-1974 Ford E-200 Econoline

Ford 302

1975 Ford E-250 Econoline

Ford 302

1979-1984 Ford E-250 Econoline

Ford 302

1979-1980 Ford E-250 Econoline Club Wagon

Ford 302

1968-1974 Ford E-300 Econoline

Ford 302

1975 Ford E-350 Econoline

Ford 302

1979-1982 Ford E-350 Econoline

Ford 302

1979-1980 Ford E-350 Econoline Club Wagon

Ford 302

1969-1983 Ford F-100

Ford 302

1975-1984 Ford F-150

Ford 302

1969-1984 Ford F-250

Ford 302

1972-1980 Ford F-350

Ford 302

1968-1970 Ford Fairlane

Ford 302

1978-1979 Ford Fairmont

Ford 302

1968-1970 Ford Falcon

Ford 302

1968-1974 Ford Galaxie 500

Ford 302

1972-1974 Ford Gran Torino

Ford 302

1975-1980 Ford Granada

Ford 302

1968-1974 Ford LTD

Ford 302

1977-1984 Ford LTD

Ford 302

1977-1979 Ford LTD II

Ford 302

1971-1977 Ford Maverick

Ford 302

1968-1973 Ford Mustang

Ford 302

1979 Ford Mustang

Ford 302

1982-1984 Ford Mustang

Ford 302

1975-1978 Ford Mustang II

Ford 302

1968-1974 Ford Ranch Wagon

Ford 302

1968-1974 Ford Ranchero

Ford 302

1977-1979 Ford Ranchero

Ford 302

1977-1981 Ford Thunderbird

Ford 302

1983-1984 Ford Thunderbird

Ford 302

1968-1974 Ford Torino

Ford 302

1980 Lincoln Continental

Ford 302

1982-1984 Lincoln Continental

Ford 302

1980-1983 Lincoln Mark VI

Ford 302

1984 Lincoln Mark VII

Ford 302

1981-1984 Lincoln Town Car

Ford 302

1977-1980 Lincoln Versailles

Ford 302

1979 Mercury Capri

Ford 302

1982-1984 Mercury Capri

Ford 302

1968-1969 Mercury Comet

Ford 302

1971-1977 Mercury Comet

Ford 302

1968-1971 Mercury Cougar

Ford 302

1977-1981 Mercury Cougar

Ford 302

1983-1984 Mercury Cougar

Ford 302

1968-1971 Mercury Cyclone

Ford 302

1979-1984 Mercury Grand Marquis

Ford 302

1979-1982 Mercury Marquis

Ford 302

1975-1980 Mercury Monarch

Ford 302

1968-1974 Mercury Montego

Ford 302

1978-1979 Mercury Zephyr

Ford 302
