BluePrint BP3479CTCD 347 Stroker Crate Engine, Deluxe Dressed, FS

Ships FREE!

#227BP347CTCD

BluePrint BP3479CTCD 347 Stroker Crate Engine, Deluxe Dressed, FS

BluePrint Engines Small Block Ford 347 Stroker Crate Engine
Carbureted Deluxe Dressed Longblock with Aluminum Heads, Front Sump Pan and Roller Cam
HP And Torque: 415 HP / 415 FT LBS

Level Of Dress:

#3 Deluxe Dressed - Carbureted

#1 Long Block#2 Base Dressed - EFI #4 Deluxe Dressed - Carbureted - Black Pulley Kit

$8,699.00

/each

In Stock

Order soon, only 1 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Deluxe Crate Engine Crate Engine Type, Oil Pan Included

BluePrint Engines Small Block Ford 347 Stroker Crate Engine
Carbureted Deluxe Dressed Longblock with Aluminum Heads, Front Sump Pan and Roller Cam
HP And Torque: 415 HP / 415 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads

See more details

Key Specs

Crate Engine Type	Deluxe Crate Engine
Compression Ratio	10.0:1
Engine Displacement	347 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum

See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines BP3479CTCD Details

BluePrint Engines Small Block Ford 347 Stroker Crate Engine
Carbureted Deluxe Dressed Longblock with Aluminum Heads, Front Sump Pan and Roller Cam
HP And Torque: 415 HP / 415 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Cast Steel Crank
Forged Pistons

BLOCK:
New standard bore stroker style block
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
2-Bolt Main
1-Piece Rear Main Seal
Mech fuel pump provision: Yes

ROTATING ASSEMBLY:
New BluePrint Cast steel crankshaft
3.400" Stroke
Forged I-beam 5.400" connecting rods
Forged pistons
28oz External balance

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -HP9008
60cc chamber
2.02" intake/1.60" exhaust valves
190cc intake/65cc exhaust runners

CAM SPECS:
Cam Type: Roller
.543 Intake .554 Exhaust
218 Intake / 226 Exhaust duration
@ .050 - 112 degree lobe separation

IGNITION TIMING:
34 Degrees Total at 3500 RPM

ALSO INCLUDES:
Carburetor
Intake
Standard Rotation Waterpump
Spark plugs and wires
Valve covers
Distributor
Harmonic Balancer
Painted front sump oil pan

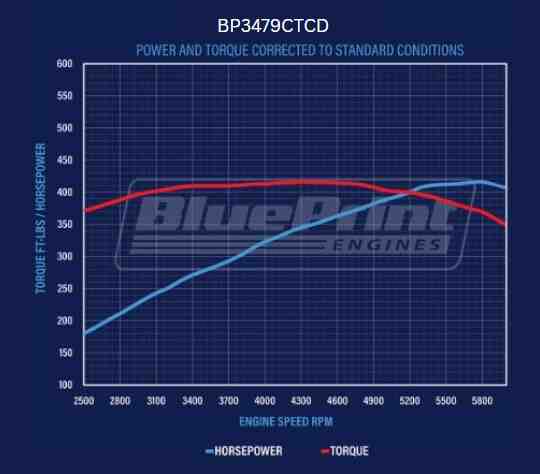

Dyno test results shipped with engine

WARRANTY:
30 month / 50,000 mile

Guides & Documents

Crate Engines Installation Instructions (227BP347CTCD)

Crate Engines Technical Information (227BP347CTCD)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

BluePrint Engines BP3479CTCD Specifications

KEY SPECS
MFG. Part #	BP3479CTCD
Brand	BluePrint Engines
Crate Engine Type	Deluxe Crate Engine
Compression Ratio	10.0:1
Engine Displacement	347 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Piston Material	Forged Aluminum
Crankshaft Material	Cast Steel
Carburetor Included	Yes
Intake Manifold Included	Yes
Distributor Included	Yes
Connecting Rod Material	Forged Steel
Valve Covers Included	Yes
Engine Balance	External
Cylinder Heads Included	Yes
Throttle Body Included	No
Timing Cover Included	Yes
Oil Pan Included	Yes
Water Pump Included	Yes
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	Yes
Air Cleaner Included	No
Spark Plugs Included	Yes
Spark Plug Wires Included	Yes
Computer Included	No
Wiring Harness Included	No
Recommended Fuel	Premium

GENERAL
Torque	415 ft./lbs.
Horsepower	415 horsepower
Combustion Chamber Volume	60cc
Camshaft Duration (.050 in)	218° intake / 226° exhaust
Camshaft Lift (in)	.543 intake / .554 exhaust
