Long Block Crate Engine Type, 10.0:1 Compression Ratio
| Crate Engine Type | Long Block |
| Compression Ratio | 10.0:1 |
| Engine Displacement | 342 cu. in. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBLOCK:
New standard bore stroker block
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
2-Bolt Main
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
ROTATING ASSEMBLY:
New BluePrint Cast steel crankshaft
3.400" Stroke
Forged I-beam 5.400" connecting rods
Forged pistons
28oz External balance
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -HP9008
60cc chamber
2.02" intake/1.60" exhaust valves
190cc intake/65cc exhaust runners
CAM SPECS:
Cam Type: Roller
.543 Intake .554 Exhaust
218 Intake / 226 Exhaust duration
@ .050 - 112 degree lobe separation
IGNITION TIMING:
34 Degrees Total at 3500 RPM
ALSO INCLUDES:
Valve covers
Painted front sump oil pan

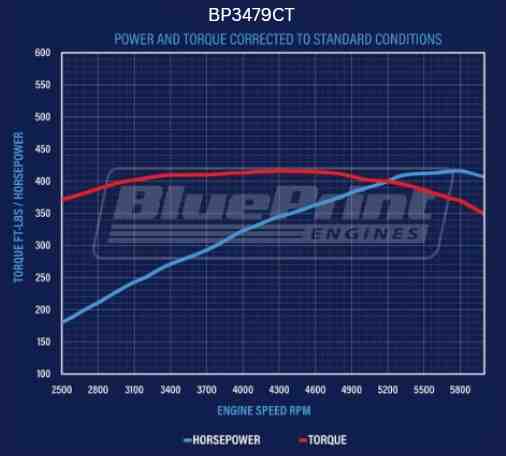

Dyno test results shipped with engine
WARRANTY:
30 month / 50,000 mile
Guides & Documents
For race/ off road use or for use on pre-1966 vehicles.
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | BP3479CT |
| Brand | BluePrint Engines |
| Crate Engine Type | Long Block |
| Compression Ratio | 10.0:1 |
| Engine Displacement | 342 cu. in. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Forged Aluminum |
| Crankshaft Material | Cast Steel |
| Carburetor Included | No |
| Intake Manifold Included | No |
| Distributor Included | No |
| Connecting Rod Material | Forged Steel |
| Valve Covers Included | Yes |
| Engine Balance | External |
| Cylinder Heads Included | Yes |
| Throttle Body Included | No |
| Timing Cover Included | Yes |
| Oil Pan Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | No |
| Flexplate Included | No |
| Flywheel Included | Yes |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | No |
| GENERAL | |
| Torque | 415 ft./lbs. |
| Horsepower | 415 horsepower |
| Combustion Chamber Volume | 65cc |
| Camshaft Duration (.050 in) | 218° intake / 226° exhaust |
| Camshaft Lift (in) | .543 intake / .554 exhaust |
