BluePrint BP302RCTCKB 302 Cruiser Crate Engine, Dlx Dressed, Carb

• BluePrint Engines Small Block Ford 302 Cruiser Crate Engine
• Carbureted Deluxe Dressed Longblock with Black Pulley Kit, Aluminum Heads, Roller Cam, and Rear Sump Pan

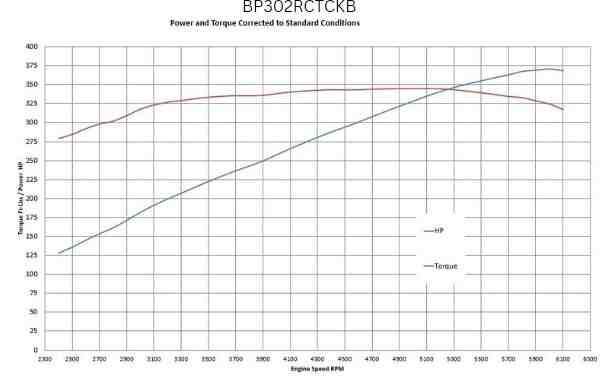

• HP And Torque: 361 HP / 334 FT LBS
• Compression Ratio: 9.4:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Steel Crank
• Hypereutectic Pistons

BLOCK:
NEW BluePrint Cast Iron Block
4-Bolt Main
4.000" Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes

ROTATING ASSEMBLY:
3.000" Stroke
OEM type 5.090" connecting rods
Hypereutectic pistons
50oz External balance

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -HP9008
60cc chamber
2.02" intake/1.60" exhaust valves
190cc intake/60cc exhaust runners

CAM SPECS:
Roller Cam
.533 Intake / .544 Exhaust
215 Intake / 220 Exhaust Duration
@ .050 - 114 Degree Lobe Separation

IGNITION TIMING:
10-16 degrees initial, 32-34 total

ALSO INCLUDES:
Rear Sump Oil Pan
Valve Covers
Timing Cover
Distributor
Carburetor
Spark Plugs and Wires
Waterpump
Harmonic Balancer
Installed Complete Black front accessory Drive. WP, Alt, P/S, A/C, all belts and pulleys.

WARRANTY:
30 month / 50,000 mile

• The front serpentine assemblies installed on the deluxe dressed crate engines feature the 7B10 Peanut style A/C compressor, this unit is fitted for the R-134A Freon Refrigerant type-fittings, and is compatible with most aftermarket A/C systems such as Vintage Air.
