BluePrint BP302RCTC 302 Cruiser Crate Engine, Base Dressed, Carb

Ships FREE!

#227BP302RCTC

BluePrint BP302RCTC 302 Cruiser Crate Engine, Base Dressed, Carb

BluePrint Engines Small Block Ford 302 Cruiser Crate Engine
Carbureted Small Block Ford Base Dressed Longblock with Aluminum Heads, Roller Cam, and Rear Sump Pan
HP And Torque: 361 HP / 334 FT LBS

Level Of Dress:

#2 Base Dressed

#1 Long Block#3 Deluxe Dressed #4 Deluxe Dressed - Black Pulley Kit

$6,899.00

/each

In Stock

Order soon, only 1 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Long Block Crate Engine Type, 9.4:1 Compression Ratio

BluePrint Engines Small Block Ford 302 Cruiser Crate Engine
Carbureted Small Block Ford Base Dressed Longblock with Aluminum Heads, Roller Cam, and Rear Sump Pan
HP And Torque: 361 HP / 334 FT LBS
Compression Ratio: 9.4:1
Aluminum Heads

See more details

Key Specs

Crate Engine Type	Long Block
Compression Ratio	9.4:1
Engine Displacement	302 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum

See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines BP302RCTC Details

BluePrint Engines Small Block Ford 302 Cruiser Crate Engine
Carbureted Small Block Ford Base Dressed Longblock with Aluminum Heads, Roller Cam, and Rear Sump Pan
HP And Torque: 361 HP / 334 FT LBS
Compression Ratio: 9.4:1
Aluminum Heads
Hydraulic Roller Cam
Cast Steel Crank
Hypereutectic Pistons

BLOCK:
NEW BluePrint Cast Iron Block
4-Bolt Main
4.000" Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes

ROTATING ASSEMBLY:
3.000" Stroke
OEM type 5.090" connecting rods
Hypereutectic pistons
50oz External balance

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -HP9008
60cc chamber
2.02" intake/1.60" exhaust valves
190cc intake/60cc exhaust runners

CAM SPECS:
Roller Cam
.533 Intake / .544 Exhaust
215 Intake / 220 Exhaust Duration
@ .050 - 114 Degree Lobe Separation

IGNITION TIMING:
10-16 degrees initial, 32-34 total

ALSO INCLUDES:
Rear Sump Oil Pan
Intake Manifold
Carburetor
Distributor
Harmonic balancer
Valve Covers
Timing Cover

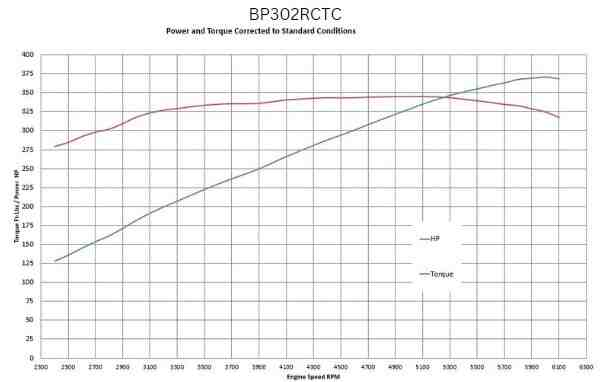

Dyno test results shipped with engine

WARRANTY:
30 month / 50,000 mile

Guides & Documents

Crate Engines Installation Instructions (227BP302RCTC)

Crate Engines Technical Information (227BP302RCTC)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

BluePrint Engines BP302RCTC Specifications

KEY SPECS
MFG. Part #	BP302RCTC
Brand	BluePrint Engines
Crate Engine Type	Long Block
Compression Ratio	9.4:1
Engine Displacement	302 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Piston Material	Hypereutectic Aluminum
Crankshaft Material	Cast Steel
Carburetor Included	No
Intake Manifold Included	No
Distributor Included	No
Connecting Rod Material	Steel
Valve Covers Included	Yes
Engine Balance	Internal
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	No
Timing Cover Included	Yes
Oil Pan Included	Yes
Water Pump Included	No
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	Yes
Spark Plug Wires Included	No
Computer Included	No
Wiring Harness Included	No

GENERAL
Torque	335 ft./lbs.
Horsepower	361 horsepower
Combustion Chamber Volume	60cc
Camshaft Duration (.050 in)	220° intake / 224 ° exhaust
Camshaft Lift (in)	.533 Intake / .554 Exhaust
Bore x Stroke (in)	4.060" x 3.000"
Sold in Quantity	Each
