Product Summary

Long Block Crate Engine Type, 9.4:1 Compression Ratio

  • BluePrint Engines Small Block Ford 302 Cruiser Crate Engine
  • Small Block Ford Style Longblock With Aluminum Heads, Roller Cam, and Rear Sump Pan
  • HP And Torque: 361 HP / 334 FT LBS
  • Compression Ratio: 9.4:1
  • Aluminum Heads
See more details

Key Specs

Crate Engine TypeLong Block
Compression Ratio9.4:1
Engine Displacement302 cu. in.
Camshaft TypeHydraulic Roller
Cylinder Head MaterialAluminum
See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Quick and Easy Returns

Return Policy

BluePrint Engines BP302RCT Details

  • BluePrint Engines Small Block Ford 302 Cruiser Crate Engine
  • Small Block Ford Style Longblock With Aluminum Heads, Roller Cam, and Rear Sump Pan
  • HP And Torque: 361 HP / 334 FT LBS
  • Compression Ratio: 9.4:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Cast Steel Crank
  • Hypereutectic Pistons

BLOCK:
NEW BluePrint Cast Iron Block
4-Bolt Main
4.000" Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes


ROTATING ASSEMBLY:
3.000" Stroke
OEM type 5.090" connecting rods
Hypereutectic pistons
50oz External balance


CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -HP9008
60cc chamber
2.02" intake/1.60" exhaust valves
190cc intake/60cc exhaust runners


CAM SPECS:
Roller Cam
.533 Intake / .544 Exhaust
215 Intake / 220 Exhaust Duration
@ .050 - 114 Degree Lobe Separation

IGNITION TIMING:
10-16 degrees initial, 32-34 total


ALSO INCLUDES:
Rear Sump Oil Pan
Valve Covers
Timing Cover

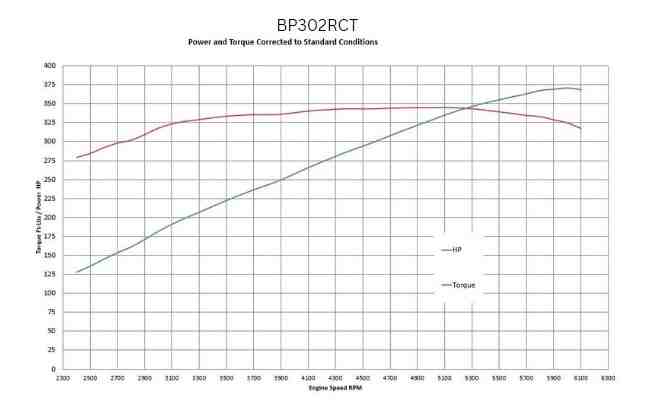

Dyno test results shipped with engine


WARRANTY:
30 month / 50,000 mile

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

BluePrint Engines BP302RCT Specifications

KEY SPECS
MFG. Part #BP302RCT
BrandBluePrint Engines
Crate Engine TypeLong Block
Compression Ratio9.4:1
Engine Displacement302 cu. in.
Camshaft TypeHydraulic Roller
Cylinder Head MaterialAluminum
Piston MaterialHypereutectic Aluminum
Crankshaft MaterialCast Steel
Carburetor IncludedNo
Intake Manifold IncludedNo
Distributor IncludedNo
Connecting Rod MaterialOEM Style
Valve Covers IncludedYes
Engine BalanceInternal
Cylinder Heads IncludedYes
Rear Main Seal Style1-piece
Throttle Body IncludedNo
Timing Cover IncludedYes
Oil Pan IncludedYes
Water Pump IncludedNo
Harmonic Balancer IncludedYes
Flexplate IncludedNo
Flywheel IncludedNo
Air Cleaner IncludedNo
Spark Plugs IncludedNo
Spark Plug Wires IncludedNo
Computer IncludedNo
Wiring Harness IncludedNo
GENERAL
Torque335 ft./lbs.
Horsepower361 horsepower
Combustion Chamber Volume60cc
Camshaft Duration (.050 in)215° intake / 220° exhaust
Camshaft Lift (in).533 Intake / .554 Exhaust
Bore x Stroke (in)4.060" x 3.000"
