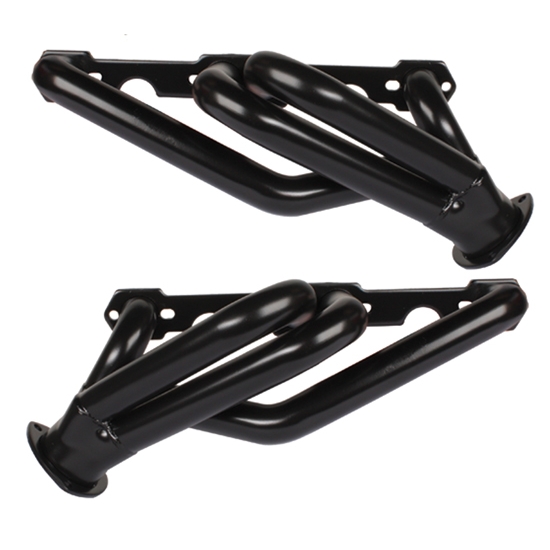

1955-57 Chevy Chassis Headers for Rack and Pinion, Raw Finish

#930C5

1955-57 Chevy Chassis Headers for Rack and Pinion, Raw Finish

Name: 1955-57 Chevy Chassis Headers for Rack and Pinion, Raw Finish
Brand: Speedway Motors
SKU: 930C5
Price: 317.99 USD
Availability: BackOrder
Rating: 5 (1 reviews)

1 Review

4 Questions

Finish:

Plain

Stainless Steel Silver Ceramic Chrome

$317.99

/set

On Backorder

This part is Backordered. We estimate this item will ship on or before December 16th.

Get something sooner

Browse In Stock and Ready to Ship Alternatives

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle and engine to verify Fitment

Select Vehicle

Select Engine

Product Summary

Chassis Header Tube Type, Round Exhaust Port Shape, Raw

See more details

Key Specs

MFG. Part #	930C5
Header Tube Type	Chassis
Exhaust Port Shape	Round
Flange Style	Standard
Primary Tube Diameter	1-5/8"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 930C5 Details

If you are running our Unisteer rack & pinion, you will need these headers. They allow the steering shaft to pass through on the driver's side and are a shorty style for maximum ground clearance. Features 1-5/8" primaries with a 3" collector.

Tubing Thickness: 12 gauge (.103")
Header Flange Thickness: 0.30"
Exhaust Flange Thickness: 0.3760"

Fits 283-400 S/B Chevy V8s with straight plug heads. Includes a pair of reducers (3.00" to 2.50").

Note: Will not fit 168 tooth flywheels or kickout aftermarket starters. Will not fit manual transmission cars with factory Z bar clutch linkage.

Charts

Header Dimensions (GIF)

Header Installation Guide (PDF)

Guides & Documents

Headers Installation Instructions (930C5)

Headers Sizing Chart (930C5)

Choosing the Right Headers

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Speedway Motors 930C5 Specifications

KEY SPECS
MFG. Part #	930C5
Brand	Speedway Motors
Header Tube Type	Chassis
Exhaust Port Shape	Round
Flange Style	Standard
Primary Tube Diameter	1-5/8"
Material Type	Steel
Color	Natural
Weld-Up	No
Collector Diameter	3 Inch
Finish	Raw
Hardware Included	Yes
Gasket(s) Included	Yes
Collector Reducers Included	Yes
Collector Reducer Exit Diameter	2.5"
Collector Attachment Type	3-bolt flange

GENERAL
Sold in Quantity	Pair
Collector Length	3"
Flange Thickness	0.31"
Port Height	1.54"
Port Width	1.47"
Drivers Side Dimension A	7.6"
Drivers Side Dimension B	8.45"
Drivers Side Dimension C	21.63"
Passenger Side Dimension A	5.6"
Passenger Side Dimension B	8.3"
Passenger Side Dimension C	22.38"

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

Fit my car well

5.0

6 years ago

Bobby

Pueblo, Colorado

Fits great, I will trim down belhousing to make clearance for headers

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

4 Questions • 4 Answers

Sort Questions

will these headers work with angle plug heads

by chet

• 4 years ago

1 answer

View Answer

Will these work if you use the 3/4" forward motor mounts

by Dave

• 6 years ago

1 answer

View Answer

why do these headers not work with a 168 tooth flex plate

by rjc

• 8 years ago

1 answer

View Answer

I have a '55 Chevy running a 400 Small Block Engine and 4-Speed Transmission with Classic Chevy International Rack and Pinion Steering purchased in the mid 1990's. Will these headers fit my car? Thanks in advance for your reply!

• 15 years ago

1 answer

View Answer

4 of 4 questions shown

Fitment

1959 Chevy 3A

2-Piece Rear Main Chevy 283

1959 Chevy 3B

2-Piece Rear Main Chevy 283

1959 Chevy 3C

2-Piece Rear Main Chevy 283

1959 Chevy 3D

2-Piece Rear Main Chevy 283

1959 Chevy 3E

2-Piece Rear Main Chevy 283

1959 Chevy 3F

2-Piece Rear Main Chevy 283

1959 Chevy 3G

2-Piece Rear Main Chevy 283

1957-1967 Chevy Bel Air

2-Piece Rear Main Chevy 283

1968 Chevy Bel Air

Gen 1 L14 Small Block Chevy

1970-1975 Chevy Bel Air

2-Piece Rear Main Chevy 400

1958-1967 Chevy Biscayne

2-Piece Rear Main Chevy 283

1968 Chevy Biscayne

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Biscayne

2-Piece Rear Main Chevy 400

1969-1973 Chevy Blazer

Gen 1 L14 Small Block Chevy

1958-1961 Chevy Brookwood

2-Piece Rear Main Chevy 283

1969 Chevy Brookwood

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Brookwood

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1960-1967 Chevy C10

2-Piece Rear Main Chevy 283

1968-1973 Chevy C10

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C10

2-Piece Rear Main Chevy 400

1960-1967 Chevy C10 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy C10 Suburban

Gen 1 L14 Small Block Chevy

1960-1967 Chevy C20

2-Piece Rear Main Chevy 283

1968-1973 Chevy C20

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C20

2-Piece Rear Main Chevy 400

1960-1967 Chevy C20 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy C20 Suburban

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C20 Suburban

2-Piece Rear Main Chevy 400

1960-1967 Chevy C30

2-Piece Rear Main Chevy 283

1968-1973 Chevy C30

Gen 1 L14 Small Block Chevy

1976-1979 Chevy C30

2-Piece Rear Main Chevy 400

1967-1968 Chevy Camaro

Gen 1 DZ Small Block Chevy

1969 Chevy Camaro

Gen 1 DZ Small Block Chevy
Gen 1 L14 Small Block Chevy

1970-1973 Chevy Camaro

Gen 1 L14 Small Block Chevy

1966-1967 Chevy Caprice

2-Piece Rear Main Chevy 283

1968-1969 Chevy Caprice

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Caprice

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Caprice

2-Piece Rear Main Chevy 400

1964-1967 Chevy Chevelle

2-Piece Rear Main Chevy 283

1968-1969 Chevy Chevelle

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Chevelle

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1963-1967 Chevy Chevy II

2-Piece Rear Main Chevy 283

1968 Chevy Chevy II

Gen 1 L14 Small Block Chevy

1957-1961 Chevy Corvette

2-Piece Rear Main Chevy 283

1957-1958 Chevy Del Ray

2-Piece Rear Main Chevy 283

1959-1960 Chevy El Camino

2-Piece Rear Main Chevy 283

1964-1967 Chevy El Camino

2-Piece Rear Main Chevy 283

1968-1969 Chevy El Camino

Gen 1 L14 Small Block Chevy

1970-1973 Chevy El Camino

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy El Camino

2-Piece Rear Main Chevy 400

1969 Chevy Estate

Gen 1 L14 Small Block Chevy

1970 Chevy Estate

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1976 Chevy G10

2-Piece Rear Main Chevy 400

1968-1973 Chevy G10 Van

Gen 1 L14 Small Block Chevy

1975-1980 Chevy G20

2-Piece Rear Main Chevy 400

1967 Chevy G20 Van

2-Piece Rear Main Chevy 283

1968-1973 Chevy G20 Van

Gen 1 L14 Small Block Chevy

1975-1980 Chevy G30

2-Piece Rear Main Chevy 400

1958-1967 Chevy Impala

2-Piece Rear Main Chevy 283

1968-1969 Chevy Impala

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Impala

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Impala

2-Piece Rear Main Chevy 400

1960-1967 Chevy K10

2-Piece Rear Main Chevy 283

1968-1973 Chevy K10

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K10

2-Piece Rear Main Chevy 400

1960-1967 Chevy K10 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy K10 Suburban

Gen 1 L14 Small Block Chevy

1975-1979 Chevy K10 Suburban

2-Piece Rear Main Chevy 400

1960-1967 Chevy K20

2-Piece Rear Main Chevy 283

1968-1973 Chevy K20

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K20

2-Piece Rear Main Chevy 400

1967 Chevy K20 Panel

2-Piece Rear Main Chevy 283

1960-1967 Chevy K20 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy K20 Suburban

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K20 Suburban

2-Piece Rear Main Chevy 400

1968-1973 Chevy K30

Gen 1 L14 Small Block Chevy

1977-1980 Chevy K30

2-Piece Rear Main Chevy 400

1975-1979 Chevy K5 Blazer

2-Piece Rear Main Chevy 400

1959-1961 Chevy Kingswood

2-Piece Rear Main Chevy 283

1969 Chevy Kingswood

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Kingswood

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1973 Chevy Laguna

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Laguna

2-Piece Rear Main Chevy 400

1964-1967 Chevy Malibu

2-Piece Rear Main Chevy 283

1973 Chevy Malibu

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Malibu

2-Piece Rear Main Chevy 400

1970-1976 Chevy Monte Carlo

2-Piece Rear Main Chevy 400

1957-1961 Chevy Nomad

2-Piece Rear Main Chevy 283

1969-1973 Chevy Nova

Gen 1 L14 Small Block Chevy

1957 Chevy One-Fifty Series

2-Piece Rear Main Chevy 283

1976 Chevy P30

2-Piece Rear Main Chevy 400

1961-1962 Chevy P30 Series

2-Piece Rear Main Chevy 283

1968-1969 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1973 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1959-1961 Chevy Parkwood

2-Piece Rear Main Chevy 283

1957-1958 Chevy Sedan Delivery

2-Piece Rear Main Chevy 283

1960-1967 Chevy Suburban

2-Piece Rear Main Chevy 283

1969 Chevy Townsman

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Townsman

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1957-1958 Chevy Truck

2-Piece Rear Main Chevy 283

1960 Chevy Truck

2-Piece Rear Main Chevy 283

1957 Chevy Two-Ten Series

2-Piece Rear Main Chevy 283

1958 Chevy Yeoman

2-Piece Rear Main Chevy 283

1966 GMC 1000

2-Piece Rear Main Chevy 283

1960 GMC 1000 Series

2-Piece Rear Main Chevy 283

1962-1965 GMC 1000 Series

2-Piece Rear Main Chevy 283

1960-1965 GMC 1500 Series

2-Piece Rear Main Chevy 283

1966 GMC 2500

2-Piece Rear Main Chevy 283

1960-1965 GMC 2500 Series

2-Piece Rear Main Chevy 283

1960-1966 GMC 3000

2-Piece Rear Main Chevy 283

1960-1966 GMC 3500

2-Piece Rear Main Chevy 283

1967 GMC C25/C2500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC C25/C2500 Pickup

Gen 1 L14 Small Block Chevy

1967 GMC C25/C2500 Suburban

2-Piece Rear Main Chevy 283

1968-1972 GMC C25/C2500 Suburban

Gen 1 L14 Small Block Chevy

1967 GMC C35/C3500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC C35/C3500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC C35/C3500 Pickup

2-Piece Rear Main Chevy 400

1975-1978 GMC K15

2-Piece Rear Main Chevy 400

1975-1978 GMC K15 Suburban

2-Piece Rear Main Chevy 400

1967-1974 GMC K15/K1500 Pickup

2-Piece Rear Main Chevy 400

1967-1974 GMC K15/K1500 Suburban

2-Piece Rear Main Chevy 400

1979-1980 GMC K1500 Suburban

2-Piece Rear Main Chevy 400

1975-1978 GMC K25

2-Piece Rear Main Chevy 400

1975-1978 GMC K25 Suburban

2-Piece Rear Main Chevy 400

1967 GMC K25/K2500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC K25/K2500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC K25/K2500 Pickup

2-Piece Rear Main Chevy 400

1967 GMC K25/K2500 Suburban

2-Piece Rear Main Chevy 283

1968-1972 GMC K25/K2500 Suburban

Gen 1 L14 Small Block Chevy

1973-1974 GMC K25/K2500 Suburban

2-Piece Rear Main Chevy 400

1979-1986 GMC K2500 Suburban

2-Piece Rear Main Chevy 400

1967 GMC K35/K3500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC K35/K3500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC K35/K3500 Pickup

2-Piece Rear Main Chevy 400

1966 GMC P1000

2-Piece Rear Main Chevy 283

1973-1977 GMC Sprint

2-Piece Rear Main Chevy 400

1955-1966 GMC Suburban

2-Piece Rear Main Chevy 283

1967 GMC Suburban

Gen 1 L14 Small Block Chevy

1956-1960 GMC Truck

2-Piece Rear Main Chevy 283

1965-1966 Studebaker Commander

2-Piece Rear Main Chevy 283

1965-1966 Studebaker Cruiser

2-Piece Rear Main Chevy 283

1965-1966 Studebaker Daytona

2-Piece Rear Main Chevy 283

1966 Studebaker Wagonaire

2-Piece Rear Main Chevy 283
