Product Summary

283, 302, 305, 307, 327, 350, 377, 383, 395, 400, Steel

    Key Specs

    MFG. Part #930C5C
    BrandSpeedway Motors
    Header Tube TypeChassis
    FinishChrome
    Material TypeSteel

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

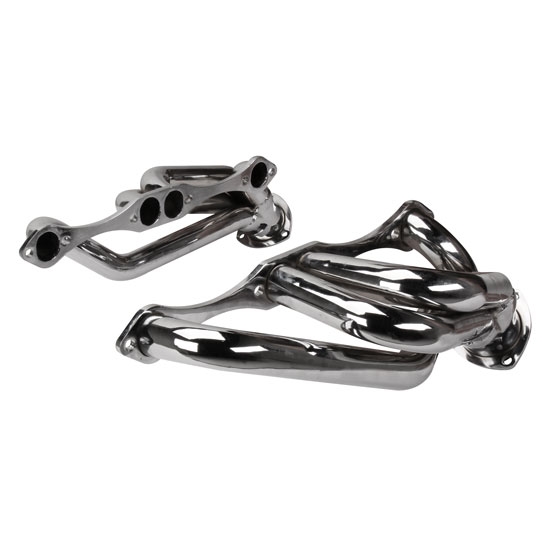

    If you are running our Unisteer rack & pinion, you will need these headers. They allow the steering shaft to pass through on the driver's side and are a shorty style for maximum ground clearance. Features 1-5/8" primaries with a 3" collector.
    • Tubing Thickness: 12 gauge (.103")
    • Header Flange Thickness: 0.30"
    • Exhaust Flange Thickness: 0.3760"
    • Chrome finish

    Fits 283-400 S/B Chevy V8s with straight plug heads.

    Note: Will not fit 168 tooth flywheels or kickout aftermarket starters. Will not fit manual transmission cars with factory Z bar clutch linkage

    Chrome Warning: Due to a revised chroming process brought on by recent EPA regulations and high labor costs, today's chrome is not the quality of days gone by. Be Aware: Exhaust components which are chrome plated are now much more susceptible to blueing, blistering, peeling & corrosion. No warranty or returns on chrome exhaust items once them have been installed.

    Not legal for sale or use in California on pollution controlled vehicles

    Charts

    Guides & Documents

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Specifications

    KEY SPECS
    MFG. Part #930C5C
    BrandSpeedway Motors
    Header Tube TypeChassis
    FinishChrome
    Material TypeSteel
    GENERAL
    Flange StyleStandard
    Primary Tube Diameter1-5/8"
    ColorChrome
    Weld-UpNo
    Exhaust Port ShapeRound
    Collector Diameter3 Inch
    Collector Length3"
    Flange Thickness.31"
    Port Height1.54"
    Port Width1.47"
    Drivers Side Dimension A7.60"
    Drivers Side Dimension B8.45"
    Drivers Side Dimension C21.63"
    Passenger Side Dimension A5.60"
    Passenger Side Dimension B8.30"
    Passenger Side Dimension C22.38"
    Hardware IncludedYes
    Gasket(s) IncludedYes
    Sold in QuantityPair
    NotesIncludes a pair of reducers (3.00" to 2.50")
    Collector Attachment Type3-bolt flange
    Collector Reducers IncludedYes
    Collector Reducer Exit Diameter2.5"
