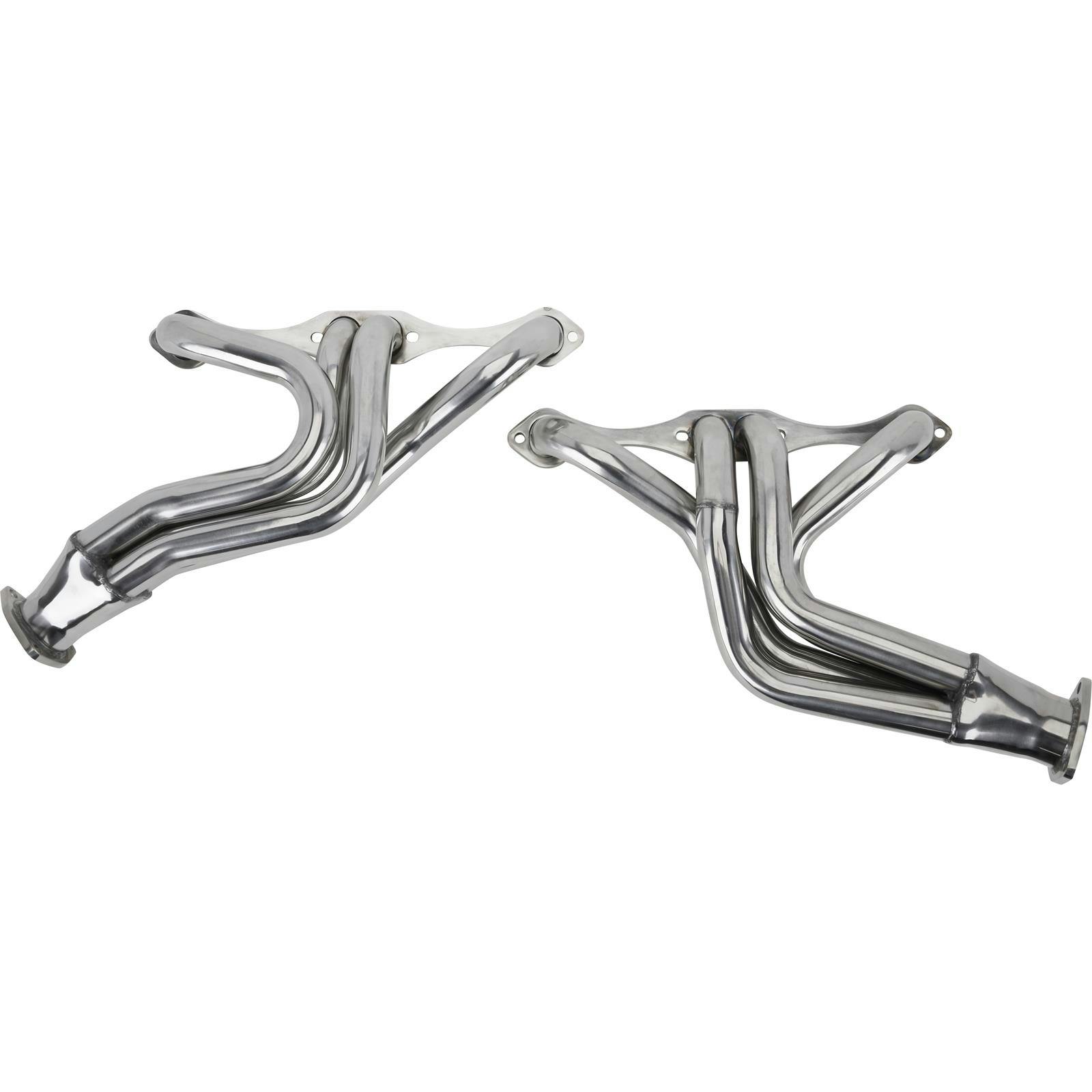

1955-1957 Small Block Chevy Chassis Headers, Stainless

#930C7S

1955-1957 Small Block Chevy Chassis Headers, Stainless

Name: 1955-1957 Small Block Chevy Chassis Headers, Stainless
Brand: Speedway Motors
SKU: 930C7S
Price: 492.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

5 Questions

Polished finish
Will work with '55-'57 Small Block Chevy
2-1/2" collector

Finish:

Stainless Steel

Chrome Plain Silver Ceramic

$492.99

/set

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle and engine to verify Fitment

Select Vehicle

Select Engine

Product Summary

Chassis Header Tube Type, Oval Exhaust Port Shape

Polished finish
Will work with '55-'57 Small Block Chevy
2-1/2" collector
Will work with stock or 605 power steering box
Engineered to provide maximum ground clearance

See more details

Key Specs

MFG. Part #	930C7S
Header Tube Type	Chassis
Exhaust Port Shape	Oval
Flange Style	Standard
Primary Tube Diameter	1-5/8"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 930C7S Details

These Speedway headers allow you to keep the exhaust system under your '55-'57 Chevy car. The "3/4-length" design provides more ground clearance than full-length headers, yet makes more power than "shorty" style headers. These chassis headers fit 283-400 S/B Chevy V8s and has 1-5/8" primary tubes with 2-1/2" collectors.

Mid-length design offers maximum ground clearance
Designed to work with stock or 605 power steering box
Fits cars using an original V-8 pitman arm (some aftermarket arms may cause an interference)
Will work with side engine mounts with engine in stock location
Fits standard and Vortec-style small-block Chevy heads (not D-port, LT-1 or ZZ-4)
Does not work with stock clutch linkage
(Please use the chart below to help with dimensions.) Drivers side A dimension is 3-1/2" up by the head and 5-5/8" at the collector, B dimension is 15", and C dimension is 21". Passenger side A dimension is 4" at the head and 6-5/8" at the collector, B is 15", and C is 21".

NOTE: Stainless header tubing when exposed to exhaust temperature will cause the finish to change color which will vary with the exhaust temperature. Please note that the finish of the header when the engine is started, will change to a light champagne color to a darker gold finish and in some instance may even turn dark blue or purple. This can be polished back out when utilizingBlue-awayorSimi-chrome polish, but please note that when the headers reach running temperature again, they will immediately change color.

The use of a shorty spark plug may aide in clearance between the plug wire and header primary tubes.

Charts

Dimension Chart (GIF)

Specs

Guides & Documents

Choosing the Right Headers

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

Speedway Motors 930C7S Specifications

KEY SPECS
MFG. Part #	930C7S
Brand	Speedway Motors
Header Tube Type	Chassis
Exhaust Port Shape	Oval
Flange Style	Standard
Primary Tube Diameter	1-5/8"
Material Type	Stainless Steel
Color	Natural
Weld-Up	No
Collector Diameter	2-1/2 Inch
Finish	Polished
Hardware Included	Yes
Gasket(s) Included	Yes
Collector Reducers Included	Yes
Collector Reducer Exit Diameter	2.25"
Collector Attachment Type	3-bolt flange

GENERAL
Sold in Quantity	Pair
Notes	Includes a pair of reducers (2.50" to 2.25")
Collector Length	4"
Flange Thickness	.35"
Port Height	1.66"
Port Width	1.38"
Drivers Side Dimension A	5.35"
Drivers Side Dimension B	15.2"
Drivers Side Dimension C	21"
Passenger Side Dimension A	6.5"
Passenger Side Dimension B	14.25"
Passenger Side Dimension C	22.75"
