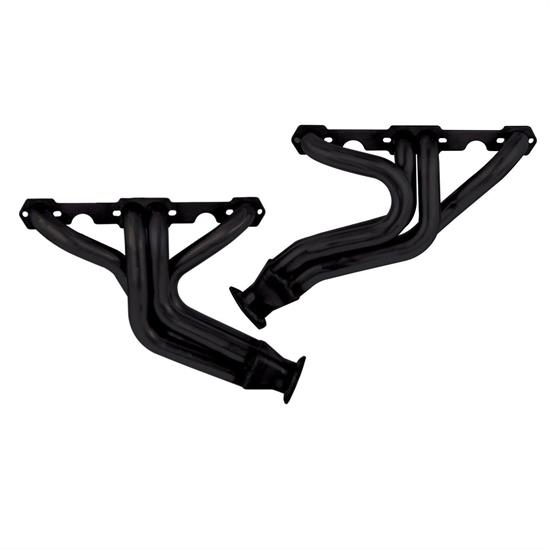

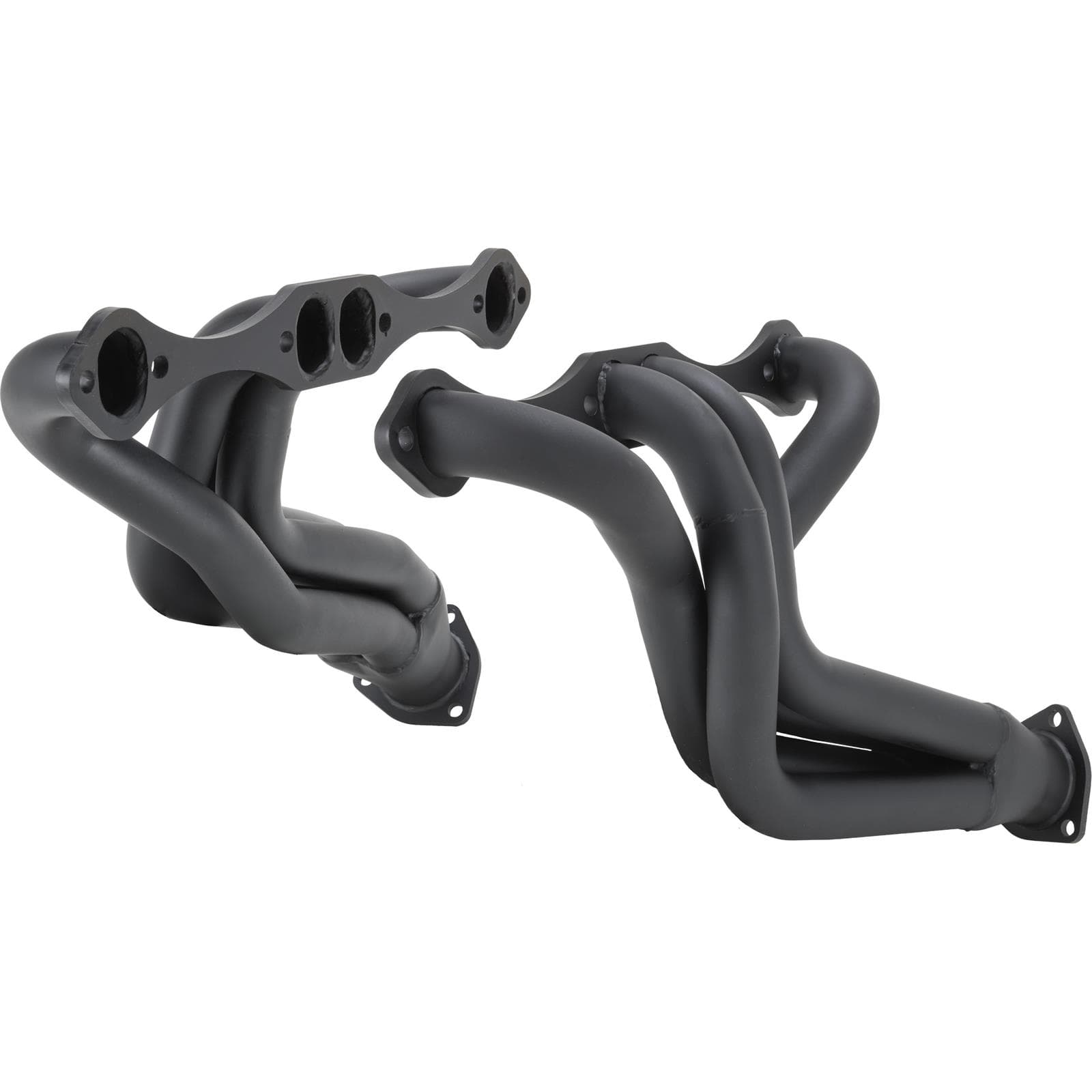

1955-1957 Small Block Chevy Chassis Headers, Raw Finish

#930C7

1955-1957 Small Block Chevy Chassis Headers, Raw Finish

Name: 1955-1957 Small Block Chevy Chassis Headers, Raw Finish
Brand: Speedway Motors
SKU: 930C7
Price: 236.99 USD
Availability: InStock
Rating: 4.8 (17 reviews)

17 Reviews

7 Questions

Speedway headers allow you to keep the exhaust system under your '55-'57 Chevy car
Provides more ground clearance than full-length headers, yet makes more power than "shorty" style
These chassis headers fit 283-400 S/B Chevy V8s

Finish:

Plain

Stainless Steel Silver Ceramic Chrome

$236.99

/set

In Stock

Garage Sale alternatives: from $142.79

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle and engine to verify Fitment

Select Vehicle

Select Engine

Product Summary

Chassis Header Tube Type, Oval Exhaust Port Shape, Raw

Speedway headers allow you to keep the exhaust system under your '55-'57 Chevy car
Provides more ground clearance than full-length headers, yet makes more power than "shorty" style
These chassis headers fit 283-400 S/B Chevy V8s
Has 1-5/8" primary tubes with 2-1/2" collectors

See more details

Key Specs

MFG. Part #	930C7
Header Tube Type	Chassis
Exhaust Port Shape	Oval
Flange Style	Standard
Primary Tube Diameter	1-5/8"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 930C7 Details

These Speedway headers allow you to keep the exhaust system under your '55-'57 Chevy car. The "3/4-length" design provides more ground clearance than full-length headers, yet makes more power than "shorty" style headers. These chassis headers fit 283-400 S/B Chevy V8s and has 1-5/8" primary tubes with 2-1/2" collectors.

Mid-length design offers maximum ground clearance
Designed to work with stock or 605 power steering box
Fits cars using an original V-8 pitman arm (some aftermarket arms may cause an interference)
Will work with side engine mounts with engine in stock location
Fits standard and Vortec-style small-block Chevy heads (not D-port, LT-1 or ZZ-4)
Does not work with stock clutch linkage
The use of a shorty spark plug may aide in clearance between the plug wire and header primary tubes

Includes a pair of reducers (2.50" to 2.25").

Drivers side A dimension is 3-1/2" up by the head and 5-5/8" at the collector
B dimension is 15", and C dimension is 21"
Passenger side A dimension is 4" at the head and 6-5/8" at the collector, B is 15", and C is 21"

Charts

Header Dimension Chart (JPG)

Guides & Documents

Headers Sizing Chart (930C7)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Speedway Motors 930C7 Specifications

KEY SPECS
MFG. Part #	930C7
Brand	Speedway Motors
Header Tube Type	Chassis
Exhaust Port Shape	Oval
Flange Style	Standard
Primary Tube Diameter	1-5/8"
Material Type	Steel
Color	Natural
Weld-Up	No
Collector Diameter	2-1/2 Inch
Finish	Raw
Hardware Included	Yes
Gasket(s) Included	Yes
Collector Reducers Included	Yes
Collector Reducer Exit Diameter	2.25"
Collector Attachment Type	3-bolt flange

GENERAL
Sold in Quantity	Pair
Collector Length	4"
Flange Thickness	.35"
Port Height	1.66"
Port Width	1.38"
Drivers Side Dimension A	5.35"
Drivers Side Dimension B	15.2"
Drivers Side Dimension C	21"
Passenger Side Dimension A	6.5"
Passenger Side Dimension B	14.25"
Passenger Side Dimension C	22.75"

Ratings & Reviews

4.8

17 Reviews

Overall Assessment

Customers praise the product for its excellent fit in a variety of builds, including 56, 55, and 57 Chevys and a '57 Chevy truck. The use of minimal modifications and compatibility with both manual and power steering box is highly appreciated. Customers confirmed the high quality of the product, not only in terms of its performance but also for its look and height, providing good clearance and protection for the dist-cap. They note that it works as expected, even in engines set forward. While occasional modifications were needed, most found the product is worth its price.

Write A Review

4.8

17 reviews

Most Liked Positive Review

5.0

Good fit on '57 Chevy Truck

I bought these headers for a '57 Chevy truck that I am rebuilding. Nice fit for 350 and 700R4

Most Liked Negative Review

3.0

Maybe

Mine hit the steering box and the bolt for the draglink bracket on the right side. Had to modify a bit. Number 7 angle boot pinned right header. What did i exspect for$160 bucks?

Filter by Ratings

Sort Reviews

Yes

5.0

6 months ago

Johnny

South Mississippi

Verified

Headers fit great except for around power steering That was mentioned to me in description so no problem.

Would Recommend

Product was spot on

5.0

a year ago

57 guy

Oklahoma

The parts department sit on the phone with me for over 20 minutes, making sure I had exactly the right thing I needed

Would Recommend

Great fit

5.0

a year ago

Rat Rod Relics

Saginaw MI

Verified

Great fit on our '57 Chevy with manual transmission

Would Recommend

yes

5.0

2 years ago

Clint

Glendive , Montana

Verified

great fit good

Would Recommend

Great fit!

5.0

3 years ago

Naturalgearhead

Florida

Verified

Fit my 56 with a sbc, and manual steering…with minimal persuasion of the hammer technique

High quality!

5.0

3 years ago

John

Zanesville Ohio

Verified

Best price on Patriot headers for tri five Chevy available!

Would Recommend

Great fit!

5.0

4 years ago

Marc Madison

Tioga, TX

Verified

Great price! Fit the 1955 chevyy

Would Recommend

Fit perfect

5.0

6 years ago

Rocket

Iowa

Verified

Works perfect with power steering box.

Would Recommend

probably would buy again

4.0

7 years ago

Fireman 57

Missouri

Verified

350 chevy crate motor in a 57 chevy 210.

Would Recommend

yes

5.0

7 years ago

big boy

29067 s.c.

Verified

work just like they were to suppose to and I like the look and they are high enough to not have them dragging in low places. thank

Would Recommend

Load More Reviews

Showing 10 of 17 reviews

Questions & Answers

7 Questions • 8 Answers

Sort Questions

i am swapping a 235 6 for a 383 stroker in a 57 sedan delivery.... I will be using the 3/4 forward motor mounts.. Will these headers still work?

by ron

• 8 years ago

2 answers

View Answers

Will these Headers (930C7) work with 500 Series, direct replacement box for the 605 Box ? I have a 1957 Chevy with a 350 crate engine 330HP HO with iron vortec heads (19210008) with side motor mounts? I saw earlier question from customer thinking you knew further at this time. Thanks Gerald

by Gerald

• 9 years ago

1 answer

View Answer

will it fit with the 500 series box i have a 55 chevy with 74 350 motor side mounts motor 500 series gear box, all steering is stock tie rods ect ect will these headers fit my car thanks

by schmidty

• 13 years ago

1 answer

View Answer

Do these headers curve closer to the block, like the block huggers?

by billy

• 14 years ago

1 answer

View Answer

what modifications are needed to the standard clutch linkage? Angle plug heads????

by Nomad

• 15 years ago

1 answer

View Answer

WILL THESE WORK ON RACK&PINION ?

by 55SAC

• 15 years ago

1 answer

View Answer

these fit angle plug heads ?

• 15 years ago

1 answer

View Answer

7 of 7 questions shown
