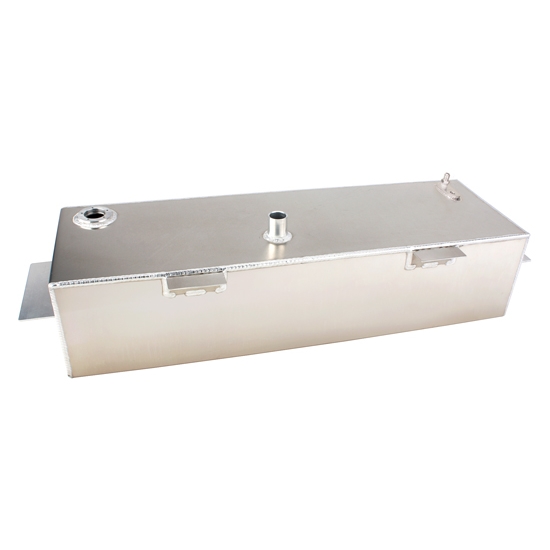

1947-53 Chevy Pickup Under Box Aluminum Fuel Tank
1947-53 Chevy Pickup Under Box Aluminum Fuel Tank

1947-53 Chevy Pickup Under Box Aluminum Fuel Tank

47-53 GMC, 47-53 Chevy, Custom Replacement Fuel Tank Style, Carbureted Fuel System Type

13 Reviews | 20 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
1947-53 Chevy Pickup Under Box Aluminum Fuel Tank
1947-53 Chevy Pickup Under Box Aluminum Fuel Tank
Zoomed In Image
Part # 91076047
$399.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Fuel Tank Style:
Custom Replacement
Fuel System Type:
Carbureted
Capacity:
17 gallons
Material Type:
Aluminum
Finish:
Natural
Color:
Natural
Sending Unit Included:
No
Fuel Pump Included:
No
Tank Straps Included:
No
Hardware Included:
No
Overall Length:
38"
Overall Width:
12"
Overall Height:
8.5"
Material Thickness:
0.09"
Outlet Fitting:
-6 AN Male
MFG. Part #:
91076047
Sold in Quantity:
Each
Notes:
Overall Height, Width, and Lengths listed are tank only dimensions.

Info

These 17 gallon aluminum fuel tanks are designed to be mounted under your 1947-53 Chevy pick-up box. The 1-1/2" filler neck will require a remote filler neck or fuel filler door in the box floor. They DO NOT accept the original truck fuel sending unit, but do accept the common sending unit provided with aftermarket gauge sets.  Therefore consideration is needed when choosing the fuel gauge configuration when purchasing.

Measures 38" x 12" x 8-1/2".  The actual tank is 38" wide, the mounting tabs are 3" on each side of the tank.  The total width of this tank is 44" with the mounting tabs.

  • 1/4" female NPT thread for vent hose / fitting (we suggest # 458-400
  • Male AN# 6 fitting affixed to a pick-up tube threaded into tank with 3/8" NPT threads
  • sender has 10/24th thread count

Note: The pickup tubes are sealed into the tank to prevent leaks and removal will damage both the threads on the pickup tube as well as the tank fitting.

Notes

Please note that the pickup tube when installed into the tank is bonded in place and is not able to be removed from the tank.  If the pick up tube is removed, damage to the tank and pickup tube threads will occur.

Pick-up tube is AN6 with 1/4" NPT Vent Hose. There are five hole that are 10-24 for the sending unit.

Specs

Mounting brackets are 4" down from top and 4-1/2" up from bottom of tank and 10" wide.

Outside bracket to outside bracket is 44"

Fill spout is 1-1/2" tall x 1-1/2" OD.

Some parts are not legal for use in California or other states with similar laws/regulations
