#8351700764

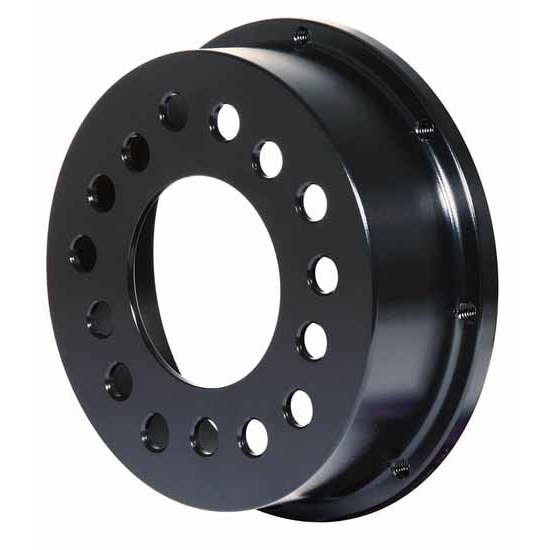

Wilwood 170-0764 Rear Brake Drag Hat, 1.41 Inch Offset, Multi-5 Lug
- Specially manufactured from premium grade aluminum alloys that offer high strength and low weight
- Features a black EDP coating for added corrosion resistance
- Outside diameter measures 6.14" and has a 3.06" inside diameter
$111.10
/each
Factory Shipped
$119.99
Save $8.89
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 1.41" Offset, 6.14" Outside Diameter
- Specially manufactured from premium grade aluminum alloys that offer high strength and low weight
- Features a black EDP coating for added corrosion resistance
- Outside diameter measures 6.14" and has a 3.06" inside diameter
- Rotor hat bolt pattern is 8 x 7.00" and weighs a total of 2 lbs.
Key Specs
| MFG. Part # | 170-0764 |
| Outside Diameter | 6.14" |
| Inside Diameter | 3.06" |
| Bolt Pattern | Multi: 5 on 5" | 4.75" | 4.50" |
| Rotor Hat Bolt Pattern | 8 x 7.00" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 170-0764 Details
Wilwood 170-0764 Details
Willwood brake hats have a long standing reputation for fit, performance, and durability. Manufactured from premium grade aluminum alloys offering high strength and low weight.
Charts

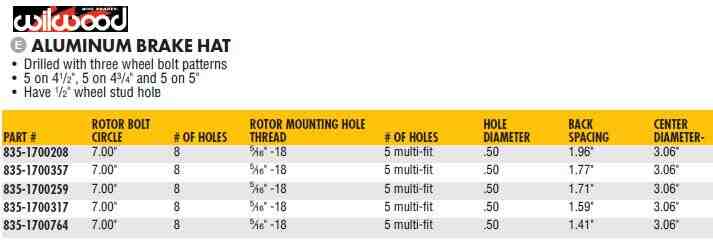

Wilwood Brake Hat Chart (JPG)
Guides & Documents
Wilwood 170-0764 Specifications
Wilwood 170-0764 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 170-0764 |
| Brand | Wilwood |
| Outside Diameter | 6.14" |
| Inside Diameter | 3.06" |
| Bolt Pattern | Multi: 5 on 5" | 4.75" | 4.50" |
| Rotor Hat Bolt Pattern | 8 x 7.00" |
| Weight | 2.00 lbs. |
| Mount Hole Size | 5/16-18 |
| Material Type | Aluminum |
| Finish | EDP Coated |
| Color | Black |
| GENERAL | |
| Offset | 1.41" |
| Internal Clearance | 6.14" |
| Center Hole ID | 3.06" |
| Hat Mount Style | Fixed Mount |
| Hat Mount Hole Type | Threaded |
| Face Thickness | 0.50" |
| Sold in Quantity | Each |
| GTIN Code | 889545041293 |
