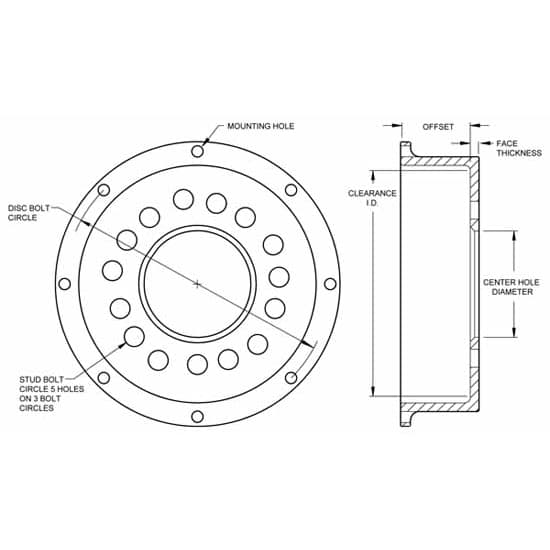

Wilwood 170-0259 Rear Brake Drag Hat, 1.71 Inch Offset, Multi-5 Lug
Wilwood 170-0259 Rear Brake Drag Hat, 1.71 Inch Offset, Multi-5 Lug

Wilwood 170-0259 Rear Brake Drag Hat, 1.71 Inch Offset, Multi-5 Lug

Universal Fit, 1.71" Offset, 6.14" Outside Diameter, 3.06" Inside Diameter, 1.50 lbs. Weight

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 170-0259 Rear Brake Drag Hat, 1.71 Inch Offset, Multi-5 Lug
Wilwood 170-0259 Rear Brake Drag Hat, 1.71 Inch Offset, Multi-5 Lug
X
Zoomed In Image
Part # 8351700259
Save 7%
$87.99
$94.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

MFG. Part #:
170-0259
Offset:
1.71"
Outside Diameter:
6.14"
Inside Diameter:
3.06"
Internal Clearance:
6.14"
Center Hole ID:
3.06"
Bolt Pattern:
Multi: 5 on 5" | 4.75" | 4.50"
Rotor Hat Bolt Pattern:
8 x 7.00"
Weight:
1.50 lbs.
Material Type:
Aluminum
Finish:
EDP Coated
Sold in Quantity:
Each
Hat Mount Style:
Fixed Mount
Hat Mount Hole Type:
Threaded
Hat Bolt Circle 2:
5 x 4.75
Hat Bolt Circle 3:
5 x 5.00
Hat Bolt Circle 1:
5 x 4.50
Mount Hole Size:
5/16-18"
Face Thickness:
0.25"
Stud Diameter:
0.52"
Stud Diameter 2:
0.52"
Stud Diameter 3:
0.52"
GTIN Code:
889545041248
Color:
Black

Info

Willwood brake hats have a long standing reputation for fit, performance, and durability. Manufactured from premium grade aluminum alloys offering high strength and low weight.

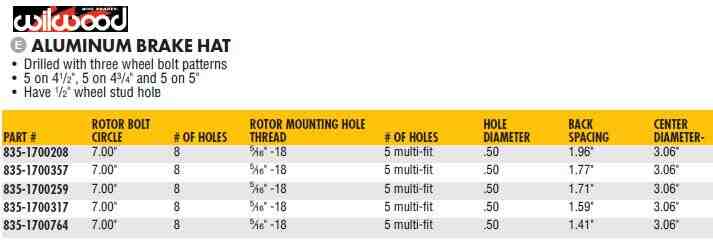

Wilwood Brake Hat Chart (Link)

Some parts are not legal for use in California or other states with similar laws/regulations
