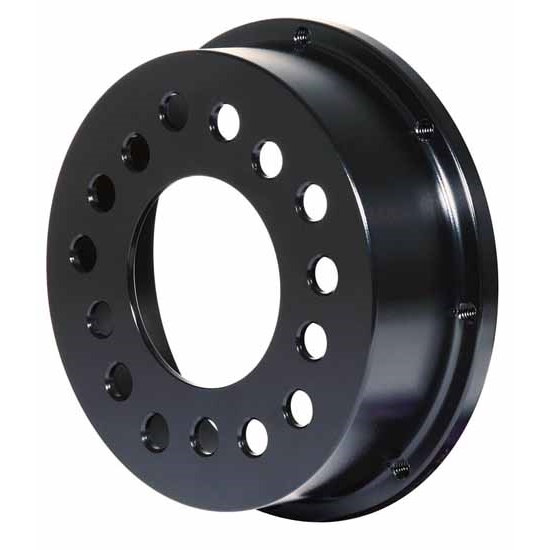

Wilwood 170-0317 Rear Brake Drag Hat, 1.59 Inch Offset, Multi-5 Lug
Wilwood 170-0317 Rear Brake Drag Hat, 1.59 Inch Offset, Multi-5 Lug

Wilwood 170-0317 Rear Brake Drag Hat, 1.59 Inch Offset, Multi-5 Lug

Universal Fit, 1.59" Offset, 6.14" Outside Diameter, 3.06" Inside Diameter, 1.50 lbs. Weight

1 Review | 1 Answered Question
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Limited Qty
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 170-0317 Rear Brake Drag Hat, 1.59 Inch Offset, Multi-5 Lug
Wilwood 170-0317 Rear Brake Drag Hat, 1.59 Inch Offset, Multi-5 Lug
Wilwood 170-0317 Rear Brake Drag Hat, 1.59 Inch Offset, Multi-5 Lug
Wilwood 170-0317 Rear Brake Drag Hat, 1.59 Inch Offset, Multi-5 Lug
Wilwood 170-0317 Rear Brake Drag Hat, 1.59 Inch Offset, Multi-5 Lug
Wilwood 170-0317 Rear Brake Drag Hat, 1.59 Inch Offset, Multi-5 Lug
X
Wilwood 170-0317 Rear Brake Drag Hat, 1.59 Inch Offset, Multi-5 Lug
Wilwood 170-0317 Rear Brake Drag Hat, 1.59 Inch Offset, Multi-5 Lug
Wilwood 170-0317 Rear Brake Drag Hat, 1.59 Inch Offset, Multi-5 Lug
Wilwood 170-0317 Rear Brake Drag Hat, 1.59 Inch Offset, Multi-5 Lug
Zoomed In Image
Part # 8351700317
Save 7%
$87.45
$94.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Rotor hats are manufactured from premium grade aluminum alloys that offer high strength and low weight
  • Has a 5 on 5"/4.75"/4.50" bolt pattern
  • Mount holes are threaded and featured a fixed-style mount
  • A black EDP coated finish adds and extra layer of protection

Details

MFG. Part #:
170-0317
Offset:
1.59"
Outside Diameter:
6.14"
Inside Diameter:
3.06"
Internal Clearance:
6.14"
Center Hole ID:
3.06"
Bolt Pattern:
Multi: 5 on 5" | 4.75" | 4.50"
Rotor Hat Bolt Pattern:
8 x 7.00"
Weight:
1.50 lbs.
Material Type:
Aluminum
Finish:
EDP Coated
Sold in Quantity:
Each
Hat Mount Style:
Fixed Mount
Hat Mount Hole Type:
Threaded
Hat Bolt Circle 2:
5 x 4.75
Hat Bolt Circle 3:
5 x 5.00
Hat Bolt Circle 1:
5 x 4.50
Mount Hole Size:
5/16-18"
Face Thickness:
0.25"
Stud Diameter:
0.52"
Stud Diameter 2:
0.52"
Stud Diameter 3:
0.52"
GTIN Code:
889545041255
Color:
Black

Info

Willwood brake hats have a long standing reputation for fit, performance, and durability. Manufactured from premium grade aluminum alloys offering high strength and low weight.

Wilwood Brake Hat Chart (Link)
