Wilwood 140-13476-R FDL-M Front Brake Kit, 1965-69 Mustang, Disc/Drum

$110 Off

#83514013476R

Wilwood 140-13476-R FDL-M Front Brake Kit, 1965-69 Mustang, Disc/Drum

Name: Wilwood 140-13476-R FDL-M Front Brake Kit, 1965-69 Mustang, Disc/Drum
Brand: Wilwood
SKU: 83514013476R
Price: 918.14 USD
Availability: InStock

Write a Review

1 Question

Rotor / Caliper Type:

Undrilled / Red

Undrilled Drilled Drilled / Red

$918.14

/each

Factory Shipped

$1,028.31

Save $110.17

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11.29 Inch Rotor Diameter, Red

See more details

Key Specs

MFG. Part #	140-13476-R
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	11.29 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-13476-R Details

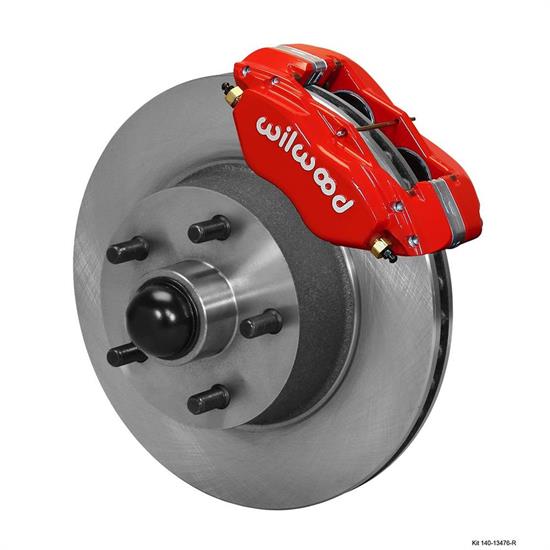

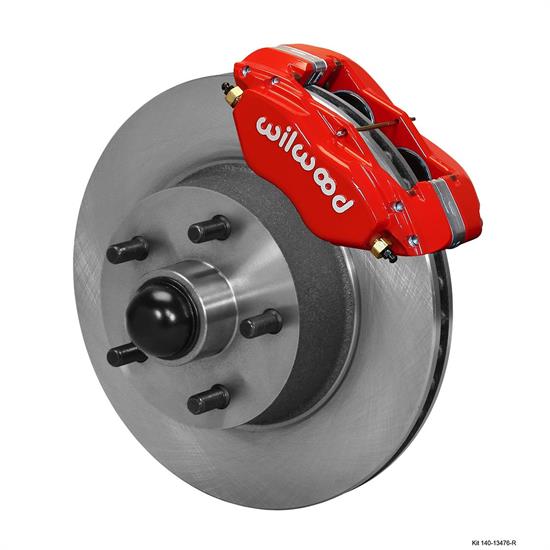

Wilwood's Classic Series front disc brake kits for 1965 to 1969 Ford Mustangs offer disc brake upgrade solutions for OEM Drum or Disc spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.30" diameter x 0.94" thick one-piece rotors. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14" OEM wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware, flex lines and detailed installation instructions.

Charts

Installation Instructions (PDF)

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514013476R)

Everything You Need to Know About Converting Drum Brakes to Disc

Wilwood 140-13476-R Specifications

KEY SPECS
MFG. Part #	140-13476-R
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	11.29 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	14 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Plain Face
Spindle Type	Factory Disc & Drum Spindles
Front Rotor Included	Yes
Front Rotor Diameter	11.30 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Red
Bolt Pattern	5 on 4.5"
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545020496
Rotor Thickness	0.94"
Mount Type	Lug
OE Hub Offset	0"
Total Piston Area	4.8 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Natural
Rotor Material Type	Iron
Bedded	No
Brake Lines Included	Yes
Caliper Color	Red
Caliper Material Type	Forged Aluminum

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

Does this come in black

by Pony

• 6 years ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1966-1969 Ford Fairlane

1965-1970 Ford Falcon

1970 Ford Maverick

1965-1970 Ford Mustang

1965-1969 Ford Ranchero

1969 Ford Torino

1965-1969 Mercury Comet

1967-1969 Mercury Cougar

1969 Mercury Cyclone

1969 Mercury Montego
