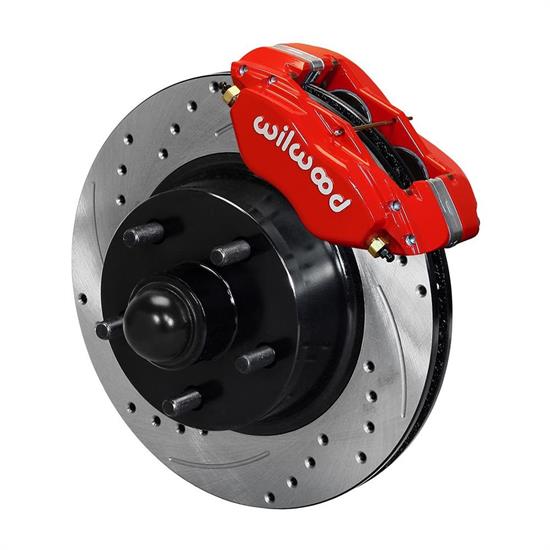

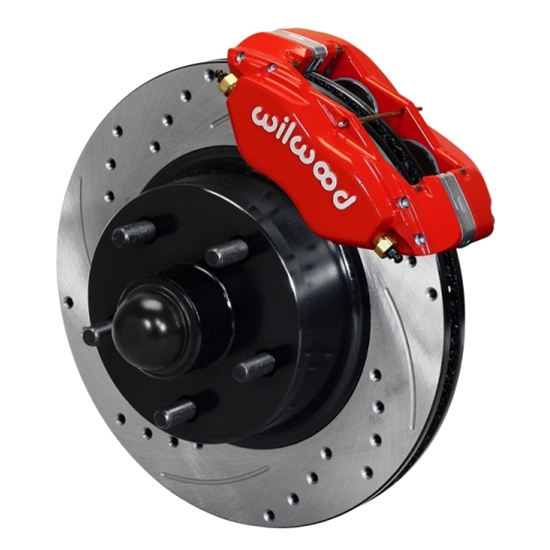

Wilwood 140-13476-DR Classic Series Dynalite Front Disc Brake Kit 11 In
Wilwood 140-13476-DR Classic Series Dynalite Front Disc Brake Kit 11 In

Wilwood 140-13476-DR Classic Series Dynalite Front Disc Brake Kit 11 In

Front Position, 5 on 4.5" Bolt Pattern, 11.30 Inch Rotor Diameter, Vented Rotor Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13476-DR Classic Series Dynalite Front Disc Brake Kit 11 In
Wilwood 140-13476-DR Classic Series Dynalite Front Disc Brake Kit 11 In
Zoomed In Image
We estimate this item will ship on or before July 3rd.
Part # 83514013476DR
$764.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Front
Bolt Pattern:
5 on 4.5"
Rotor Diameter:
11.30 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
MFG. Part #:
140-13476-DR
GTIN Code:
889545020489

Info

Wilwood's Classic Series front disc brake kits for 1965 to 1969 Ford Mustangs offer disc brake upgrade solutions for OEM Drum or Disc spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.30" diameter x 0.94” thick one-piece rotors. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14" OEM wheels.

  • Spindle Type: Factory Drum Spindle, Factory Disc Spindle
  • Mount Type: Lug
  • Wheel Diameter: 14 Inches
  • Caliper: 120-13529-RD
    • Type: Forged Dynalite-M
    • Finish: Red Powder Coated
    • Piston Count: 4
    • Piston Type: Stainless
    • Mount Type: Lug
    • Brake Pad Compound: BP-10
  • Rotor: 160-13483-BK, 160-13482-BK
    • Type: 1 Pc Hub and Rotor
    • Style: SRP Drilled and Slotted
    • Surface Finish: Black Electro Coated
    • Material: Iron
    • Diameter: 11.3"
    • Width: .94"
    • Vane Count: Vented
    • Design Type: SRP-BLK

Assembly Instructions (PDF)

Wheel Clearance Diagram (PDF)

Note: Brake Kits are designed to fit OE Factory Spindles. Contact Speedway Motors if you are not using a factory spindle.

Vehicle Applications:

  •  Fairlane 1966-1969 Disc Brake Spindle
  •  Ford Fairlane 1966-1969 Drum Brake Front Spindle
  •  Ford Falcon 1967-1969 Disc Brake Spindle
  •  Ford Falcon 1965-1966 Disc Brake V-8 Spindle Only
  •  Ford Falcon 1967-1969 Drum Brake Front Spindle
  •  Ford Falcon 1970 Drum Brake Front thru 8/24/69
  •  Ford Falcon 1965-1966 Drum Brake V-8 Spindle Only
  •  Ford Maverick 1970 Drum Brake Front thru 8/24/69
  •  Ford Mustang 1970 Disc Brake GT350 & 500 only
  •  Ford Mustang 1967-1969 Disc Brake Spindle
  •  Ford Mustang 1965-1966 Disc Brake V-8 Spindle Only
  •  Ford Mustang 1967-1969 Drum Brake Front Spindle
  •  Ford Mustang 1965-1966 Drum Brake V-8 Spindle Only
  •  Ford Ranchero 1966-1969 Disc Brake Spindle
  •  Ford Ranchero 1965 Disc Brake V-8 Spindle Only
  •  Ford Ranchero 1966-1969 Drum Brake Front Spindle
  •  Ford Ranchero 1965 Drum Brake V-8 Spindle Only
  •  Ford Torino 1969 Disc Brake Spindle
  •  Ford Torino 1969 Drum Brake Front Spindle
  •  Mercury Comet 1967-1969 Disc Brake Spindle
  •  Mercury Comet 1965-1966 Disc Brake V-8 Spindle Only
  •  Mercury Comet 1967-1969 Drum Brake Front Spindle
  •  Mercury Comet 1965-1966 Drum Brake V-8 Spindle Only
  •  Mercury Cougar 1967-1969 Disc Brake Spindle
  •  Mercury Cougar 1967-1969 Drum Brake Front Spindle
  •  Mercury Cyclone 1969 Disc Brake Spindle
  •  Mercury Cyclone 1969 Drum Brake Front Spindle
  •  Mercury Montego 1969 Disc Brake Spindle
  •  Mercury Montego 1969 Drum Brake Front Spindle





Some parts are not legal for use in California or other states with similar laws/regulations
