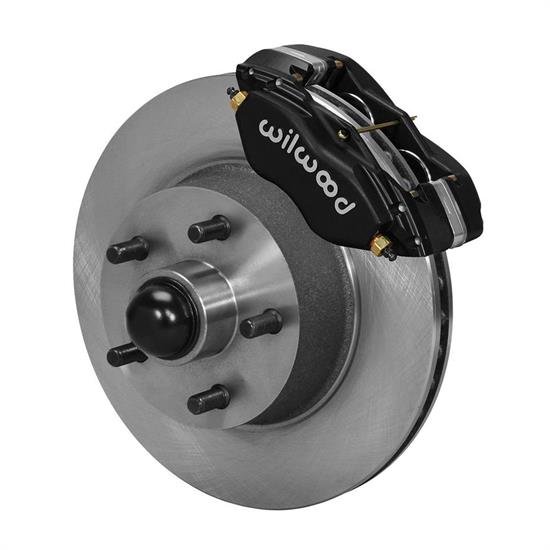

Wilwood 140-13476 FDL-M 11.30 Inch Front Brake Kit, 1965-69 Mustang
3 Reviews
|
3 Questions
- Specifically designed to fit the 1965-1969 Ford Mustang
- Rotor has a diameter of 11.30" and is designed to clear rims 14"-up
- Four piston calipers have a Type III gray anodized finish for improved looks and added protection
See More
$740.18
each
In Stock
Order soon, only 1 left in stock!
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, 5 on 4.5" Bolt Pattern, Anodized, Gray
- Specifically designed to fit the 1965-1969 Ford Mustang
- Rotor has a diameter of 11.30" and is designed to clear rims 14"-up
- Four piston calipers have a Type III gray anodized finish for improved looks and added protection
- Can be used with either manual or power boost master cylinders
- Will fit the OEM disc and drum spindles
See more details
Key Specs
Position | Front |
Bolt Pattern | 5 on 4.5" |
Rotor Diameter | 11.29 Inch |
Rotor Type | Vented |
Caliper Pistons | Four |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-13476 Details
Wilwood 140-13476 Details
Wilwood's Classic Series front disc brake kits for 1965 to 1969 Ford Mustangs offer disc brake upgrade solutions for OEM Drum or Disc spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.30" diameter x 0.94" thick one-piece rotors. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14" OEM wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware, flex lines and detailed installation instructions.
Charts
Installation Instructions (PDF)
Wheel Clearance Diagram (JPG)
Guides & Documents
Wilwood 140-13476 Specifications
Wilwood 140-13476 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 140-13476 |
Brand | Wilwood |
Position | Front |
Bolt Pattern | 5 on 4.5" |
Rotor Diameter | 11.29 Inch |
Rotor Type | Vented |
Caliper Pistons | Four |
Caliper Finish | Anodized |
Color | Gray |
Parking Brake Provision | No |
Minimum Recommended Wheel Diameter | 14 Inch |
Rotor Shape | Round |
Hardware Included | Yes |
Spindle Type | Factory Disc & Drum Spindles |
Rotor Style | Plain Face |
Front Rotor Included | Yes |
Front Rotor Diameter | 11.30 Inch |
Front Caliper Included | Yes |
Front Caliper Piston Quantity | 4 |
Front Caliper Finish | Anodized |
Rear Caliper Included | No |
Front Spindles Included | No |
Master Cylinder Included | No |
Brake Booster Included | No |
Brake Hoses Included | Yes |
Rear Rotor Included | No |
GENERAL | |
Rotor Thickness | 0.94" |
Sold in Quantity | Kit |
Mount Type | Lug |
OE Hub Offset | 0" |
Total Piston Area | 4.80 sq. in. |
Piston Type | Stainless |
Pad Area | 6.36 sq. in. |
Pad Volume | 2.1 cu. in. |
Brake Pad Compound | BP-10 |
Caliper Type | Lug |
Rotor Finish | Natural |
Rotor Material Type | Iron |
Bedded | No |
GTIN Code | 889545020465 |
Brake Lines Included | Yes |
Caliper Color | Gray |
Caliper Material Type | Forged Aluminum |
